Bee Valve Inc. products

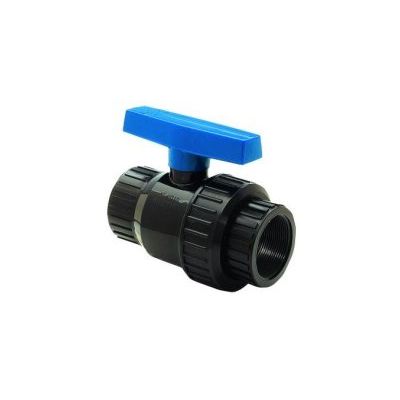

Precision molded in glass-reinforced polypropylene for stability, strength and toughness. Machined surfaces for easy on-off operation. Self-aligning ball. Viton O-ring. Excellent chemical resistance. Poly-Tef seats. Can be replaced or repaired in the field in-line (1/2` - 3` SP). Stainless steel hardware is available on all ball valves. Contact sales office for specific part numbers.

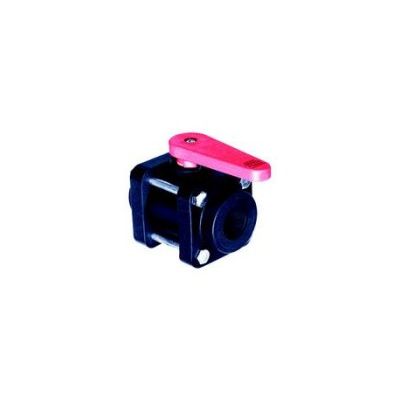

Compact size Stainless steel hardware. Four-bolt design. Lightweight. Glass-reinforced polypropylene. Four design options. All Teflon seats. Viton O-Rings. Operating pressure: 125 psi max @ 70 deg F; 70 psi max @ 150 deg F.

Manufactured from polypropylene. EPDM O-rings (Viton kits available). Teflon seats. All valves 100% pressure tested. Operating Pressure: 125 psi max @ 70 deg F.

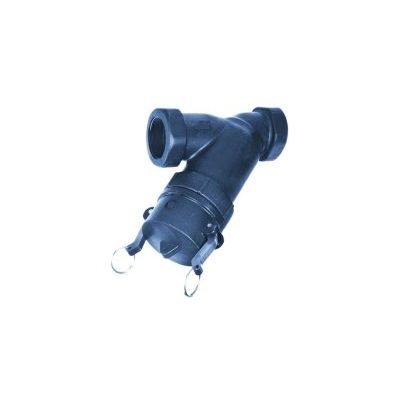

Heavy duty glass-reinforced polypropylene. 3 ? cam lever cap for easy cleaning. 316 stainless steel screen. 8 ? long full-flow screen. 14 mesh screen standard. Screens available in 6,14, 30, 40, and 80 mesh. Viton O-ring. EPDM gaskets standard. Operating pressure: 100 psi max @ 70 deg F.

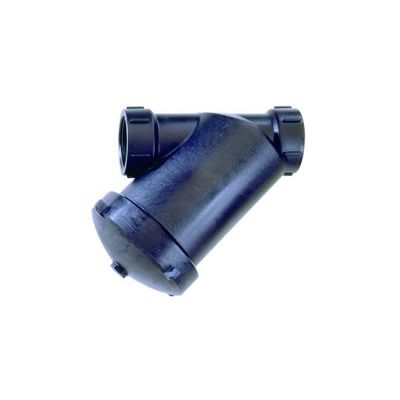

Heavy duty, glass-reinforced polypropylene. Extra large 304 stainless steel screens-reinforced with polypropylene. 20 mesh screen standard. Screens available in 6, 12, 20, 40 and 80 mesh. EPDM gaskets standard. 1/2 ? drain plug in bottom of cap. Operating pressure: 75 psi max @ 70 deg F.

Strong, lightweight. Temperature range under normal conditions -30 deg F to 200 deg F. Various operating pressures given are at 70 deg F. However, maximum listed operating pressure must be adjusted to reflect hose manufacturers recommended temperatures and pressures.

Precision molded. Glass-reinforced polypropylene. Interchangeable with standard cam lever couplings of all types. Operating Pressure of 100 psi max  70° F.

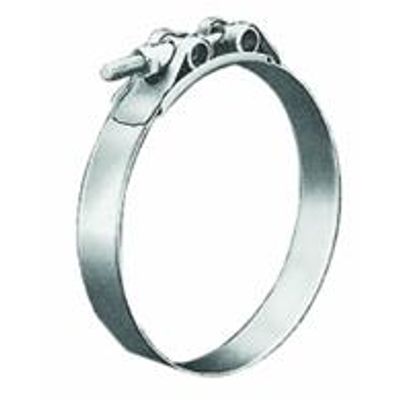

Manufactured from 304 stainless steel. Strong, reliable positive connections. Ideal for high torque applications. 360° Sealing surface. Stainless steel bolt with silver plated nut to prevent seizing. Nylon insert lock-nut feature. Band width 3/4”.

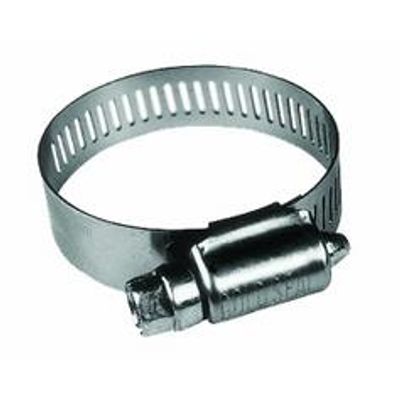

SAE type “F” clamp. 201 Stainless steel band and housing. Full range of sizes, contact sales office for other sizes not listed below. Screws available in 410 stainless steel or zinc plated carbon steel. Suitable for most applications. Hex head/slotted screws.

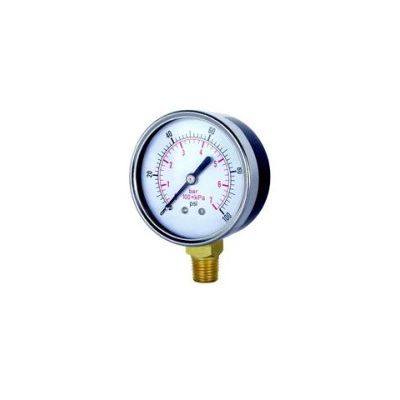

Dual scale. Bottom and back mount styles available. Steel case, black paint Dry filled. Pressure and vacuum available. Brass connection. Copper alloy wetted parts. Designed for use with gas, oil, water, or any medium not corrosive to brass or bronze.
