Beijing Lcocean Science and Technology Co. Ltd. products

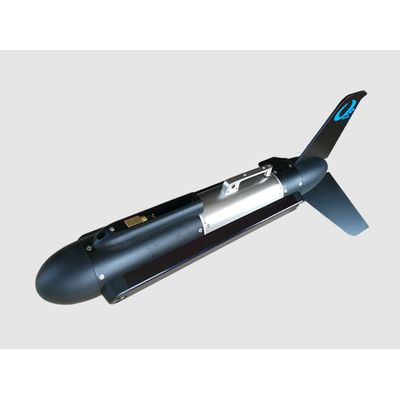

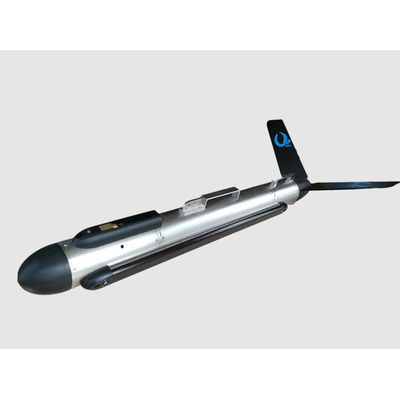

Shark-S150D side scan sonar is versatile multi-purpose sonar which can be applied to shallow and deep water. It contains dual simultaneous frequency operation of 150/450 kHz and advanced CHIRP signal processing technology , which provide extraordinary long range, high resolution images. A strong stainless steel towfish, a high strength Kevlar cable, a splashproof deck unit and the OTech software are included in the sonar system. The system is designed with ultra-low power consumption and can be powered with  AC or DC power. The sonar is reliable anddurable, and can be easily operated by one person. OTechsoftware is equipped with the function of sonar image display, navigation, datarecording and replay, target management and output and sensor information multi-window display. It can output the data with standard XTF format which can be processed with the third party processing software, and also can be customized according to the different requirements.

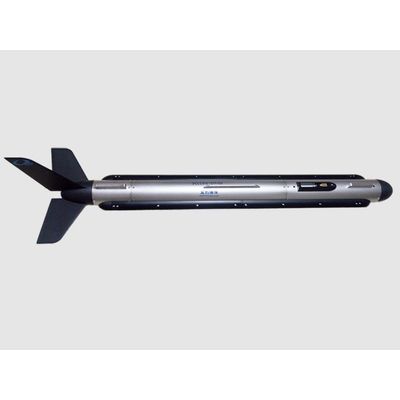

Shark-S450D side scan sonar is a versatile multi-purpose sonar, providing an ideal combination of range and resolution. It is designed with a dual simultaneous frequency operation of  450/900 kHz and advanced digital CHIRP signal processing technology , which is optimized to provide 0.2° narrow horizontal beam width. It is ideally suited for customers that require long range  and ultra high resolution images in order to detect very small targets. A strong stainless steel towfish, a high strength Kevlar cable, a splashproof deck unit and the OTech software are included in the sonar system. The system is designed with ultra-low power consumption and can be powered with  AC or DC power. The sonar is reliable and durable, and can be easily operated by one person.

M300 is a high accuracy and high resolution multibeam systems, the use of amplitude and phase detection technology, to achieve a high coverage of 130 degrees, number of beams up to 512. The new sonar interface technology improves the time synchronization accuracy of all the auxiliary sensors, realizes the synchronization of the millisecond level, and improves the accuracy of the system. The Sonar consists of  compact  projector, receiver modules and inboard Sonar Interface Module Third party auxiliary sensors are connected to the Sonar Interface Module.The sonar data is tagged with GPS time. AC power supply, battery power supply can be used for ultralow power consumption design. The mechanical structure is compact and portable, easy to carry, reliable and durable.
