Beijing Superior Drilling Equipment Co.,Ltd products

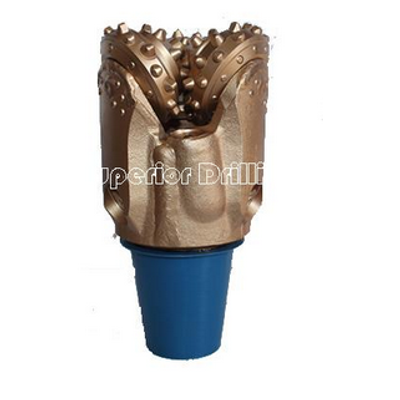

Cutting Structure: Offset crested scoop compacts in inner row, wedge compacts in outer row and inequable spaced compacts arrangement. The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit. Gauge Structure: Multiple gouge protection with gauge trimmers on the heel of cone, tungsten carbides inserts and hard-facing on the shirttail increases gauge holding capability and bearing life.

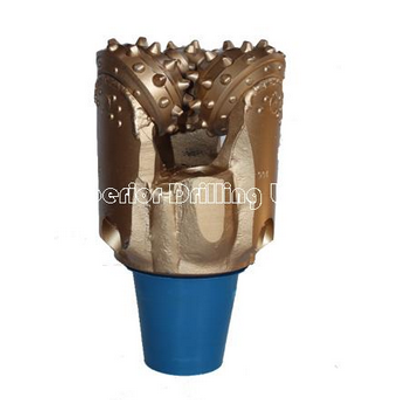

Cutting Structure: Offset crested scoop compacts in inner row, wedge compacts in outer row and inequable spaced compacts arrangement. The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit. Gauge Structure: Multiple gouge protection with gauge trimmers on the heel of cone, tungsten carbides inserts and hard-facing on the shirttail increases gauge holding capability and bearing life.

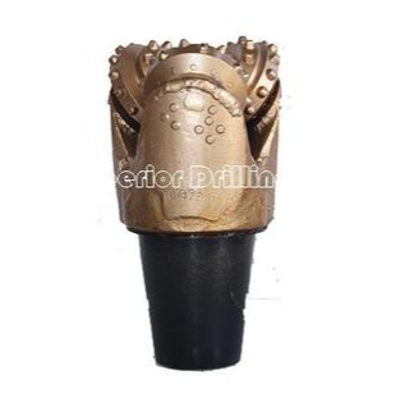

Cutting Structure: Hard faced tooth surface and gage, high cutter exposure and the gage fitted with compacts, the wear-resistance of the teeth is enhanced with premium tungsten carbide hard-facing on the tooth surfaces for the steel tooth bit. Gauge Structure: Multiple gouge protection with gauge trimmers on the heel of cone, tungsten carbides inserts and hard-facing on the shirttail increases gauge holding capability and bearing life.

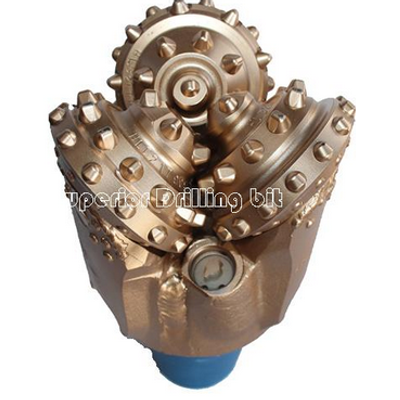

Cutting Structure: Large Dia. Offset crested scoop compacts in inner row, wedge compacts in outer row and inequable spaced compacts arrangement. The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit. Gauge Structure: Multiple gouge protection with gauge trimmers on the heel of cone, tungsten carbides inserts and hard-facing on the shirttail increases gauge holding capability and bearing life.

Offset crested scoop compacts in inner row,wedge compacts in outer row and in-equable spaced compacts arrangement. Thedurability of premium tungsten carbide inserts is improved with new formulasand new techniques for insert bit. Multiple gauge protection with gauge trimmers on the heel of cone . tungsten carbides inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

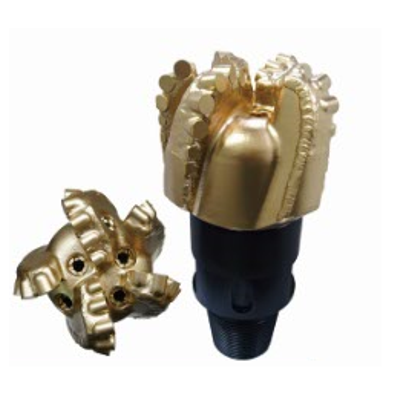

MatrixPDC bit with six blades of parabola crown profile and with medium cutterdensity. Spiralgauge protection design reduces vibration severity. Withinterchangeable screw nozzles. Asymmetricalblades arrangement and special load-balanced cutter arrangement design improvebit stability and therefore higher ROP. Non-planeinterfaced diamond/carbide cutters absorb effectively high stress and minimizecutter fracturing and wearing. Bothtilted and cauterized nozzles design improves bit cleaning and prevents bitballing, thus to improve ROP. Canbe used on rotary or down hole motor drilling. Suitablefor medium to hard formation. HighHIS is recommended.

Size: 8 1/2" FM 1955 IADC: M223. MatrixPDC bit with six blades of parabola crown profile and with medium cutterdensity. Spiralgauge protection design reduces vibration severity. Withinterchangeable screw nozzles. Asymmetricalblades arrangement and special load-balanced cutter arrangement design improvebit stability and therefore higher ROP. Non-planeinterfaced diamond/carbide cutters absorb effectively high stress and minimizecutter fracturing and wearing. Bothtilted and cauterized nozzles design improves bit cleaning and prevents bitballing, thus to improve ROP. Canbe used on rotary or down hole motor drilling. Suitablefor medium to hard formation. HighHIS is recommended.

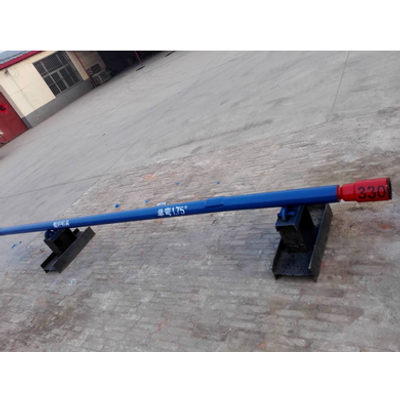

Reaming with motor is prohibited. Slurry is recommended as drilling fluid. Flow rate of pump should not be lower than 600L/M, or the motor cannot be driven, or be locked in drilling process. A new or idle motor should be rotated clockwise at least 2 rounds with a tong before working with a pump. After use, the motor should be cleaned internally. Rotate the drive axle to remove the residual fluid. Drive axle of this motor is lubricated open, hence   fluid leak is tolerated.

Precautions for use: Reaming with motor is prohibited. Slurry is recommended as drilling fluid.  Flow rate of pump should not be lower than 600L/M, or the motor cannot be driven, or be locked in drilling process.  A new or idle motor should be rotated clockwise at least 2 rounds with a tong before working with a pump.  After use, the motor should be cleaned internally. Rotate the drive axle to remove the residual fluid.  Drive axle of this motor is lubricated open, hence fluid leak is tolerated.

Crossover sub is a necessary tool in well drilling and it`  s an important part in drill string.lt is mainly used for conversion and connection between different kinds of drill tools and widely used in oil well, gas well and water well and any other kind of well drilling operations. Depending on your requirements, our company could manufacture any API standard threads, which used between drill pipe, drill collar, kelly bar and so on.
