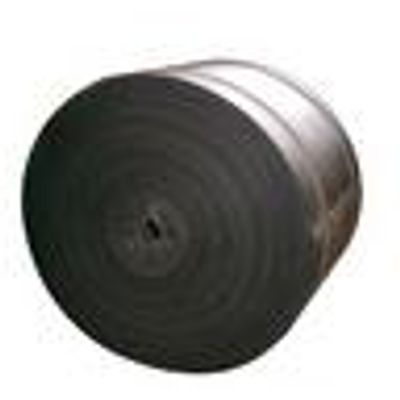

The general fabric conveyor belt is made of EP, NN or Cotton fabric and finished through the processes of calendering, firming and vulcanizing, etc. It is suitable for conveying in normal temperature various non-corrosive pointless lumps, granular or powders such as coal, coke, sand and cement in bulk or packaged. We can offer belts with cover grade in accordance with international standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.

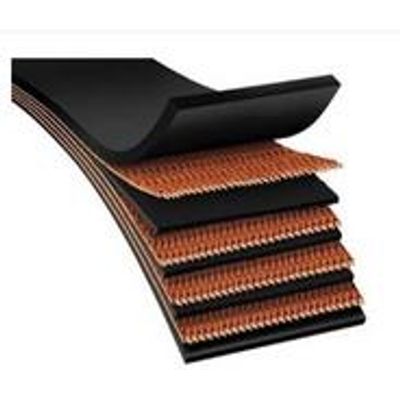

Polyester conveyor belt, also called EP or PN conveyor belt, whose tension resistant body is canvas, is woven by polyester in warp and polyamide in weft. The belt has the characteristics of low elongation in warp and good trough ability in weft, good for water resistance and wet strength, suitable for medium, long distance and heavy-load transportation of materials. Because of high initial modulus of polyester, the belts can choose a relative low safety factor.

The nylon canvas is woven by nylon fabric both in warp and in weft. It is the most widely used fabric in rubber industry, and its outstanding merits are its high abrasion resistance, great tensile strength and good fatigue resistance. Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance and trough ability, high adhesion between plies, splendid flexibility and long working life. Nylon conveyor belts are suitable for medium, long distance and heavy-load transportation of materials, widely used in mining, metallurgical industry and architectural industry, ports, etc.

Cotton canvas is woven by cotton fibers both in warp and in weft. Its elongation is relatively low, and it is good in mechanical fastening and bonding with rubber. Cotton conveyor belt has relatively small deformation under high temperature condition, suitable for short-distance and light-load transportation of materials. Polyester cotton conveyor belt is the upgraded product of cotton conveyor belt, and its tension resistant body is woven by polyester cotton fibers in warp and cotton fibers in weft. Its comprehensive physical and mechanical characteristics are obviously better than those of cotton conveyor belts.  Especially, the belt body is thinner and the belt is lighter, so the belt can save energy and reduce material consumption for users.  It is an ideal selection for medium, short distance and medium-load transportation of materials.

Especially suitable for material conveying at inflammable of underground coal mines. The fabric is high in strength and low in elongation and the light carcass is shock resistant, anti-tear and good in trough ability.

Our company’s conveyor belt for airport use is designed according to the special requirement on security.  The product has excellent anti-static and fire-prevention qualities; it also endures wear and tear and has low noise in operation, suitable for use in security check and luggage transportation in airport.

The wood conveyor belt that TRX produce have the characteristics of low elongation, pending, low noise, stable size, durable, wear-resisting.This kind of belt are used different material, decorative pattern and high strength of the fabric to increase stability and strength.Products can be widely used in plywood, fiberboard, composite board production line and all kinds of woodworking machinery equipment.
