Belach Bioteknik AB products

Stainless steel, in-situ sterilisable bioreactors in 50-1000 L volumes. Designed for pilot or manufacturing processes of biological products. Powerful magnetic coupled stirrer, stainless steel frame system with thermo-system, sterile filters and load cells. Highly advanced regulations for stirrer, level, temperature, DO, pH, redox, pressure, gasflow and feed pumps. Easy integration of 3rd party instruments and equipment. Optional gas mixing station, gas analyzer, turbidity sensor. Several commercial references in Vaccine production, Probiotic starter cultures.

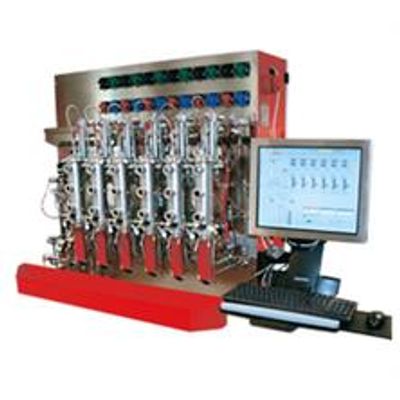

Integrated control of bioreactors, bulk tanks, transfer lines and downstream processing equipment. Automated CIP/SIP processes. Automated waste decontamination stations. Master-Slave operator stations in Windows PC-network architecture ISA S88 compliant, flexible batch management system. FDA 21 CFR Part 11 compliant electronic data handling via MS SQL Server database. Interfacing to ERP or MES systems.

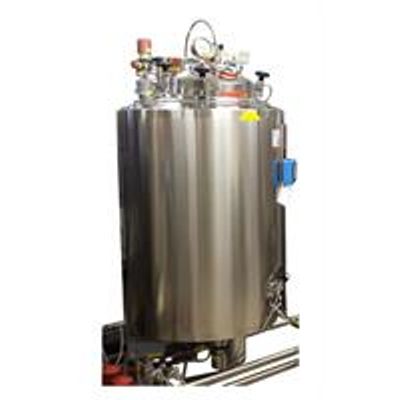

JOSEF EDS is a standalone, automatic decontamination system for BioSafety Laboratory level 1, 2 and 3.

Biological Decontamination, Bacteria Decontamination, Biological Kill Tank; JACK© EDS is a standalone, automatic decontamination system for BioSafety Laboratory level 1, 2 and 3.

Our systems provide fully automated processes. With user friendly touch screen display. Realtime info on all the stages of the decontamination process. The units designs are approved according to European Standard EN 13311-5 and PED.
