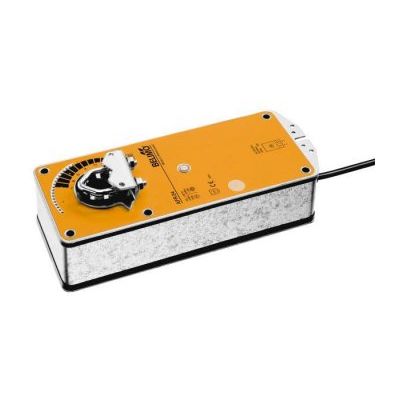

Versatile applications: The AF… spring return actuators are intended for the operation of air dampers that perform safety functions (e.g. frost and smoke protection, hygiene, etc.).

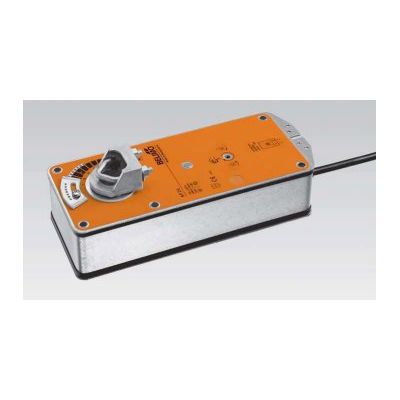

Versatile applications: The AF… spring return actuators are intended for the operation of air dampers that perform safety functions (e.g. frost and smoke protection, hygiene, etc.).

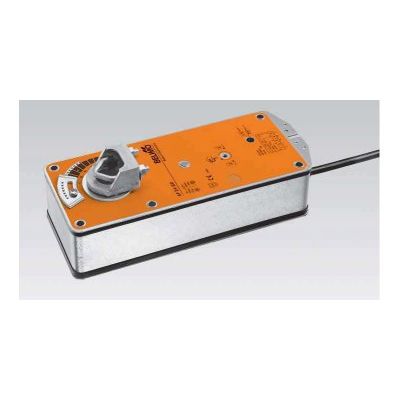

Versatile applications: The AFR… spring return actuators are intended for the operation of air dampers that perform safety functions (e.g. frost and smoke protection, hygiene, etc.).

Versatile applications: For the operation of air dampers that perform safety functions (e. g. frost and smoke protection, hygiene, etc.).

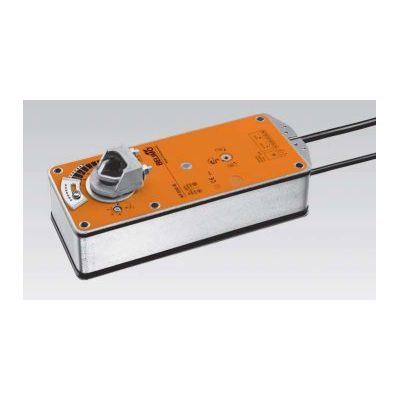

Spring return actuator. 20 Nm, less than 150 s, 95°. AC/DC 24 V, modulating, multifunctional. IP54, Manual override with integrated position stop. Running time spring less than 20 s. Operating range DC 2...10 V, 0...32 V adjustable. Position feedback DC 2...10 V, 0...10 V adjustable. Connection cable PVC 1 m. Spindle driver universal spindle clamp. Direction of rotation selectable.

Introduction :
These notes for project planning serve as aids for the selection and projecting planning of
Belimo valves.
The data, information and limit values listed on the data sheets and in the further notes for
project planning for the respective valves are to be taken into account and/or complied with,
respectively.
Belimo valves are suitable as open-close or control valves in heating, ventilation and air
conditioning systems. It is not permitted to use Belimo valves for applications outside the
specified field of application.
For project planning involving open-close and control valves, it is recommended that sufficient
numbers of shut-off devices be provided for in order to simplify later revisions, e.g. of heat
exchangers.

Introduction

MP stands for Multi Point. The MP-Bus is the Belimo master/slave bus, which allows the connection of up to 8 slaves to a master unit. These slaves are MP/MFT(2)damper actuators, MP/MFT(2)valve actuators and MP-capable VAV-Compact controllers. Advantages of this bus include considerably reduced wiring expenses, a clearer arrangement, substantially higher functionality, as well as cost savings. The chapter MP-Bus Technology gives you more information on MP technology. Common technical terms associated with MP technology are listed in the MP Glossary.

Compact volumetric flow controller with integrated interface for LONWORKS®. When equipped with the FTT-10A transceiver, the VAV-Compact can be linked directly to the LONWORKS® network. The VAV controllers are certified by LONMAR

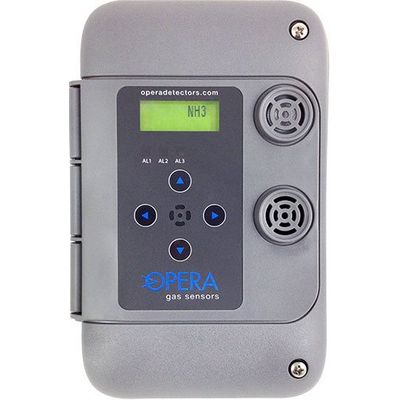

Mechanical rooms, food processing plants, arenas, cold storage facilities. Factory calibrated, electro-chemical type sensor, Plug-and-play replacement sensor modules.
