Bell Flow Systems Ltd. products

Turbine Flow Meters

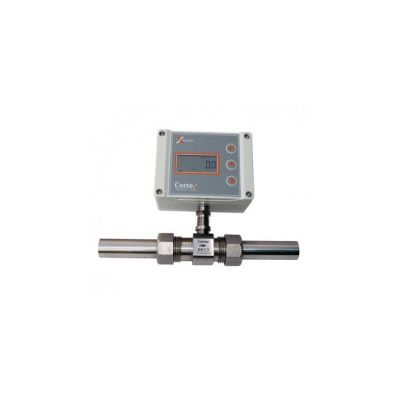

Liquid Flow Turbine Meter

This highly accurate Liquid Flow Turbine meter is constructed from stainless steel and is ideal for the measurement of various low to medium viscosity liquids in a range of different applications. This model is supplied with a square wave pulse output or low voltage coil pulse as standard, with a wide choice of digital flow displays and batch controllers available.The standard low cost digital display is powered by a lithium battery with a long battery life of 4 years, providinga choice of 4-20mA signal, pulsed output and programmable alarms. Internal parts of BLFT turbine meters are simple to replace for easy maintenance. This meter comes with threaded connections, tri-clamp fittings or choice of flanges depending on the options chosen. Each meter is supplied with a multi-point calibration certificate

Liquid Flow Turbine Meter

This highly accurate Liquid Flow Turbine meter is constructed from stainless steel and is ideal for the measurement of various low to medium viscosity liquids in a range of different applications. This model is supplied with a square wave pulse output or low voltage coil pulse as standard, with a wide choice of digital flow displays and batch controllers available.The standard low cost digital display is powered by a lithium battery with a long battery life of 4 years, providinga choice of 4-20mA signal, pulsed output and programmable alarms. Internal parts of BLFT turbine meters are simple to replace for easy maintenance. This meter comes with threaded connections, tri-clamp fittings or choice of flanges depending on the options chosen Each meter is supplied with a multi-point calibration certificate.

Gas Meter & Gas Flow Meters

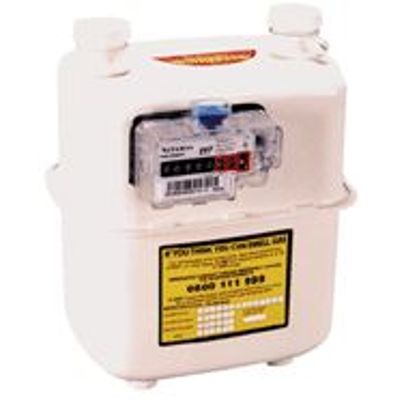

Diaphragm Gas Meter

1` Domestic Diaphragm Gas Meter. Qmax 6 m3/h. Fireproof to EN1359. Transco Standard Domestic Meter. OFGEM Approved. UK Construction / Proven Design. BS746 Connections. 3/4` BSP Adaptor option available. Pulse Output option available. Suitable for metering of: Natural Gas, Town Gas, LPG in Most Domestic application.

Steam Flow Meters

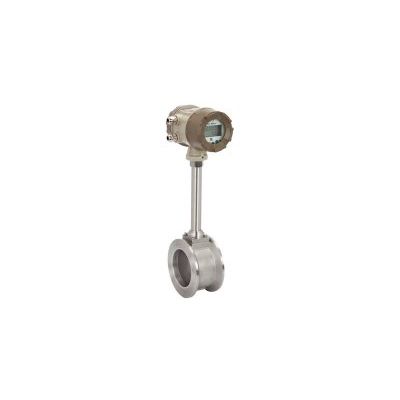

Vortex - Compliant Steam Flow Meter

BFVM series Vortex flow meters are designed for measuring the volume/mass flow of liquids, gases and steam based on the Karman vortex principle. Using an advanced differential algorithm along with signal isolation, buffered shielding and wave form filtering, BFVM series vortex flow meters offer guaranteed accuracy and have the advantages of immunity to vibration and application derived noise.

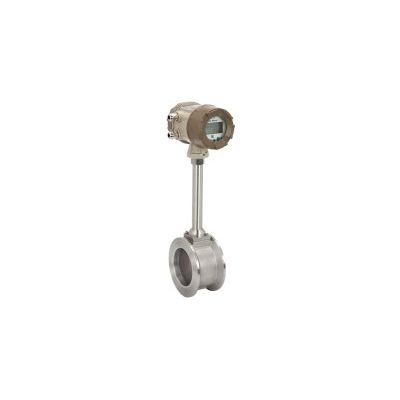

Vortex - Steam Flow Meter

BFVM series Vortex steam flow meters are suitable for measuring the volume/mass flow of liquids, gases and steam based on the Karman vortex principle. Using an advanced differential algorithm along with signal isolation, buffered shielding and wave form filtering, BFVM series vortex flow meters offer guaranteed accuracy and have the advantages of immunity to vibration and application derived noise.

Chemical Flow Meter

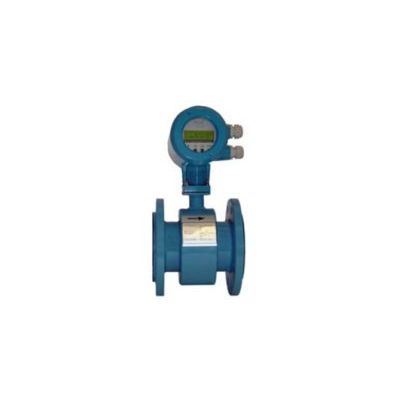

Flanges Mag Flow Meter

The Electromagnetic flow meter Mag910 is programmable meter which can measure, indicate and store flow and total volume data of most conductive liquids. The Mag 910 records both positive and negative flow. There are no moving parts or mechanical components in ths device which allows it to be used for measuring both clean or extremely polluted liquids, even containg a large proportion of solids.. The only limitation is that the device can be used solely with conductive liquids. The Mag 910 is especially suitable for use in the chemical industry, paper industry, water management , waste-water, maintenance etc.Version M910EX the flow meter meets the requirements of standards for equipments intended for use in potentially explosive atmospheres according to directive 94/9/EC. Sensor category is II 3G EEx nA II T5/T6.

Water Meters

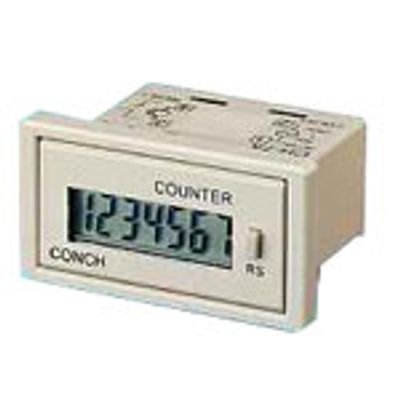

Panel Mount Battery Powered Remote LCD Counter

4 yr Battery Powered LCD Counter. Re-set function button can be disabled at rear. Accepts Pulsed digital signals from flow meters. Remote Panel Mount design or Wall Mount ABS enclosure option

Coriolis Mass Flow Meters - ATEX Certified

Bell Flow - Coriolis Mass Flow Meters - ATEX Certified

Max Flow rate 6 Kg/min (20:1 Turndown). Liquid Accuracy +/- 0.1% (See options). Gas Accuracy +/- 0.5%. Repeatability +/- 0.05%. Tube Material 316 Stainless Steel. 40 Bar Max W.P (Subject to connections). DN15 Flanges PN40 (See options). Process Temp -70 to 160 Deg. C (See Options). Remote Display 24V DC or 85~265V AC, 50/60 Hz. Atmospheric Temp -30 to 60 Deg. C. IP67 Ingress Protection Rated. Cable Length 5m (See options). 4-20mA, pulse ,Modbus RTU RS485 (HART optional).
