BELL S.r.l. products

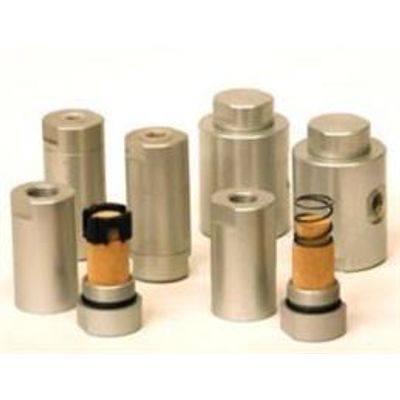

BELL In-line Filters grant a high protection to the most delicate components of an oieodinamic system. Placed in the site under pressure, they keep the particles sucked or produced by the pump up to a size of 10 micron. These filters are normally applied in addition to the standard filters in suction or release, as a last barrier of protection before the entrance in directional valves, flow regulating valves and all those components which require a high grade of absolute filtering. The body is made in a treated aluminium alloy to obtain a minimum dimension and weight. The filtering element, instead, is made in synthered bronze with a conic shape to resist to high pressure without collapsing.

Double-acting cylinders with rod. Possibility of having hardware with spherical or conical pin; elettroricalcati stems, hardened and chrome-plated rod extruded cold. Cylinders extremely versatile and economical, easy to apply, suitable for small and medium power machines. The gaskets may be perfectly sealed with a low coefficient of friction (in order to eliminate stick slip phenomena).
Working pressures up to 180 bar. and temperatures ranging from -30 ° C to +90 ° C.

The HFP pump (Hydraulic Foot Pump) of BELL is made in steel lo be strong, but also cheaper than other types of pump. It is a sturdy pump characterized by a less stress on the lever, ideal for the use with hydraulic tools and/or single acting cylinders which require a small quantity of oil. It does not require air-compressors nor other devices to work, therefore it is practical and easy lo operate. With a maxim relief valve inside, it is safe and avoids higher pressures of oil than the maximum pressure allowed (200bar).
