Bellin S.p.a products

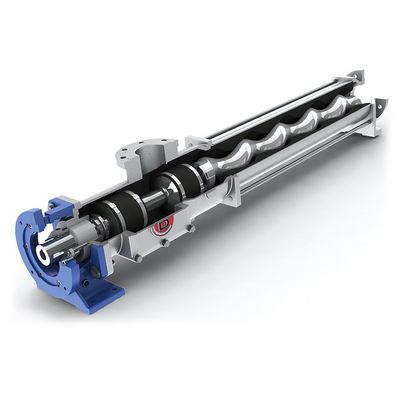

Execution with bearings housing for coupling with any kind of drive through a flexible coupling. Strong construction suitable for heavy duty jobs. Capacity up to 260 m3/h – Pressure up to 30 bar. (Special executions up to 50 bar).

Mono-block execution direct-coupled to the motor. Unit. Compact and economical version to meet the needs of limited space. Capacity up to 110 m3/h – Pressure up to 14 bar.

Execution with hopper and infeed screw to convey high viscous products. Capacity up to 260 m3/h – Pressure up to 24/30 bar.

Execution as type “T”-LT” but with a “bridge breaker” system to transfer products which have the tendency to bridge above the infeed screw (e.g. dewatered sludges from belt press). Capacity up to 260 m3/h – Pressure up to 24/30 bar.

Execution as type “TM”- LTM” with special infeed screw at high efficiency and profile to transfer sludge with high concentrations of solids that do not tend to bridging. Body pump stator side entrance easily removable and washable. Capacity up to 260 m3/h – Pressure up to 24/30 bar.

Small pumps ideals for metering and dosing duties. Compact execution direct-coupled to the motor unit. Capacity up to 3000 l/h – Pressure up to 14 bar.

Execution in stainless steel can be used in the oenological sector in many different ways: for pumping wine-must for simples transfers, for filter replacement-feeding – filling operation etc. Execution with hopper type “LTS” to transfer crushed grapes, grapes, etc. Capacity up to 110 m3/h – Pressure up to 14 bar. (See also Wine and Beverage section).

Pump made of stainless steel, designed to have high hygienic standards. Construction with open joints shaft, free of stagnation points for optimal cleaning. On request, the pump is supplied with special connections for CIP cleaning.

Semi-submersible pumps in vertical execution suitable to transfer high viscous products for increase suction capacity of progressive cavity pump.

Easy maintenance - maintenance and cleaning on site: fast opening of the pump because of the possibility of removal of the front inspection cover without disturbing the pump housing or pipe work. Pump housing can be supplied with hard metal replaceable wearing plates at front and rear. they can be replaced easily on site.Possibility to handle large solids particle up to 25 – 30 mm.
