Bequip Marshall Limited products

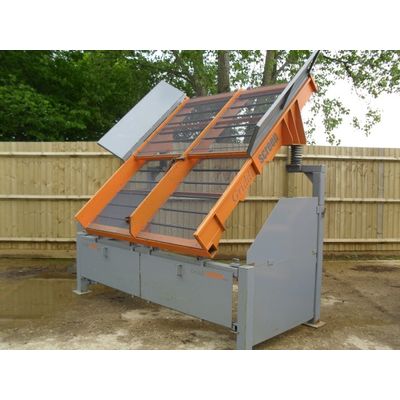

The best cost effective non powered vibrating screen. Griddi-screen is a strong, versatile two product screen, capable of separating a wide range of products or for the removal of fines from a pre-crushed material.

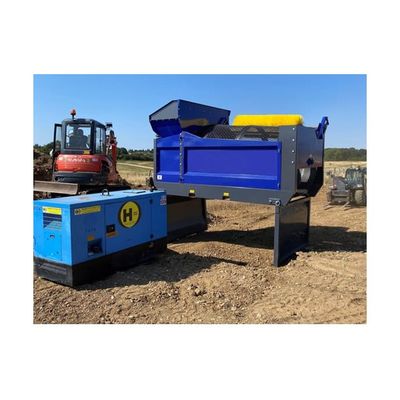

The Easi- Screen, from bequip is a compact mobile two product screen, capable of producing soil fines or clean stone / hardcore up to 40 tonns per hour, depending on mesh size. Powered by a 10hp diesel engine, the easi-screen can be transported by trailer and towed behind a suitable 4x4 or jeep. With 4 retractable legs, the hydraulic rams allow the machine to disengage from the trailer in minutes, and is then ready for work.

This is a strong, lightweight yet compact Trommel screen. Designed for all types of uses from sand and gravel, grain, top soil, glass and metals. Producing 2 products, this screen has an impressive output. The drum is driven through a central shaft. Material is loaded into the hoper via a removable grid to protect the drum. The drum is speed controlled and can be adjusted to suit different materials.

The easi-screen 2:22 has 2 screens decks and a 2m x 2m open fed screen box. This enables the operator to load from the rear or the front. The 2:22 features two external vibratory motors, eliminating drive shafts, pumps, motors, oil tanks and leaky pipes. Maintenance is almost zero. The 2:22 is strong and rugged. Suitable for light demolition work, waste and skip hire applications.

Diesel engine. Option of sub frame or folding doors. Diesel / electric drive or diesel hydraulic (optional). Lifting attachment to lift with forklift - standard.

6ft x 6ft screen box. Double deck. 2.2Kw motor. Mounted over subframe.

Available single and double deck including support frames. Scalping Screens. 14ft x 16ft Double Deck Screen. Front feed pan, Heavy duty bearing assy (oversize). Shown here on Support Frame. 8 x 4 Double Deck Screen. With out of Balance Motors Fitted.

The Easi-Tree anti clogging system is an effective way to clean mesh that continuously `blind` even when self cleaning types have not done the job. The system is manufactured from Polyethylene, consisting of a tie bar to which tree shape components are attached. As the screen motion increases, the Easi-Tree system lifts and then makes contact with the mesh, keeping the material `active`. Secured with one retaining bolt attached to the upper deck, the Easi-Tree works particularly well when screening wet and sticky materials, such as lime stone fines, Agglime and where there is a high % of fines.

Normal interwoven mesh has less flexibility over self cleaning mesh, this along with wire thickness encourages ‘pegging’ ‘blinding’ and material overrun.

The highest production screen on the market. Various lengths and widths with the maximum being 3.3 metres long x 1.83 metres wide. Produced with "true apertures" with various wire sizes. Available in high quality high tensile or stainless steel wire. Choice of heavy duty wires for abrasive applications. Quick deliveries. Compatible with powerscreen, finlay, extec, fintec, mccloskey, metso, keestrack, viper, portafill and many more.
