Beringer GmbH products

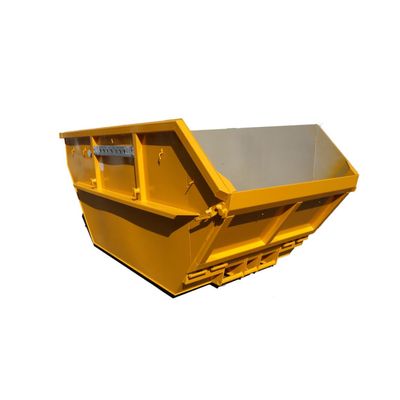

Manufactured according to DIN 30 720 for chain-loader systems asymmetric;. Bottom plate 6 mm. Side wall plates 4 mm. Welded inside and outside without holes,. Sheer rail for higher stability;. Perforated strip (galvanized) for load safety,. Heavy duty tipping profile,. Edges double welded, triple tipping device on both sides; set of net hooks welded all around,. Primed and coated in RAL colour of your choice.

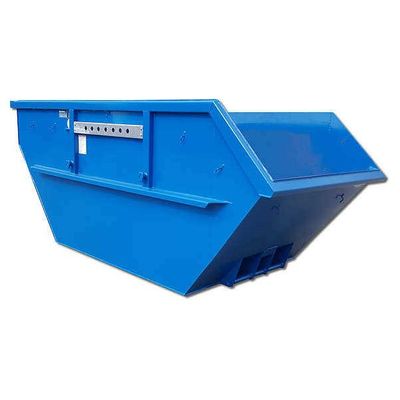

Manufactured according to DIN 30 720, For chain-loader systems, Asymmetric; Welded inside and outside without holes; Bottom plate 6 mm, Side wall plates 4 mm, Sheer rail for higher stability; Perforated strip (galvanized) for load safety, Bottom plate 6 mm, Side wall plates 4 mm, Triple tipping device on both sides, Set of net hooks welded all around, Foldable front wall traversable; Primed and coated in RAL colour of your choice.

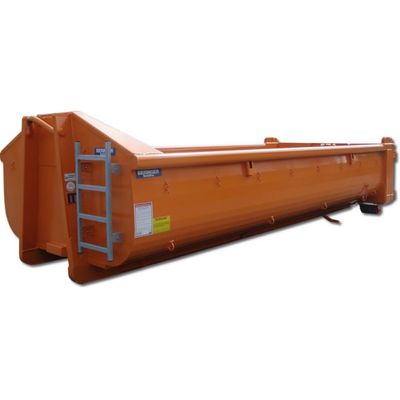

Height: 750 – 1250 mm. Manufactured according to DIN 30 722. Convex side panels. Bottom (4 mm), sidewalls, front and doors (3 mm) made of S 460 MC. Hook ø 60 mm. Sub frame made of IPN 180. Double twin door with middle lock. Rollers with grease nipples ø 160 mm. Set of net hooks welded all around. Ladder at front side (optional). Additional lock for safety door opening according to accident prevention regulations. Primed and coated in RAL colour of your choice.

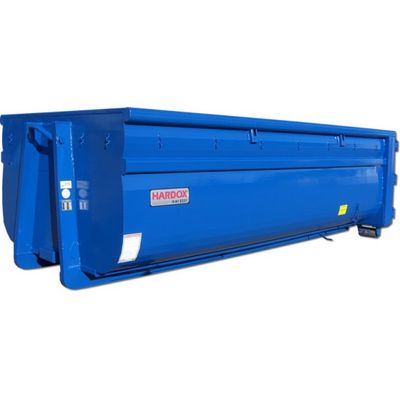

Height 1500 mm. Manufactured according to DIN 30 722. Two convex side panels. Bottom made of wear-resistant steel 450 HBW (4 mm). Sidewalls, front and doors made of wear-resistant steel 450 HBW (3 mm). Hook ø 60 mm. Sub frame made of IPN 180. Additional fiber belt made of wear-resistant steel 450 HBW (3 mm). Top frame made of special pipe 125/95/8 (S 355). Rollers with grease nipples ø 160 mm. Set of net hooks welded all around. Ladder at front side. Additional lock for safety door opening according to accident prevention regulations,. Primed and coated in RAL colour of your choice.

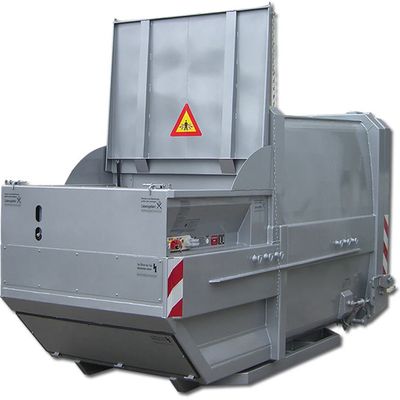

Mobile compactor for chain-loader systems according to DIN 30 730. Smoothline construction, conicalshape. With silence pump. Feed opening 835 x 1500 mm.

Compactor for hook-lift systems manufactured according to DIN 30 730. Smoothline construction conical shape. With silent pump. Feed opening 1000 x 18600 mm in front of plunger. SPS control. With radial sheets (left & right). Primed and coated in RAL colour of your choice.

Manufactured according to DIN EN 12574, hot dip galvanized, material thickness: 2 mm, all edges rounded (R = 85 mm), top frame made of pipe 80/40/3, with drainage in bottom plate, 4 x 200 mm ø  swivel castors.

Manufactured according to DIN EN 12574, hot dip galvanized, material thickness 2 mm, top frame made of pipe 80/40/3, with drainage in bottom plate, 4 x 200 mm ø swivel castor.

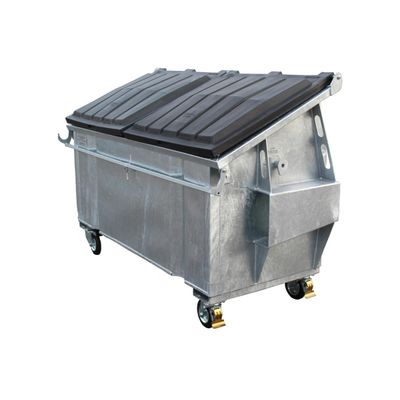

Hot dip galvanized with plastic lid, bottom and sidewalls made of high-grade steel (2 mm), fork-pockets welded, with chain-bolts for chain-loader truck, with castors or landing legs.

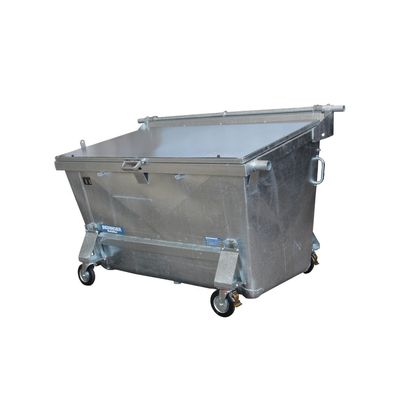

Manufactured according to DIN 30 738 /. EN 12 574. Hot dip galvanized. With crimped sidewalls. Easy maneuvering even on rough surface with castors (2 swivel, 2 fix). Fork-lift pockets (welded) made of 6 mm steel sheets. Lid with swinging bracket.
