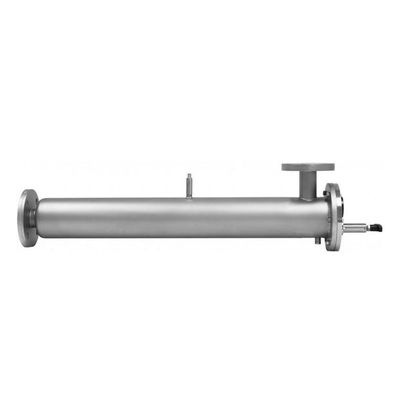

AlfaLine UV, the most compact UV system, is designed for all types of water treatment. The so-called “I-shape”, where the water’s inlet and outlet are in one line, results in low headloss, and very easy installation in new or existing pipelines. The long-life medium-pressure UV lamps are compact and emit a broad spectrum of wavelengths with a high intensity.

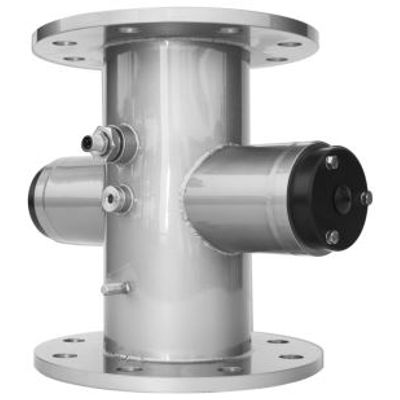

The KappaLine UV series is the most forward-looking UV system available in the market today. It features ‘in-one-line’ positioning for the in and out connections and perpendicularly positioned, very compact low-pressure UV amalgam lamps, called EcoLight.

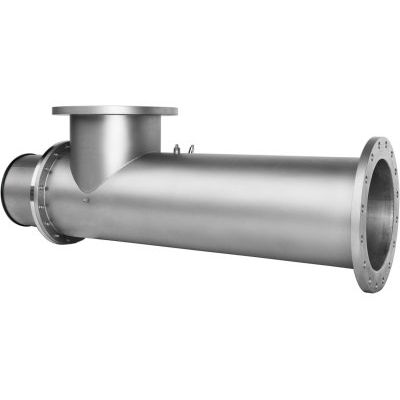

BetaLine UV is a series of optimized “L-shaped” units. The inlet and outlet are positioned at 90°, providing predictable hydraulics while passing the UV lamps. The ‘L-shape’ makes BetaLine UV system installation in existing or new pipelines very simple. The UV chamber, which can be installed in a main or bypass pipeline, vertically or horizontally, is able to turn 360° around the inlet axis.

The BetaLine-E series uses unique high-efficient amalgam low-pressure UV lamps called Ecolight. The lamps emit germicidal wavelengths at 254nm. The compact Ecolight lamps are ‘state-of-the-art’ low-pressure lamps, especially developed by bestUV for use in BetaLine-E UV systems. The lamplife is extremely long, meaning the operational costs are relatively low compared to traditional UV lamps. As a result of bestUV’s integral development of the BetaLine-E and the ECOlight lamp the BetaLine-E is the most compact L-shaped system available on the market today.

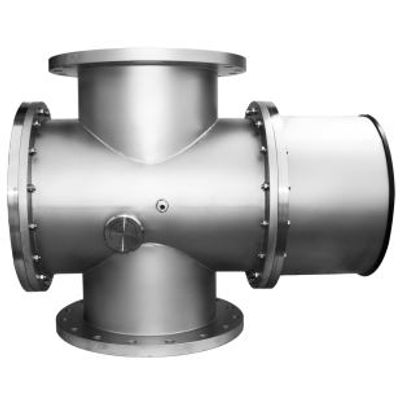

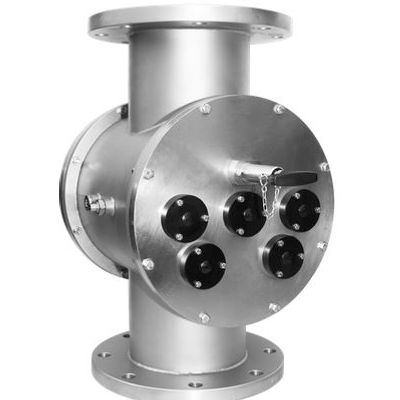

The DeltaLine UV series features ‘in-one-line’ positioning of the inlet and outlet connections. The UV lamps are high-output medium-pressure polychromatic types, positioned perpendicularly to the flow. The high-output medium-pressure (MP) UV lamps emit wavelengths between 200 and 400nm. DeltaLine UV systems are typically used in low-transmittance (high-absorbance) water applications, such as wastewater (both communal and industrial) and drain water for greenhouse operations.

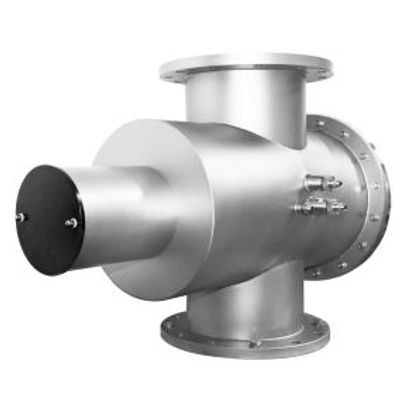

A range of 14 different PhiLine UV units are approved and certified by the Norwegian Institute of Public Health (NIPH*) as a barrier against most bacteria, viruses and parasites. The ‘L-shape’ design makes installation quick and easy in existing or new pipelines. The chamber can be installed easily in the main pipeline or in a bypass pipeline, vertically or horizontally, which allows for a 360° turn around the inlet axis. PhiLine UV systems use low-pressure UV lamps, which are available in different types. These lamps emit a narrow spectrum of wavelengths. Most critical is the 254nm wavelength.

This SigmaLine UV system’s “I-shape” design features the inlet and outlet positioned in one line. The benefit is low headloss and very easy installation in new or existing pipelines. The long-life medium-pressure UV lamp is compact and emits a broad spectrum of wavelengths with a high intensity to effectively disinfect or break down chloramines in pool water.

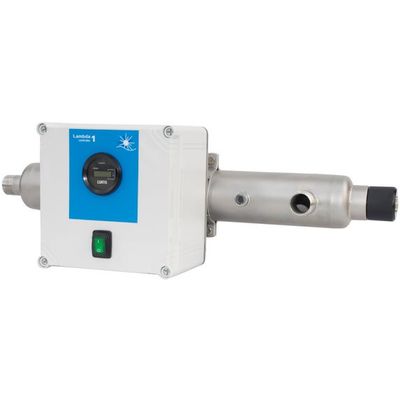

The GammaLine UV series is the most simple and basic UV system available from bestUV. The control cabinet features an hours counter mounted directly on the UV chamber. The cabinet can be turned 90° for horizontal or vertical mounting. The ‘L-shape’ design makes the installation of GammaLine UV very simple. The chamber can be installed easily in a main or bypass pipe, horizontally or vertically, allowing for 360° turning around the inlet axis.

One of the parameters to select a UV system is the water quality. The water quality is expressed in UV transmittance (%UVT) or UV absorbance. bestUV offers a very reliable, simple, portable UV transmittance meter for measurement of the water quality (UVT10 or SAC) at site.
