Bidapro S.L products

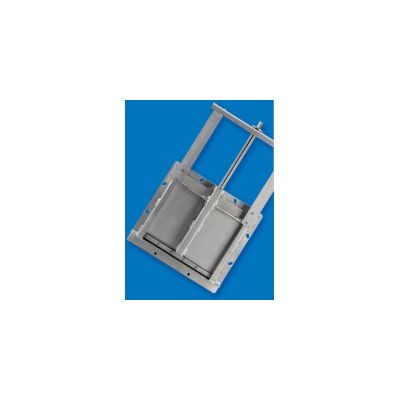

Fabricated square or rectangular port wall penstock sealed on all 4 sides, modulate design so that the frame can be used for on-off. Available in different construction materials, with elastic profile sealing and a guided system by means of sliders to reduce rate of friction. Standard manufacture dimensions from 200 x 200 up to 2000 x 2000 mm. Other dimensions upon request. Sealed on all 4 sides to be wall-mounted in order to control the flow.

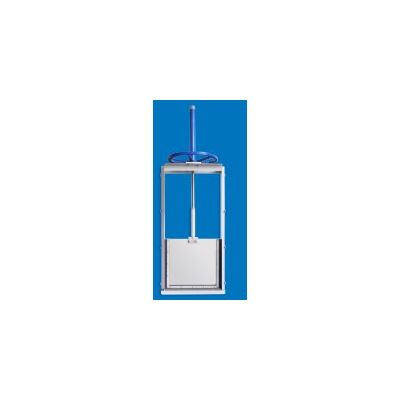

Sealed on 3 sides for installation on open channels and regulation of the flow. Fabricated square or rectangular port sliding channel gate for installation embedded in concrete and seals on 3 sides. Modulate design so that the frame be closed. Different construction materials, tightness by elastomer seal and guiding system with sliders to reduce coefficient of friction . Standard manufacturing dimensions 200 x 200 through 2000 x 2000 mm. Other dimensions upon request.

Butterfly damper DM type, to be mounted between flanges. Fabricated construction. Standard design planned for assembly of actuator shaft be in horizontal position. Manufacture in different kind of materials according to working temperature. Design dimensions planned for external installation of heat-resistant Relative tightness and several kind of sealing according to the grade of tightness required for the application Limit temperature :500ºC , limit pressure 0.5 bar. Top speed: 25m./ sec. Standard manufacture dimensions for diameter 200 through 2000 mm.

Louvers damper type DL for assembly between flanges. Fabricated construction. Standard design planned for assembly of the actuator shaft be in horizontal position. According to working temperature different kind of materials are used. Design dimensions planned for external installation of heat-resistant. Optional design for louvers in PARALLEL and OPPOSITE side. Relative tightness and different types of sealing according to the grade of tightness required for the application. Limit temperature: 500º C, limit pressure: 0.5 bar. Top speed: 25 m./sec.

The GM model is a valve generally used for fluids loaded with suspended solids.

The GL model is a through conduit valve with double seal , designed for working under difficult conditions as handling fluids with suspended solids and concentrations up to 10%.

Two and three ways. Reduced and full port. Long, short din and ansi. Flanged ends, threaded or for welding. Lever or gear operated and automatic either electric or pneumatic ones.

The body is covered with Elastomer coating to work under low pressures with clean fluids, or high performances, as well as metal-metal or metal – PTFE seat. Between flanges, Lug type or with flanges. Lever or gear operated and automatic either electric or pneumatic.

Tilting disc with eccentric shaft and oblique seating angle, with or without counterweight and cushioning for control of the closing.

Used for pressure and vacuum, for protecting pipe lines and tanks against overpressure or overvacuum. Automatic valves and optional manual device depending on applications (liquids or gases ). Threaded and flanged connections.
