Bifold Fluidpower Ltd products

Hydraulic Instrumentation Needle valves with dynamic sealing and non wetted threads.

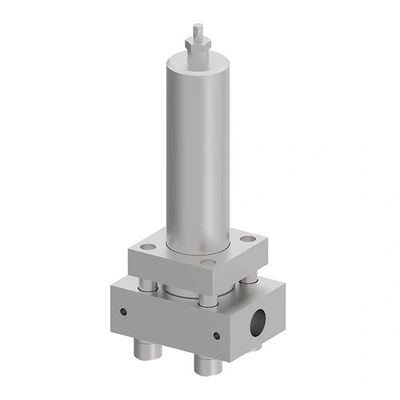

Compatible with fluids at NAS1638 Class 9 and ISO 4406 18/15 High flow - up to 1.2 Cv / 40.0 l/min Working pressure up to 7,540 psi / 520 bar Designed to supplement hydraulic system main filters This range of filters affords protection to vulnerable hydraulic components Considerably greater contamination holding capacity and flow capability Suitable as primary filters for low flow hydraulic systems, particularly hand pump units 3, 10 and 25 micron absolute filter rating.

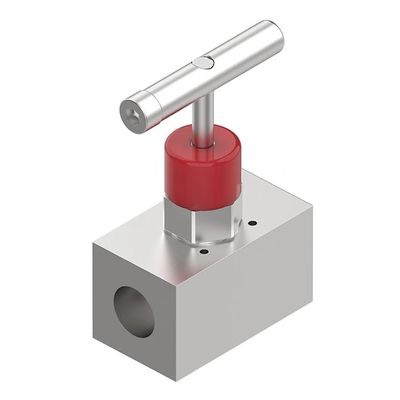

Compatible with fluids at NAS1638 Class 9 and ISO 4406 18/15 High flow - up to 1.2 Cv and 100.0 l/min Working pressure up to 10,000 psi / 690 bar Designed with a finely threaded stem which allows gradual adjustment and control of flow passing through the system.

Designed to comply with API 17F and ISO 13628-6 High flow - up to 1.9 Cv / 100.0 l/min Working pressure up to 15,000 psi / 1,035 bar Lowest cost solution, compact footprint Bespoke interface / solution available - retrofitted to existing customer footprint Direct seawater immersion Typical applications include: subsea well control module, intervention and work over control systems.

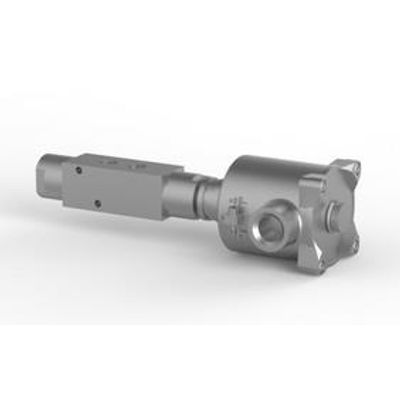

Solenoid Valve, 316 Stainless Steel, 1/4 NPT Ports, 3 Way 2 Position, Pilot Operated, Indirect Acting, Spring Return, Ex d, 24VDC, Auto Reset Internal Pilot, M20 x 1.5 Cable Entry, Cv 0.73.

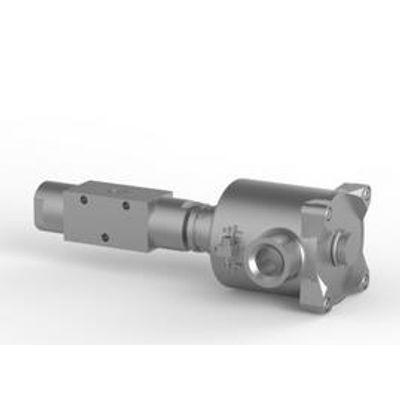

Solenoid Valve, 316 Stainless Steel, 1/4 NPT Ports, 3 Way 2 Position, Pilot Operated, Indirect Acting, Spring Return, Exia, 260Ohm, Auto Reset Internal Pilot, M20 x 1.5 Cable Entry, Cv 0.73.

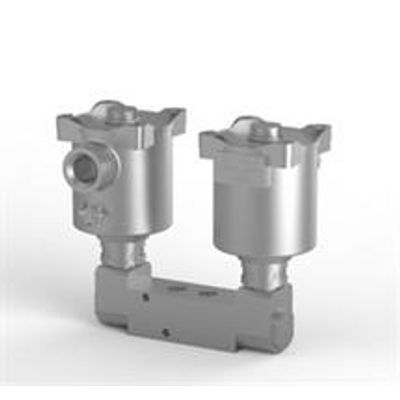

Solenoid Valve, 316 Stainless Steel, 1/4 NPT Ports, 5 Way 2 Position, Pilot Operated, Indirect Acting, Spring Return, Ex emb, 24VDC, Auto Reset Internal Pilot, M20 x 1.5 Cable Entry, Cv 0.73.

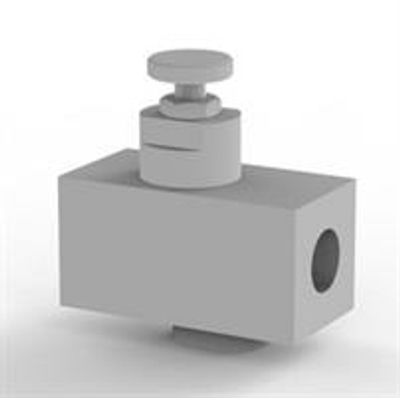

Flow Control Valve, 316 Stainless Steel, 1/4 NPT, Artic Service, Cv 0.50. Service: Arctic Service - Pneumatic, 1/4NPT, Valve Type: Flow Control - uni-directional.

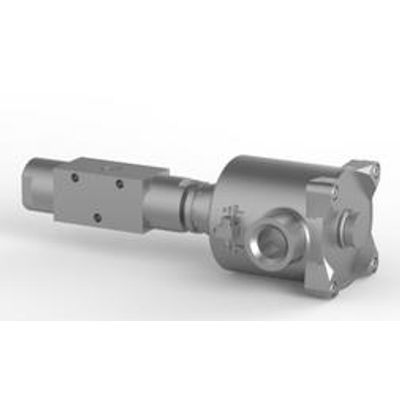

Solenoid Valve, 316 Stainless Steel, 1/4 NPT Ports, 5 Way 2 Position, Pilot Operated, Indirect Acting, Pilot Return, Ex emb, 24VDC, Auto Reset Internal Pilot, M20 x 1.5 Cable Entry, Cv 0.73.
