Big Dipper - Thermaco Inc. products

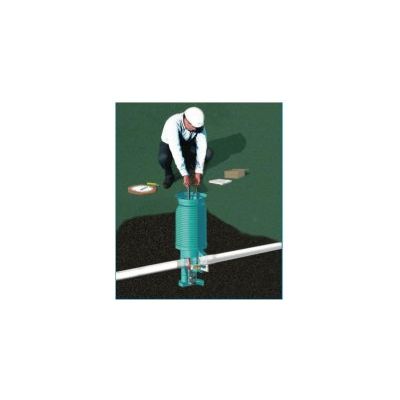

A Better Means for Sampling: The Evaluwell Sample Port provides a convenient, easy method to sample a grease interceptor, process point or other effluent source.  Evaluwell’s unique design makes it easy to install in almost any location, be it inside or outside the facility.  It also lends itself to many wastewater sites including commercial, industrial, medical and municipal.

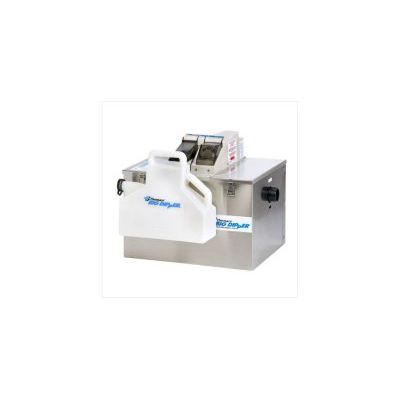

The Big Dipper W-250-AST Automatic Grease Removal Device is capable of accepting up to a 25 GPM (1.58 l/s) flow.  The center module which comes with digital time control, heater assembly, and mechanized skimming assemble, automatically isolates trapped grease into grease collector for easy disposal.  The Automatic Solids Transfer feature automatically empties incidental solids out of the solids chamber and down the sewer line.

The Big Dipper FS-1 Flat Strainer is designed to eliminate the garbage disposal and reduce clogged drains due to coarse solids buildup. The Flat Strainer separates & collects coarse solids such as rice, cole slaw and other food scraps larger than 0.125” / 3.175 mm in diameter. The removable tray allows the customer to empty the collected coarse solids directly into a trash receptacle. The FS-1 is constructed of durable stainless steel and offers a simple solution for solids waste disposal.

The ILS-1 In-Line Strainer separates and collects coarse solids larger than 1” (25 mm) in diameter found in typical institutional-type kitchen flows. This option is designed to couple with large Big Dipper Grease Removal Units (50 GPM and higher). How does the ILS-1 In-line strainer work? As kitchen effluent flows into the ILS-1In-line strainer from the top, it passes over a grate. This grate has openings that are 1” wide. This strains out any coarse solids that are greater than 1” in diameter. These solids slide down the grate and into a Strainer Basket. This basket is removable, and should be emptied a minimum of once per day, more often if the kitchen is busy. These strained solids may be emptied into a trash receptacle. Meanwhile, the strained effluent exits the unit through a coupling on the bottom. This flow continues on to a Big Dipper Automatic Grease & Oils Removal Unit.

The Big Dipper W-250-IS-SS Sealed-Stainless Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 25 GPM (1.58 l/s) flow while holding more than 56.4 Pounds (25.6 Kg) of grease.  The center module which comes with digital time control, heater assembly, and mechanized skimming assemble, automatically isolates trapped grease into grease collector for easy disposal.

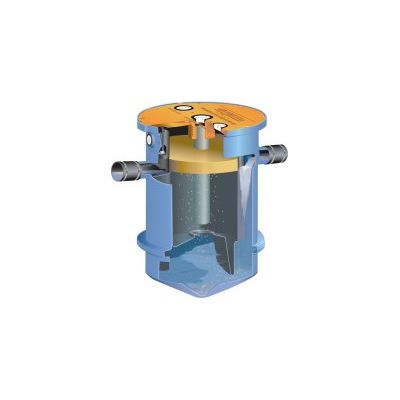

Thermaco Trapzilla TZ-160 Grease Trap System, rotationally molded polyethylene grease and oil separator for below or above-ground installation, rated at 35 gallons (2.21 l/s) per minute peak flow, 160+ pounds (72.57+ kg) of grease storage capacity, flat grease separation curve, integral portal for access by grease pump truck for grease removal, integral portal for vacuum access for removal of solids, and including as an integral part of the unit a vessel vent, an integral gas trap, a fully removable foam-filled polyethylene cover, and two (2) no-hub connectors for plumbing connection provided.

Thermaco Trapzilla TZ-400 Grease Trap System, rotationally molded polyethylene grease and oil separator for below or above-ground installation, rated at 75 gallons per minute peak flow, 400+ pounds of grease storage capacity, flat grease separation curve, integral portal for access by grease pump truck for grease removal, integral portal for vacuum access for removal of solids, and including as an integral part of the unit a vessel vent, an integral gas trap, a fully removable foam-filled polyethylene cover, and two (2) no-hub connectors for plumbing connection provided.

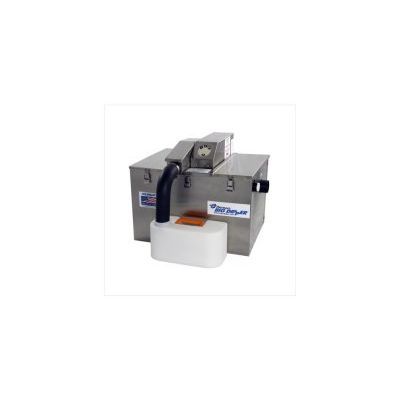

The Big Dipper W-250-IS Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 25 GPM (1.58 l/s) flow while holding more than 50 lbs. (22.68 kg) of grease.  The center module which comes with digital time control, heater assembly, and mechanized skimming assemble, automatically isolates trapped grease into grease collector for easy disposal.

The Big Dipper W-200-IS Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 20 GPM (1.26 l/s) flow while holding more than 40 lbs. (18.14 kg) of grease.  The center module which comes with digital time control, heater assembly, and mechanized skimming assemble, automatically isolates trapped grease into grease collector for easy disposal.

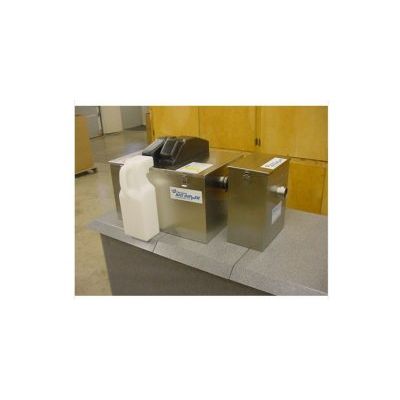

The Big Dipper ESU-1 External Solids Strainer is designed for locations that require a separate external solids strainer be installed in front of a grease interceptor.  The ESU-1 separates and collects coarse solids such as rice, cole slaw, and other familiar food particles larger than 0.125` (3.175 mm) in diameter.  The removable strainer basket allows the customer to empty the collected solids directly into a trash receptable.  The ESU-1 External Strainer is constructed of a durable stainless steel and offers a simple solution for solid waste dispisal.  It is compatible with Big Dipper W-200-IS, W-250-IS, and W-250-AST Point Source Unts.
