The VACOMASS jet control valve is an innovative, flow-optimized stainless steel control valve. In terms of control range and product quality, this development represents a milestone in the evolution of air control valves and fittings. It is unique and with worldwide patent applications. It fulfills all requirements defines in the Advisory Leaflet DWA-M 229-1 (September 2017) and the new “Handbook of Energy North Rhine-Westphalia” (January 2018).

The VACOMASS elliptic diaphragm control valve is a technically optimized control valve, especially developed for aeration air, closing gas-tight with a lenticular control aperture. Low pressure drop in the whole control range and high flow rate capacity for flexing and cleaning the diffuser with very low pressure drop are two of the main features (design according to DIN EN 60534-2-3).

The VACOMASS square diaphragm control valve is a technically optimized sliding gate control valve with a falling flow axis and gas-tight shut-off using a square shaped control aperture. It is used for precise and low-loss control of airflow and distribution in the aeration tanks of a wastewater treatment plant (design according to DIN EN 60534-2-3).

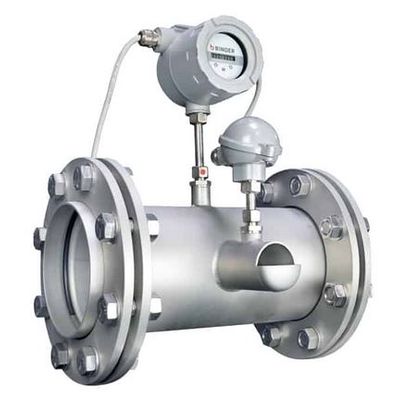

The COMBIMASS syngas measuring system is a device combination in intermediate flange design and consists of two sensors: a heat conductivity sensor in the steady flow zone and a thermal sensor in the gas flow. The heat conductivity sensor determines the changing H2 concentration in the gas approximately and corrects the measurement signal of the thermal sensor accordingly.

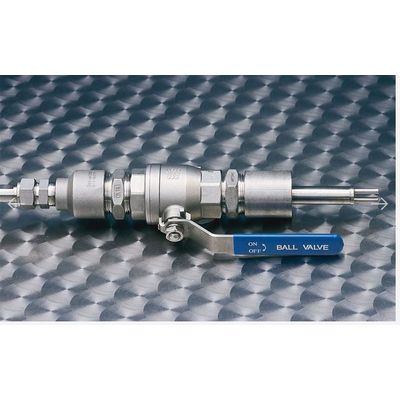

Using the COMBIMASS hot tapping unit, the flowmeter can be removed gastight during operation for check and maintenance. It is available in three different sizes for sensors 12, 18 and 25 mm.

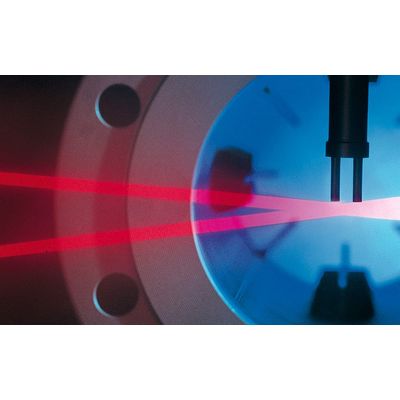

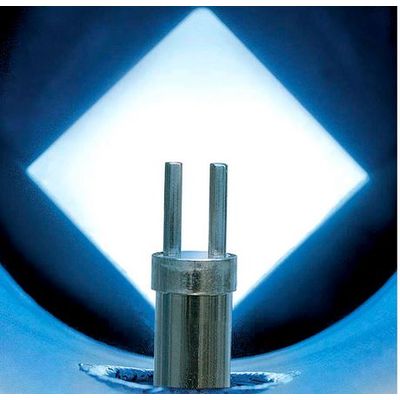

To achieve the desired accuracies using COMBIMASS® thermal gas flowmeter, a minimum inlet and outlet straight pipe runs must be considered when installing according to DIN ISO 5167-1 as a result of the actual piping, flow profile irregularities and the necessary calming distances. If no sufficient calming distances are available, the desired measuring accuracy can possibly be achieved with a special calibration of the mass flowmeter by simulating the actual site conditions in our CAMASS® Calibration Lab with the same field operating process conditions under real load conditions and even the same piping layout.

The analyzer station COMBIMASS GA-s hybrid syngas has a completely modular design. All pumps, valves and electronic modules are individually mounted on top-hat rails for easy maintenance. The gas cells are installed also in top-hat rail  modules.

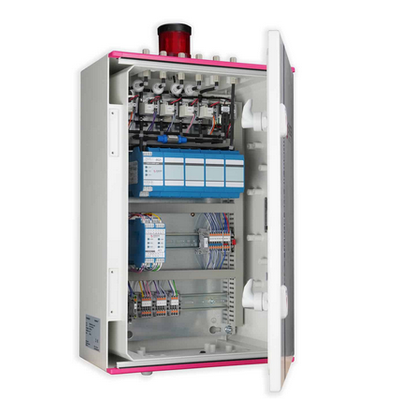

The basic, modular COMBIMASS GA-s hybrid eco air monitoring analyzer station consists of a cabinet for analysis of the supporting air from 1 or 2 fermenters. It is a station for indoor installation with a fixed measuring programme. Data and alarm transmission as well as a warning light complete the station for a safe operation

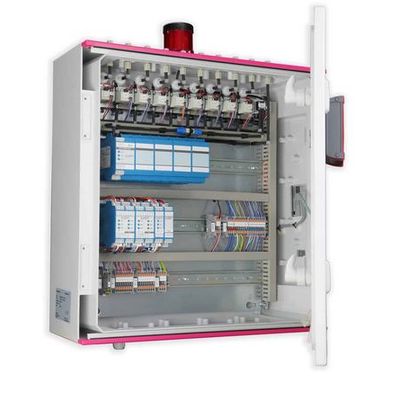

The COMBIMASS GA-s hybrid premium air monitoring analyzer station consists of a ventilated cabinet for the cyclic analysis of the air of 1 up to 4 fermenters for indoor installation with an integrated display and flexible measuring program. The gas modules have an integrated maintenance diagnosis whereby the wear is signaled by the traffic light colours. Transmission of data and alarms is possible via various bus systems. Additionally, the warning lamp rounds off the station for a simple and safe operation.

When blanketing in sterile areas further design features are required in addition to the high, electropolished surface quality and the materials required especially for the food and pharmaceutical industries. INSTRUM stainless steel pressure regulators offer GMP-compliant design to minimize or eliminate germinated zones.
