Bindicator - Specialty Product Technologies products

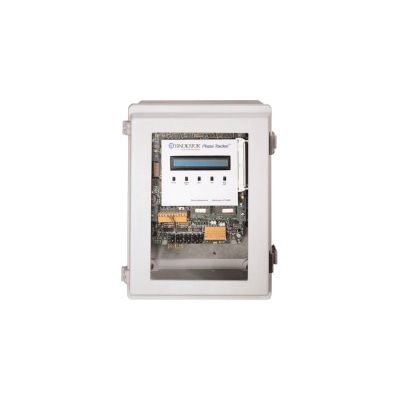

The Bindicator Phase Tracker series of level measurement instruments are designed to solve the most challenging continuous level applications. The Phase Tracker products have no moving parts and use a sophisticated electronic signal to accurately measure even the most difficult materials in the most hazardous environments.

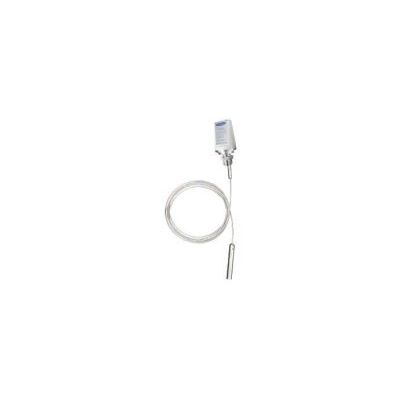

The TDR-1000 provides continuous, non-mechanical level measurement, utilizing guided wave radar technology. The TDR-1000 is particularly suited for measuring the level of solids, granules, and powders as well as a wide range of liquids. For many applications, the TDR-1000 is an economical and superior alternative to capacitance, ultrasonic and plumb bob technologies.

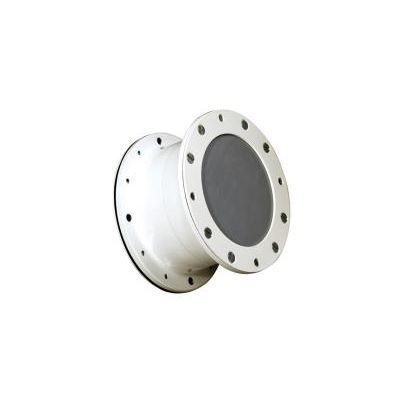

The original electromechanical point level switch, Bin-Dicator® diaphragm-type level controls were the first to enjoy general usage in the industry. Bin-Dicator controls eliminate bin overflow, empty bins, clogged conveyors, choked elevators and resulting damage and waste. The Bin-Dicator control is a pressure actuated switch for use with free flowing bulk materials at atmospheric pressures. Actuation of the switch is the result of pressure exerted by the bulk material against the diaphragm assembly. De-actuation or switch release is a result of the bulk material clearing away from the diaphragm.

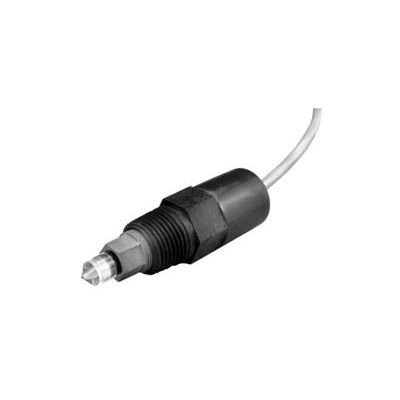

Levelite optic probes sense the presence or absence of liquid using an infrared light source and detector often used in level measurement.

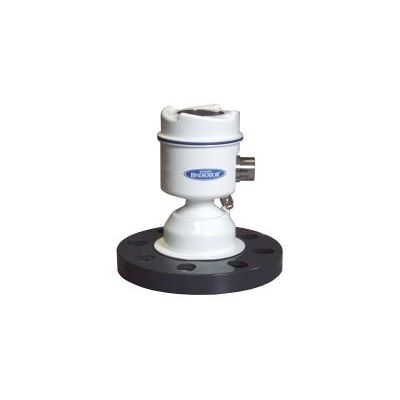

The F78MP Series air radar sensor provides non-contact, continuous level measurement for bulk materials in bins, tanks and silos. Accurate and reliable in difficult environments, the F78MP Series is an ideal level meter for powder and bulk solid inventory management. The F78MP Series air radar withstands corrosive environments and takes consistent measurements in steam, dust and other turbulent conditions.

The SONO-1000 is a single tank ultrasonic sensor. This unit is a compact ultrasonic transmitter designed to measure the level of free flowing solids such as powders and granules. The SONO-1000 microprocessor is a smart level transmitter that offers a 4-20 mA output, and programmable relay. This is a level measurement technology that is a non-contact ultrasonic principle which is based on sonar or sound echo principles. The SONO-1000 is especially suited for applications where physical contact with the material being measured is undesirable.

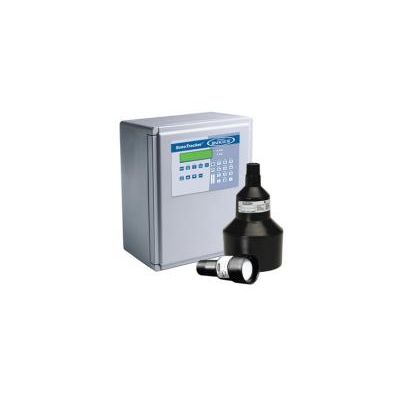

The SonoTracker Ultrasonic Level System can monitor up to 16 vessels with transducers of various frequencies, and vessels of different heights and shapes and accurately measure the level of many different materials. It allows you to read levels from 1 foot to beyond 100 feet in solids, and additionally the same unit can be used for open channel flow and differential level measurements.

CAP-LEVEL® Cap-Level® II & Cap-Level® IIA are designed for level monitoring and control. The 4-20mA output provides a selectable dampening function to stabilize readings where severe agitation is present. Simple zero and span adjustment make calibration easy. The relay logic circuitry offers the flexibility to control multiple pumps, conveyors and alarms. Each relay can be set to turn your equipment on and off at any selected point on the probe – without any external latching devices. Failsafe selection gives the security of fault indication and/or conveyor stop if power is lost. The probe configurations and materials offered allow you to custom fit Cap-Level® II to your application. Designs such as the type “E” and type “H” tie-down, allow use in tall silos and include a unique cable adjustments.

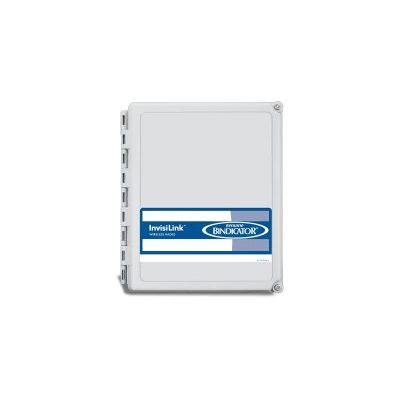

InvisiLink™ is a wireless radio solution for devices that communicate via RS-485 or RS-422. A radio is connected to both the measuring device, like a Yo-Yo or controller, and the receiving device, like an ORB. Then the InvisiLink radio sends data back and forth between the devices. This system eliminates the need for cables and conduit connecting a measuring device to a device collecting data. It is also possible to have a single device receive multiple data streams from ‘send’ devices.

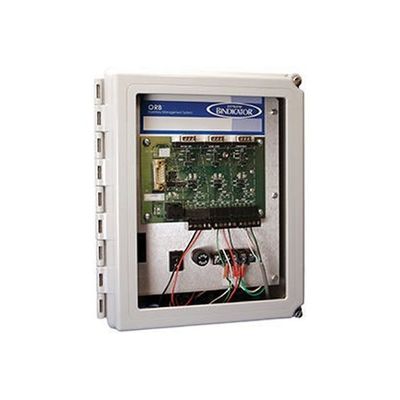

The ORB™ Remote Inventory System transforms inventory and process data into management information that can increase productivity and reduce supply chain costs. By providing a reliable means of gathering and transmitting real-time inventory and process information via your LAN or the Internet, high volumes of data can be securely monitored, retrieved and organized by various users within the plant or remotely.
