Biogaskontor Köberle GmbH products

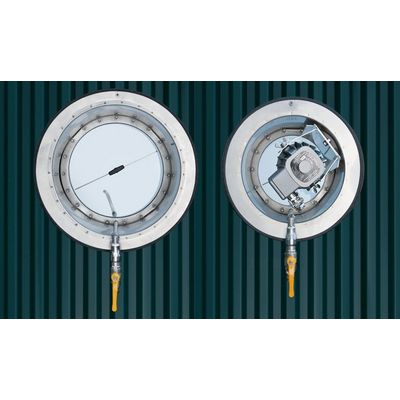

Everything at a glance with the Bulls eye RD 300/RD 400. Is the fermentation process working properly? Are there signs of scum on the surface? What is happening at the mixer? The bulls eye RD 300/RD 400 allows visual inspection of the fermentation process in the biogas plant fermenter. Optionally biogas can be taken from the rinsing line.

Each digester should be equipped with a possibility for removal of substrate samples. The BIOGASKONTOR measuring unit provides safe discharge samples with double ball valves made of stainless steel. A measurement point for the temperature and the pressure or the fill level in the vessel is available. Variations: DN 150 with flanged pipe connections for building-shaft lining or stainless steel plate for direct screw to wall.

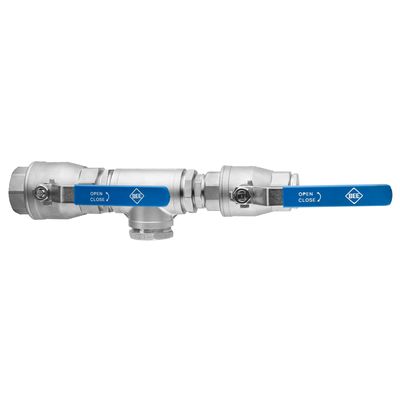

Consisting of fittings for sample outlet and pressure measurement. Complete of stainless steel 316. Art. No.: 80400004.

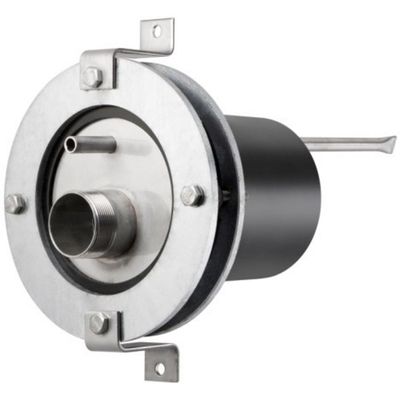

Comprising DN 150. flange bearing with stainless steel lid including probe conduit for temperature sensor and 2" pipe without anchor bolt for fixing without temperature and pressure can. Art. No.: 80400001.

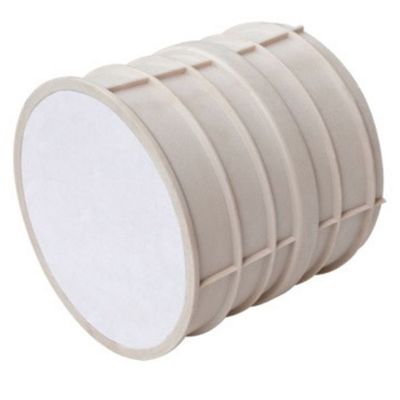

DN 150 for 160 mm conical pipe rubber seal length 240 mm. Art. No.: 80530160. Art. No.: 80530161 padded.

35 x 35 cm with hole circle for dowelling to tank wall, stainless steel 304, including sensor conduit for temperature sensor, 2 "socket without sealing and fastening material. Art. No.: 80400010.

DN25 1" pressure, 1-10 m water. without Display . accuracy: less than ±0,6%. Substrate contact: Ceramik . electric contact: M 12 socket. Measurement range: 0-1 bar.

GTF200 4 lead sensor, 4m cable, for GREISINGER GIR 2002 and GIA 2000. Art. No.: 75182042.

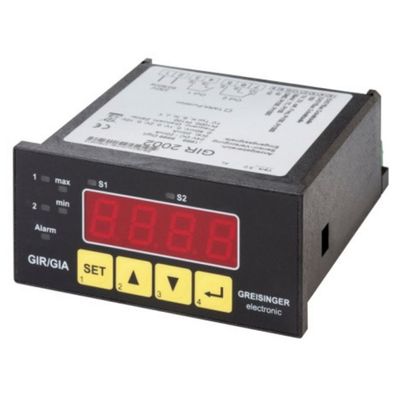

Temperature controller including temperature display. GREISINGER GIR 2002 without 4-lead sensor PT 100, 230 V power supply, 2 relay outputs, serial interface bus operating mode. Art. No.: 75182052.

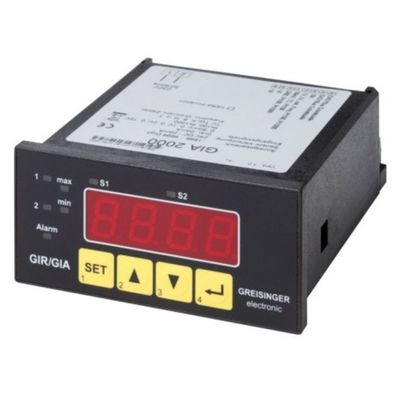

With 4 lead sensor PT 100, extendable to 100 m, min / max-storage, 240 V, precision 0,1 °C. Art. No.: 75182008.
