Bionis products

TLC Si 60 glass plates – Pack of 80 pieces. Advantages: Optimal wettability for clean, accurate color results, even with 100% aqueous reagents, efficient separation and excellent batch-to-batch reproducibility.

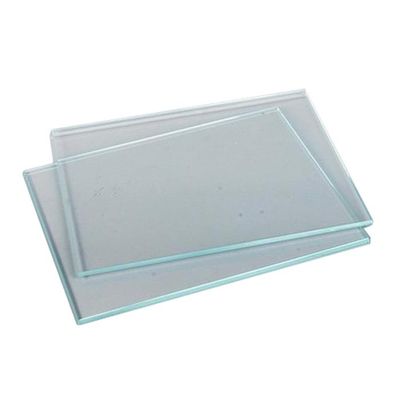

Glass support plates for silica phase application using the plate spreader-preparer. Dimensions: 100 x 50 mm. Thickness: 4 mm. Ground corners and edges. Pack of 20 pieces.

For plates up to 200 x 200 mm. Features 19 marks spaced 10 mm apart and holes spaced 100 mm apart. Allows samples to be deposited at regular dot or line intervals and Rf read. The guide can also be used to evaluate the surface area of points between 3 and 200 mm2. Triangular cut-outs for precise pipette guidance. Non-slip underside prevents unintentional table movements.

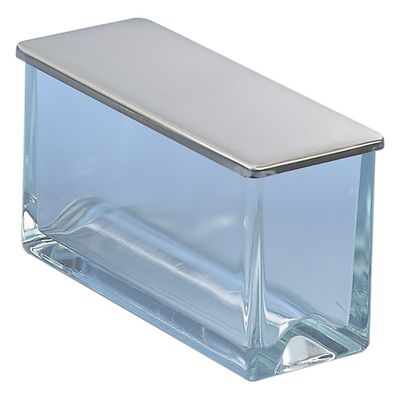

Double-compartment tanks are ideal for migration with filter paper for better chamber saturation. Thanks to their small storage tanks, they also save on reagents.

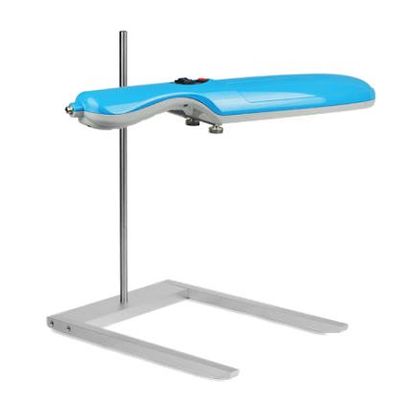

The MIUTU-6/2C UV analysis lamp is designed for UV 254 and 366 nm observation of TLC plates. Pleasant to use and versatile, it can be used manually or on a stand. 254nm ( 6W ) and 365nm ( 6W ) UV lamps can be switched on separately. Protective filter blocks visible light. Stand included. Dimensions: 440x75x51mm. 220-240V power supply. Net weight: 0.7 Kgs.

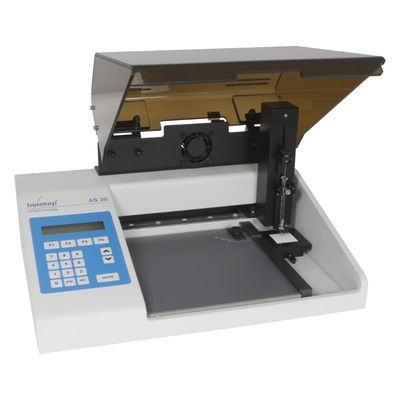

Reference: BS130.500. The AS30 semi-automatic HPTLC spotter enables samples to be deposited precisely as dots or dashes. It can operate as a stand-alone station with or without a PC. Each sample is deposited by nebulization. Inject sample into septum membrane deposition syringe.

The Chromajet DS20 automatic derivatization system is a fully automated spraying device. Reagents are sprayed on thin-layer plates or foils with the highest precision under microprocessor or computer control. The distinction from manual spraying lies in the great reduction in the quantity of reagent required, the almost complete absence of aerosol formation and the evenness of the spray pattern.It is possible to create and store up to 4 spray methods specifically adapted to individual chromatography schemes and call them up as required. The integrated software works under Windows 10. The individual working steps of the spraying procedure, including date and running number, are stored with the spray method. That permits operation in conformity with GxP as a result of the exact reproducibility and documentation.

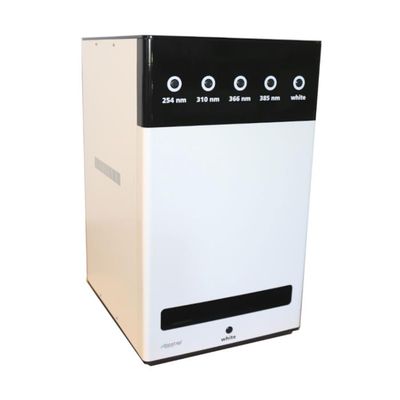

Reference: BS147.003. This is the latest device in the Biostep range. It captures the image of the plate thanks to its high-resolution digital camera (24 million pixels) equipped with a high-performance auto-zoom, autofocus lens. Its high sensitivity enables detection of weak fluorescence.

The CD60 densitometric scanner is the most complete tool in its class for characterizing samples after HPTLC migration. Qualifications and quantifications are carried out quickly and easily thanks to its ergonomic, dedicated software. This versatile, high-performance instrument guarantees optimum results whatever the molecules analyzed.
