Products and Equipment from Bionomic Industries Inc. on Environmental XPRT

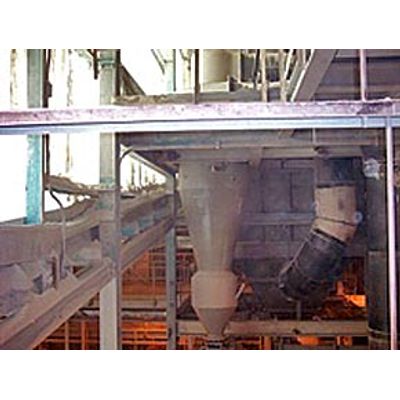

CycloPlus - Cyclone Dry Particulate Collector

The CycloPlus collector is an advanced cyclone design scrubber that offers high retained solid particulate collection as either a primary particulate device for dust removal or recovery or to act as a precleaning stage ahead of a fabric filter collector or wet scrubber to reduce particulate loadings and to increase fabric filter life or reduce scrubbing liquid blowdown.

Model 5000 Series - Counter-Current Packed Tower Fume Scrubber

Ideal as a fume scrubber and odor control system, this scrubber design series can achieve removal efficiencies of over 99.9% on most gaseous contaminants at energy saving low pressure drop. Series 5000 Packed Towers fume scrubber incorporate our high throughput Hi-Flow dumped or structured packed bed section, filament mist eliminator and liquid distribution system specifically match engineered to meet the particular application...

Model 5500 Series - Crossflow Scrubber

The Series 5500 Crossflow Scrubber is the type to consider when less then 99% removal efficiency is acceptable on gaseous contaminants and a low profile horizontal scrubber design is required for rooftop or other height limited installations. This scrubber is equipped with the same Hi-Flow throughput low pressure drop packed bed section and mist eliminator as our Packed Towers for maximum efficiency. Capacity Rating: 500 thru 50,000 cfm.

Model 6000 Series - Tray Scrubber

Extremely versatile scrubber series utilizes our special high performance sieve, valve or bubble cap tray designs in single or multiple stages to achieve high efficiency gas absorption or particulate removal with extremely low liquid throughput. Series 6000 Tray scrubbers have less tendency to foul on dirty solids laden gases or liquids than packed towers due to large diameter tray openings. A droplet and mist removal element section is included to...

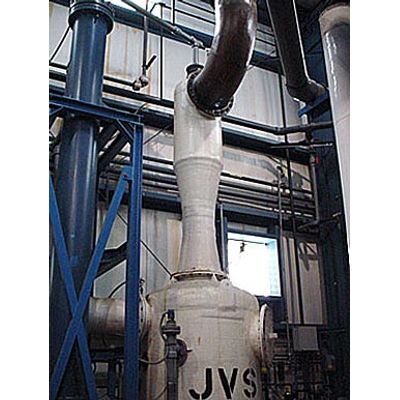

Model 6500 Series - Jet Venturi Scrubber

The ideal scrubber selection for low to moderate gas volumes when gaseous and or particulate contaminant removal is required. The Series 6500 Jet Scrubber creates its own draft to eliminate the need for a fan in most cases realizing cost savings and system simplification. Inherent with this design, gas is scrubbed with no bypass resulting in a scrubber that can be used for large turndowns in gas flows. The Jet scrubber utilizes a...

Model 7000/8000 Series - Gas Scrubber / Venturi Scrubber

The extremely efficient gas atomized Series 7000 and 8000 Venturi Scrubbers are the best choice for applications requiring the removal of smaller micron and submicron size particulate down to 0.2 microns and meeting EPA classified PM 10 and PM 2.5 standards. Soluble or chemically reactive gaseous contaminants are easily removed with these highly efficient devices. Both Series 7000 Rectangular and Series 8000 Annular throat units feature Bionomic...

Model 9000 Series - Mist Removal / Preformed Spray Scrubber

A major advancement in cyclonic scrubber technology, the Series 9000 Mist Removal | Preformed Spray Scrubber is capable of outperforming venturi scrubbers on an energy cost basis for collection of particulate in the 2 micron and larger size range and simultaneous removal of gaseous pollutants.The Series 9000 Mist | Preformed Spray Scrubber incorporates a unique specially designed gas entrance involute section fitted with proprietary reverse jet sprays...

Model 9500 Series - Spray Tower Acid Gas Scrubber

Specifically designed to treat acid gas emissions from particulate laden combustion flue gas, the Series 9500 Spray Tower Srubber is an extremely simple acid gas scrubber device capable of over 98% control efficiency. The scrubber consists of a fully open vertical vessel fitted with banks of hydraulic atomized spray nozzles. Nozzles feature an ideal droplet size distribution to achieve maximum mass transfer efficiency with a special non fouling...

RotaBed - Fluidized Bed Scrubber System

The patented RotaBed™ Fluidized Bed Scrubber represents a major breakthrough in ultra high efficiency gas absorption and particulate collection in a space saving non fouling design. RotaBed is the ideal technology for applications involving particulate laden gas streams or when handling high solids content or scale forming scrubbing liquids. The key to the RotaBed's superior performance is a unique swirl induced Coriolis grid that achieves much...

BFCS - Bionomic Forced Condensation Scrubbing System

The highly advanced Bionomic Forced Condensation Scrubbing System (BFCS) uses the principles of nature’s rain and particle growth mechanism to achieve dramatic improvements in collection of submicron particulate over conventional hot gas wet cleaning systems. In addition, secondary acid gas pollutants are also easily removed with the BFCS Technology. Substantial energy savings combined with high collection efficiency is the cornerstone of the...

Hi-TScrub - Thermal Oxidizer Scrubber Systems

Hi-TScrub Thermal Oxidizer combined systems employ our advanced horizontal or vertical configuration atomized spray and venturi gas quenchers to cool corrosive hot gas streams up to 2,600°F before scrubbing. Cooled gas with acid vapors or particulate is then removed with a Series 5000 Packed Tower or Series 7000 Venturi Scrubber. All units are available as 'complete' ScrubPac Custom Skid-Mounted Systems, and the scrubbers are ideal for treatment...

ScrubPac™ - VentClean™ System for Tank Vent Scrubbing

Bionomic Industries exclusive VentClean Scrubber is specifically designed to scrub storage tank and railcar vent emissions caused by breathing and filling operations, and is the latest edition to our enormously successful ScrubPac family of 'packaged' scrubber systems.

ScrubPac™ ProClean - Model CT - Self-Contained Compact Packed Tower Scrubbing System

A fully self-contained compact packed tower scrubbing system, the ProClean Type CT requires minimal field labor to install and dramatically reduces erection time and related costs. Available in two size range configurations. The system incorporates Bionomic's field-proven Series 5000 Counter Current Packed Tower Scrubber integrally packaged with recirculation pump, piping, instrumentation and controls – specifically engineered for high...

ScrubPac™ - Custom Packaged Scrubber Systems

ScrubPac™ is the only available scrubber system that delivers applications specific engineering in a highly cost effective, Custom 'packaged' skid mounted design. Fully run tested before they arrive on site, ScrubPac Systems require only minor assembly and process and utility connection hookups to become operational.

Bionomic HEI - Wet Electrostatic Precipitator System

The Bionomic HEI™ (High Energy Ionizer) Wet Electrostatic Precipitator System represents a major breakthrough in the advancement of state-of-the-art fine particulate control. Centered around precipitator hardware improvements that deliver high reliability and outstanding collection performance, the HEI™ WESP System incorporates a unique discharge electrode technology that can be sized to specific applications. The system's electrode...

ECharge - Electrostatic Precipitator

Features a Highly Efficient Design for Maximum Process or Indoor Air Pollution Control: The economical Bionomic ECharge Electrostatic Precipitator is able to achieve extremely high removal efficiency on small micron and submicron particulate to easily meet PM 2.5 environmental regulations. Opacity problems associated with smoke-type submicron particles, droplets, and aerosols are easily solved along with odor issues caused by these particles.

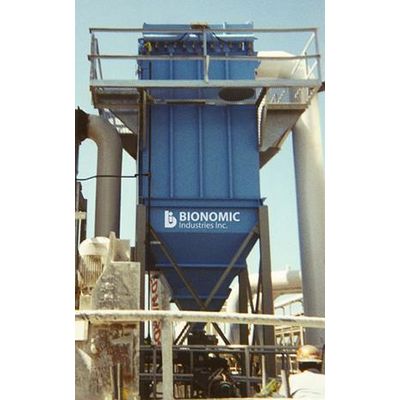

Bionomic Dri-Scrub - Dry and Dry/ Wet Combination Scrubber Systems

Bionomic Dri-Scrub Dry and Wet/Dry Combination Scrubber Systems are available for gas flows from 160 to 75,000 acfm, provide particulate collection efficiencies between 98 and 99.9% on most applications, and are normally used for scrubbing fine particulate with acid gases. Dry systems utilize a dry venturi scrubber for rapid mixing of the containment gas with a sorption reagent and are followed by a pulse jet fabric filter collector to capture...

BIONOxSOLVER - NOx Scrubbing System

BIONOxSOLVER is the first major breakthrough process NOx control chemistry to greatly simplify wet scrubbing system operation and dramatically reduce scrubber system complexity and costs. This special proprietary formulation of powerful nitrogen dioxide reducing agents can achieve over 33% greater removal efficiency with one simple chemical addition. Unlike typical NOx sulfide reduction chemistry, low toxicity BIONOxSOLVER...

BTIP - Bioscrubber / Biofilter

BTIP extends the capabilities of natural biological treatment of gaseous organic compounds, hydrogen sulfide, odors and more with increased removal efficiency while simultaneously removing particulate if present. A unique combination of proprietary mist scrubbing, bio-scrubbing/filtration and aerobic digestion offers lowest maintenance and operating costs with self-cleaning media and nearly nonexistent chemical reagent requirements. Systems are...

QSense - Direct Contact Heat Exchanger System

Efficiently recover valuable waste heat BTU’s from hot gases to heat water or other liquids the direct contact way with a QSense Heat Exchanger. An optimal solution to reduce energy consumption and save on expensive fuel costs, while at the same time cleaning the flue gas contaminants and reducing the exhaust temperature. This highly efficient counter current flow exchanger can be used for process heating applications or to meet or supplement...

Chemical Recovery / Production Systems

Capture and Reuse Gas Stream Pollutants with Modular Recovery Systems. There are dozens of applications and products that meet the gas composition and other criteria needed to enable an economical recovery solution. Recovery of scrubbed products and by-products can be the best most cost effective viable option to meet emission standards. It also allows recycling and reuse of the scrubbed product to save the cost of liquid waste stream treatment....

Bionomic - Complete System Components

Whether you purchase one of our stand alone scrubbers or a waste heat recovery unit, leave it to the experts at Bionomic Industries to provide all the accessories and components needed to ensure a truly reliable trouble-free operating system. Backed by our many years of experience in providing engineered systems, our staff of competent qualified engineers can provide all the necessary components seamlessly integrated and fully matched to meet the...

ScrubSeal - Vacuum Overflow Valves

New Bionomic ScrubSeal Vacuum Overflow Valves are the perfect overflow and vacuum seal solution to replace troublesome manometer water seal legs on scrubber sumps. Designed to eliminate unreliable, cumbersome manometer piping, and the headache of maintaining a liquid filled line, ScrubSeal acts as a check valve to allow drainage of scrubber sump liquid through the overflow valve while maintaining required vessel vacuum during normal non-flow...
