BiOptic. Inc products

Qsep100 Bio-Fragment Analyzers is the most versatile instrument of the Qsep Series Bio-Fragment Analyzers. It provides consistent high precision analysis by using the same single-channel cartridge as the Qsep1. It provides flexible sample capacity from 1 to 96 samples. Qsep100 is commonly used in general research laboratories and also a good partner for the NGS QC laboratories. Moreover, with diverse cartridges, Qsep100 could apply to DNA, RNA, and protein analysis. It must be a powerful tool for Life Science, Agriculture, Pharmaceutical Industry, and Food Science research.

Qsep1 is a portable capillary electrophoresis system, that could be applied to any research laboratories, clinical laboratories, food farms in the fields instead of transferring the sample to the central lab and provide the precise analysis results. Qsep1 instrument is like boarding luggage size (24x 21x 30 cm) and has high flexibility in sample number (1~16 sample capacity). These compact and lightweight instruments can help researchers to turn molecular biology into "Moving Biology for Field-test". This professional portable capillary electrophoresis system has the completed software functions, including Smear, RNA auto-assign support, and with the high sensitivity cartridge (N1), this system could also analyze the diverse samples, such as cfDNA.

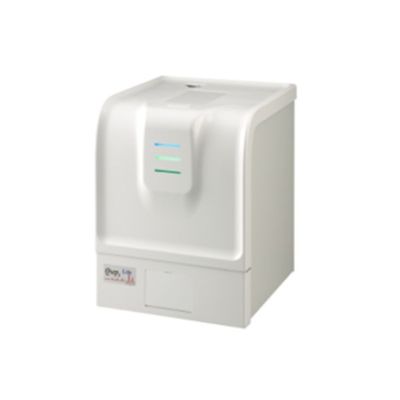

Qsep₁-Lite is an entry-level CGE system for students and all users. Qsep₁-Lite with Q-Analyzer for Qsep1-Lite software simplifies the operation. After inserting a cartridge into an instrument, the system will automatically provide the analysis method to eliminate setting steps. There are several cartridge kits specially designed for Qsep₁-Lite that can be used to analyze samples such as PCR products, large size DNA, and total RNA. With the easy-to-use features, Qsep₁-Lite can be operated by any user without professional training. It`s also a great analysis platform that can be popularized in colleges and small clinics. BiOptic has cooperated with colleges and brought Qsep₁-Lite into courses to let students get familiar with the CGE system.

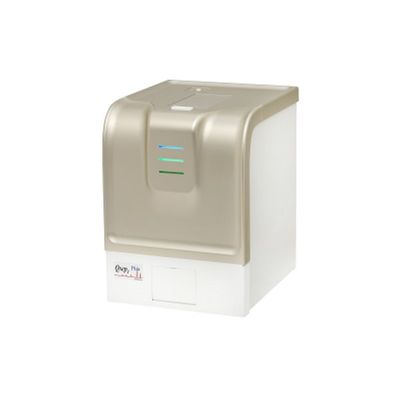

Characters of portable and light lead to the applications in any research laboratories, clinical laboratories, food farms in the fields.  Also, upgrade the sample capacity of Qsep₁-Plus, from 8 to 15, to elevate the experiences of users in analyzing.

Qsep100 advance and Qsep100 have flexible sample capacity from 1 to 96 samples. Qsep100 advance with a special detection module and a protein cassette (P2) can be applied to the research of various protein molecules and the quality control of the biosimilars detection.

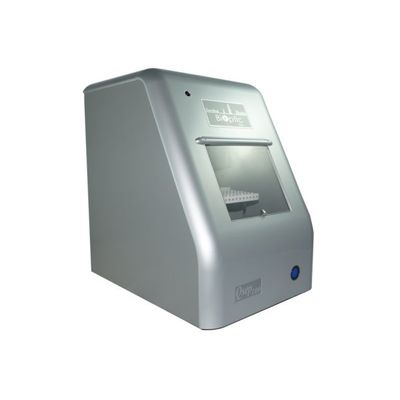

Qsep400 has been designed for larger research and clinical laboratories, who have large sample volumes. The high-throughput system provides high-speed analysis, superior results for all kinds of molecular genetic analysis applications. Qsep400 with variety of replaceable gel-cartridge kit is specifically designed for DNA, RNA and Protein analysis providing reproducible and accurate test results in matter of seconds. Qsep400 comes with Q-Analyzer software which has a simple-to-use User Interface (UI) that delivers consistent and high-precision data analysis and data export functions helping users in their daily molecular biology experiments.

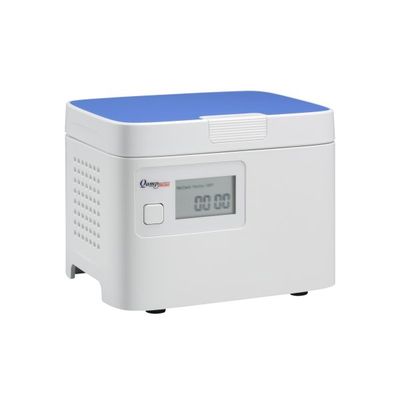

Qamp_mini is designed to achieve polymerase chain reaction (PCR) for the amplification of the targeted DNA in a miniature device making molecular biology more fun in the field. With the Peltier heating & cooling module positioned at the center total of 1-8 samples can be analyzed efficiently and cost-effectively without sacrificing performance and quality. With it`s compact size and One-Click to Go design, Qamp_mini is ideal in the field, laboratories or classrooms for epidemiology, veterinary, food testing, pathogen detection, ecology, archaeology research and education.

DNA Qualitative Cartridge Kit; Cartridge Name: Kilobase Cartridge (S3). Cat. No.: C105206 (2 pes) C105806 (8 pes) "C405106. Size Range: 10-50,000 bp Detection Range: 10bp~ 165kbp. LO.D : O.lng/uL* 2 pg/ul in water*. Best Resolution : 4~10 bp. Analytic Time (per run) : 9~21 mins 5 mins (below 1 kb). Sample Number (per cartridge) : 200 runs. Sample Consumption (per run) : lessthen 0.1 ul. Recommended Sample Volume : 0.1 mL tube: 10 pL, 0.2 mL tube: 20 pL, Micro Vial: 1-2 mLa. Guaranteed Shelf Life 6 months.

DNA Qualitative Cartridge Kit. Cartridge Name: High Resolution Cartridge (SI). Cat. No.: C105202 (2 pes) C105802 (8 pes) **C405102. Size Range: 10"5,000 bp. L.O.D: 0.1 ng/ul* 2 pg/ul in water*. Best Resolution: 1-4 bp. Analytic Time (per run): 3~S mins. Sample Number (per cartridge): 200 runs. Sample Consumption (per run): lessthan 0.1 ul. Recommended Sample Volume: 0.1 mLtube: 10 u±, 0.2 mL tube: 20 ul , Micro Vial: 1~2 uLA. Guaranteed Shelf Life: 6 months.

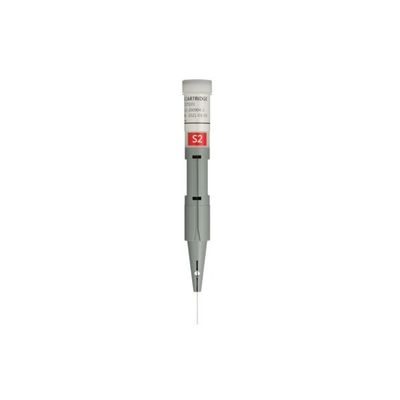

Cartridge Name : Standard Cartridge (S2), Cat. No. : C105201 (2 pes) C105801 (8 pes) **C405101, Size Range : 10~5,000 bp, LO.D : 0.1 ng/u±* 2 pg/nL in water*, Best Resolution : 4-10 bp, Analytic Time (per run) : 2-3 mins, Sample Number (per cartridge) : 200 runs, Sample Consumption (per run) : lessthan 0.1 ul. Recommended Sample Volume : 0.1 mLtube: 10 |iL  0.2 mL tube: 20 ui Micro Vial: 1~2 nL4.
