BioRemedy Pty Ltd - a subsidiary of Clayton Engineering products

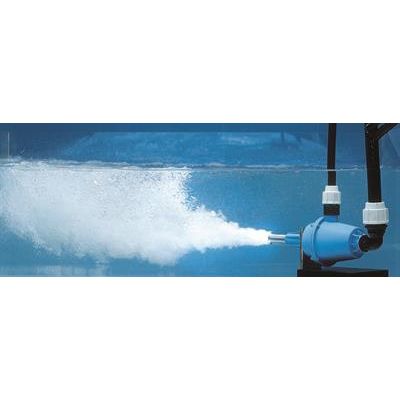

The Force 7.2 is a submersible lake and pond aerator, which oxygenates by drawing in and dispersing air at depth, in the form of micronised bubbles. The Force 7.2 is a compact, robust, but lightweight, easily handled aeration device with unrivalled performance characteristics. Being submersible in design, the unit can be positioned at depths of up to 15.0 metres below the water surface via the use of extension snorkels. The Force 7.2 lake and pond aerator can also be configured to mitigate stratification of water bodies by creating influencing currents at the surface or at depth, by pivoting the motor axis up to 35º above and below horizontal for specific applications.

The STORMIX 5.0 is a submersible aspiration lake and pond aerator, which oxygenates by drawing in and dispersing air at depth in the form of micronised bubbles.Being submersible in design, the motor unit can be positioned at depths of up to 3.0 metres below the water surface, via the use of extension snorkels. The STORMIX 5.0 lake and pond aerator can also be configured to mitigate stratification of water bodies by creating influencing currents at the surface or at depth, by pivoting the motor axis up to 35º above and below horizontal for specific applications.

The BRIO 1.0 is a water circulator used in applications to provide mixing, destratification, and circulation of a waterbody and provides effective algae control in lakes and ponds. The unit, when in operation, maintains constant water movement from the surface to the bed of a water body. Potential applications for BRIO 1.0 include effluent mixing, promotion of channel flow and provision of effective circulation to destratify waterbodies. The submersible motor unit provides direct drive to twin propellers (180 mm in diameter) rotating at 1400 RPM.

The RIO AG20 is a water circulator used in applications on larger water bodies to provide mixing, destratification, circulation and aeration, providing environmentally friendly and non-toxic algae control in lakes and ponds. The unit operation maintains constant water movement from the surface to the bed of a water body. The rotational operation of the propeller is designed to minimise damage to marine flora and fauna and lagoon infrastructure, providing power through a 15:1 reduction gearbox, to allow the large three-bladed propeller to rotate at 115 RPM.

This is a natural solution – use the sun to treat the water. This is the first system in Australia to employ solar power to horizontally circulate and aerate water bodies. The system has been fully engineered in Australia using 6 x 190W floating panels to produce power for a 3ph submersible motor.

ECO, a static aspiration aerator, which utilises the fundamental fluid dynamics principle, the Venturi Effect , to achieve a high efficiency aeration and circulation action, utilising existing infrastructure. The ECO operates by harnessing flow from a pumped source, and creating a differential pressure internally, allowing a suction capability. The ECO unit then is able to expel a mix of the pumped source flow and suction-produced flow. While most commonly used as an aeration (aspiration) device, utilising a water and air mixture, the unit could readily be used for chemical injection purposes (e.g dispersal of flocculates , algicides, etc).

The SPLASH 1/2001 is a surface-mounted aerator which oxygenates and destratifies by drawing water through a central column and dispersing a plume of water skyward. The twin-propeller design allows for dispersal of water both vertically and radially, enabling a greater volume of water to be dispersed into free air, facilitating a more efficient transfer of oxygen to water. Positioning is carried out by tethering from each of the unit’s four corners to static points on a lagoon bank.

The SPLASH 1/2008 is a surface-mounted aerator which oxygenates and destratifies by drawing water through a central column and dispersing a plume of water skyward. The twin-propeller design allows for dispersal of water both vertically and radially, enabling a greater volume of water to be dispersed into free air, facilitating a more efficient transfer of oxygen to water. Positioning is carried out by tethering from each of the unit’s four corners to static points on a lagoon bank.

The SPRINT 1.5 is a surface-mounted aerator which oxygenates and destratifies by drawing water through a central column and dispersing a plume of water skyward. The propeller design allows for dispersal of water both vertically and radially, enabling a greater volume of water to be dispersed into free air, facilitating a more efficient transfer of oxygen to water.  Positioning is carried out by tethering from each of the unit’s four corners to static points on a lagoon bank.

The Font N-Aire Platinum range of surface-mounted aerating and ornamental fountains oxygenate and destratify by drawing water through a central column and disperse a plume skyward. A specialised unit design allows for selection from a range of water plumes, affording an enhanced aesthetic during operation.
