BlazeCut products

BlazeCut has globally pioneered the advancement in cylinder-less fire suppression systems with the BlazeCut T series systems. The BlazeCut T Series system is a simple and cost effective fire protection device for small enclosures. The system consists of a heat-sensitive tube that is manufactured with a special proprietary thermal plastic and is closed by stainless steel fittings on each end. The tube has both a storage and a detection function, which means that the extinguishing agent is stored directly in the tube and no additional storage device such as a cylinder is required.

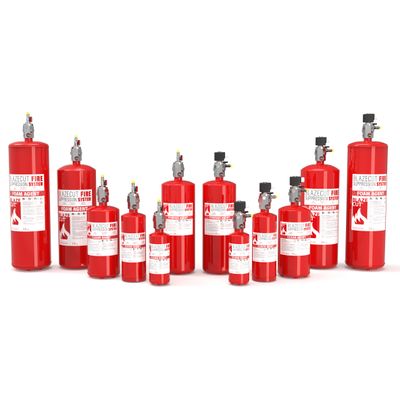

The installation of a BlazeCut C Series fire suppression system can provide a quick and effective response to fire on all types of equipment. BlazeCut`s fully customisable systems can provide the features and functions that are essential for protecting a wide range of assets.
Closed and semi closed spaces which are out of sight have an increased risk of fire and may lead to devastating consequences such as damaging property, interrupting business or in the worst case scenario losing lives. Engine compartments, server rooms, electrical cabinets, power generators and similar equipment are some examples of where such fires can occur.

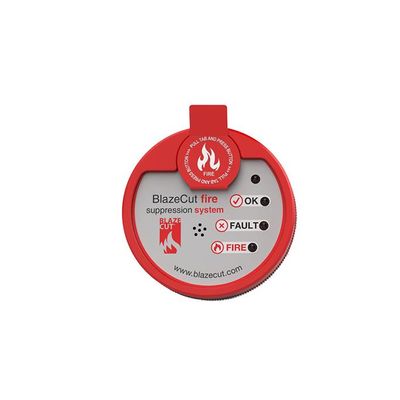

Manual actuation button with tamper seal. Programmable N/O-N/C relay output for fire signalling or equipment shut-down. Includes data logging and the ability to enter service data comments. Delay discharge and shutdown are programmable. Optional use of pressure transducer or pressure switch. Electrical circuit monitoring for faults. Compact 55mm diameter design and a depth of 35mm. Ingress Protection IP67 rated.

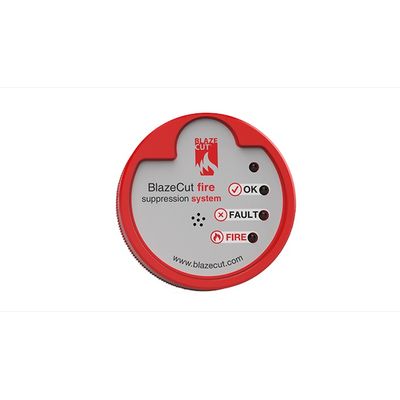

Programmable N/O-N/C relay output for fire signalling or equipment shut-down. Includes data logging and the ability to enter service data comments. Delay discharge and shutdown is programmable. Optional use of pressure transducer or pressure switch. Electrical circuit monitoring for faults. Compact 55mm diameter design and a depth of 35mm. Ingress Protection IP67 rated.

Pre-programed from the factory. N/O relay output for shutdown or fire signalling and low pressure. Used for any pressure switch system T Series and C Series (BlazeTube systems). Can be used as an electronic fire warning detection system (BlazeWire, heat detectors, heat probes etc). Circuit monitoring for faults. Compact 55mm diameter design and a depth of 35mm. Ingress Protection IP67 rated.

Durable aluminium body for harsh environments. Design allows for optional mounting; flush mounted or box mounted. Used for any pressure switch system T Series and C Series (BlazeTube Systems). Can be used as an electronic fire warning detection system (BlazeWire, heat detectors, heat probes etc). Electrical circuit monitoring for faults. Small footprint design measuring 64×58 mm and a depth of 30mm. Test Button. Ingress Protection IP67 rated.

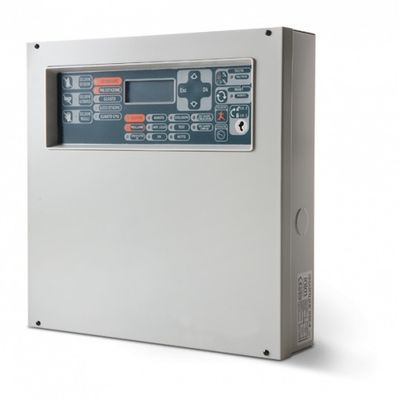

Suitable for fixed indoor applications only. 4 conventional zones expandable to 20. Supports up to 32 devices per zone. System programming from the control panel. Backlit graphic display. Slim profile metal enclosure.

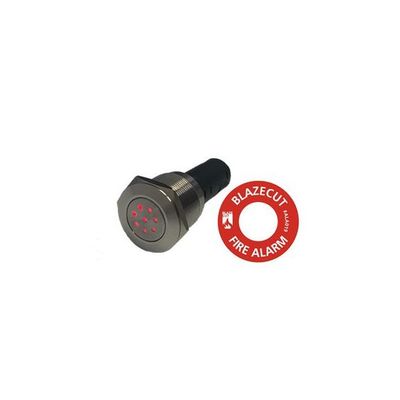

Simple compact warning device (30mm diameter). Design allows for flush mounting to dashboard or panel. Used with T Series pressure switch models. 12v or 24v operation. Red visual LED alert
>80db audio buzzer.
