Bosch Rexroth AG products

Nominal pressure 250 bar, piston Ø 40 ... 320 mm, piston rod Ø 22 ... 220 mm, stroke length up to 6000 mm

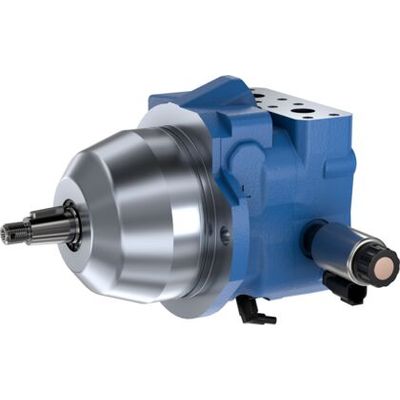

Reversible axial piston motor for fan drives. Size 18 … 45.  Nominal pressure 280 bar. Maximum pressure 350 bar. Open circuit.

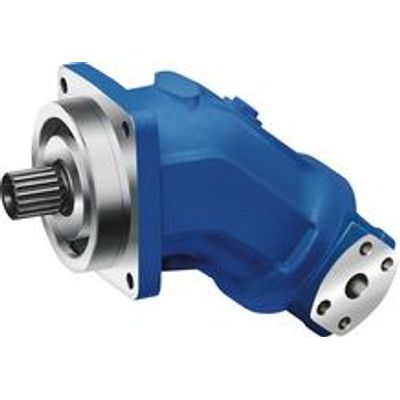

Compact high-pressure motor with short length. Size 23 … 180. Nominal pressure up to 450 bar. Maximum pressure up to 500 bar. Open and closed circuit.

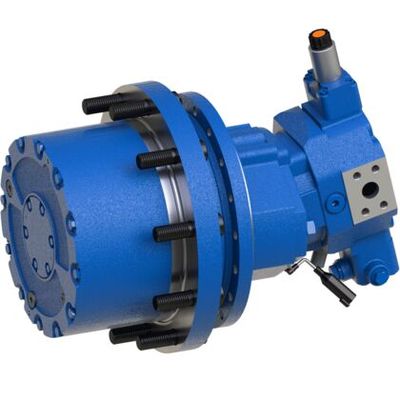

For the travel drive of tracked and wheeled vehicles. Two- or three-stage planetary gearboxes. Can be combined with a wide range of Rexroth motors. Perfect coordination of gearbox and hydraulic motor. Output torque 7000 … 130000 Nm.

Compact hydraulic controls for 1 vertical stacking of size 10. Base element for ready-for-connection controls in vertical stacking design. Compacter hydraulic control block. Common pump and tank line. Separate actuator ports of the stations and measuring ports G1/4 in A and B.
