BP Metalmeccanica srl products

The drawer compactors produced by BP Metalmeccanica are ideal equipment for the reduction of the volume of any type of bulky refuse (paper, cardboard, plastic, wood, metal containers, etc. ...) considering a large saving in transport costs and cleaning in storage areas. They are built with quality steels in the form of trunk / conical to facilitate the emptying of the waste. The operation in connection with electro-380V. can be automatic, semiautomatic or manual. The cabinet is equipped with PLC and approved to EEC standards. The hydraulic power unit with 10 hp engine allows you to develop compaction force of 25 and 50 tons. with a maximum working pressure of 200 bar. The upper hatch operates hydraulically with connection to the means of transport`s system.

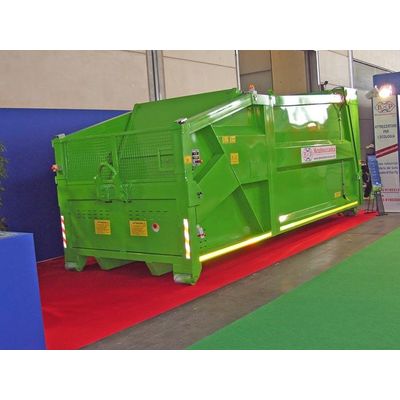

The compactors produced by BP Metalmeccanica are ideal equipment for the reduction of the volume of any type of bulky refuse (paper, cardboard, plastic, wood, metal containers, etc. ..) allowing considerable savings in transport costs and cleaning areas storage. They are built with quality steel in the shape of truncated cone with oblique geometry for easy disposal of waste. The electrohydraulic working with a network connection 380 V can be automatic, semiautomatic or manual.The cabinet equipped with PLC is certified according to EEC standards. The hydraulic pump motor with 7.5 to 11 kW allows to develop compaction force from 35 to 50 ton with a maximum working pressure of 250 bar.

BP Metalmeccanica srl, always careful to environmental problems, has designed an equipment for the separation of aggregates from the washing water of concrete mixing plants, concrete mixers and concrete pumps. The Vibrowash machine works with vibrating screen system, requires a special structure (bath) for the collection of water which are then reused for the production of concrete. It is equipped with hopper accumulation of residues of washing which are then treated with the machine, and then separate the solid part (inert) from the liquid one.

BP Metalmeccanica s.r.l., always attentive to ecological problems, has studied equipment for separating inertes from the washing waters of concrete, concrete mixers and concrete pumps. The VIBROWASH machine works with the vibrating system, it needs a special structure for the collection of water, which is then reused for the production of concrete.

Machines are particularly suitable for reducing the volume of bulky waste, such as: paper, cardboard, plastic packaging in general. They are produced in three versions for power and size, electro hydraulic operation by network connection to 380V of automatic type, semiautomatic or manual. Electric panel equipped with PLC that allows to the machine to operate in synchronism with any supply systems materials. Hydraulic unit with double gear pump that allows the machine to reach thrust forces from 20 to 45 tons. with a working pressure of 200 bar. The machine can be equipped with a loading hopper whose dimensions can change in base of customer`s request. They can be assembled on roll-off structure to simplify the handling.
