The BVS420 is a vibration velocity sensor specifically designed for the continuous monitoring of rotating machines, adhering to the standards set by DIN/ISO 10816. It offers a 4...20mA current loop signal corresponding to the RMS value of vibration velocity, which can be directly interfaced with MCR technology like limit value relays and PLCs. A key feature is its unique self-test input that electrostatically charges the internal sensor element to assess the complete functionality of the sensor, indicated by an output signal exceeding 20mA. Encased in a water-resistant stainless steel housing with an M8 threaded hole for secure attachment, it connects electrically via a 4-pin M12 flange plug. Ideal for applications across various machinery where vibration monitoring is crucial, including fans, compressors, and more, the BVS420 ensures reliable detection of imbalances and forced vibrations.

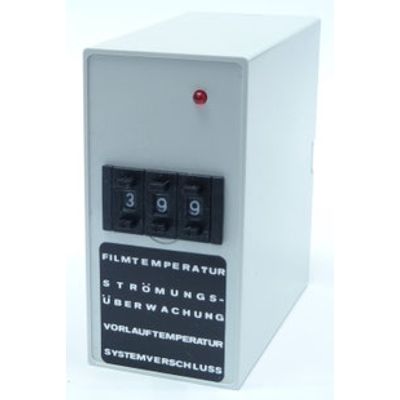

0...399°C. Sensor PT100 or Fe-CuNi. Supply 230V AC or 24V DC. Output relay contact.

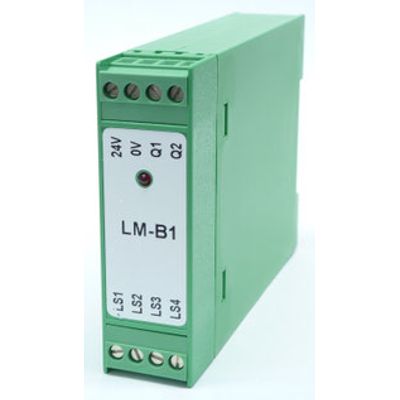

LEAKAGE - MODUL for Honeywell-Sensors; Supply 24V DC; Output relay contact.

Sensor PT100 in 3-wire-circuit. Supply 24V DC. Output voltage or current.

Input Retroreflex. Supply 230V AC. Output relaycontact. Front panel housing 72 x 36 mm.
