Brugg Rohrsystem AG products

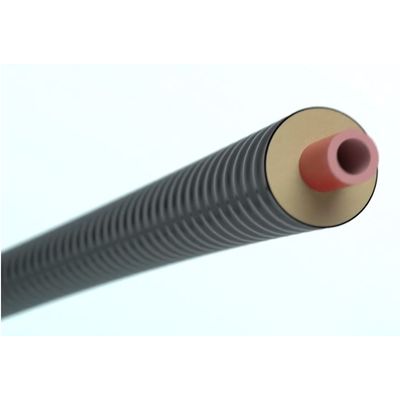

Our CALPEX PUR-KING pre-insulated,flexible pipe is the world champion in terms of energy efficiency its patented insulation material has a thermal conductivity of only λ 0.0199 W/mK, thereby surpassing a magical threshold.

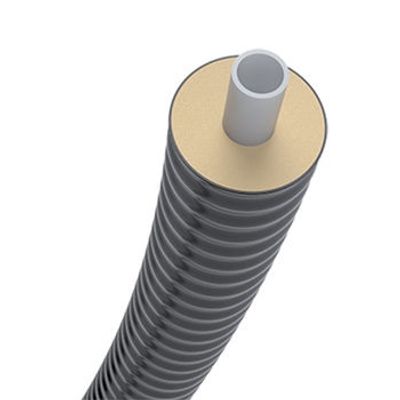

The patented CALPEX UNO with a PEX-a carrier pipe is a flexible, continuous and self-compensating sanitary pipe system. Pipe with an inner pipe. Operating temperature: Max. 203 °F (fluctuating). Operating pressure: PN 10. Dimensions: DN 15–50. Carrier pipe: PEX-a. Insulation: Polyurethane (PUR). Application: Service water and drinking water pipe. We look forward to hearing from you..

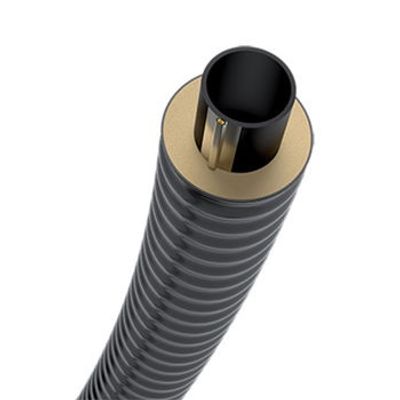

The EIGERFLEX is a flexible, continuous, insulated hot water pipe system with integrated frost-protection strip. Operating temperature: -22 to +68 °F. Operating pressure: PN 16. Dimensions: DN 20–100. Carrier pipe: PE 100. Insulation: Polyurethane (PUR). .Application: Cold and waste water pipes that cannot be laid at a depth that is safe from frost.

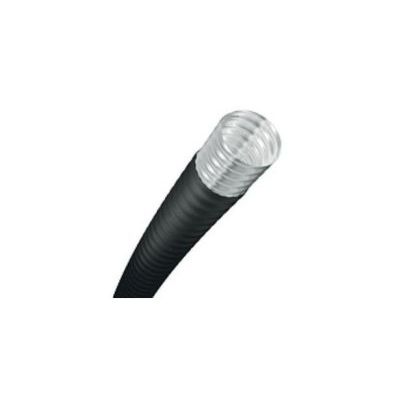

NIROFLEX is a flexible corrugated stainless steel pipe system and is ideal for transporting liquids, as a protective pipe or as a heat exchanger pipe. The NIROFLEX CNT with installation protection casing made of LDPE is available to be laid underground.

The EIGERFLEX is a flexible, continuous, insulated hot water pipe system with integrated frost-protection strip. Operating temperature: -30 to +20°C. Operating pressure: PN 16. Dimensions: DN 20–100. Carrier pipe: PE 100. Insulation: Polyurethane (PUR). Application: Cold and waste water pipes that cannot be laid at a depth that is safe from frost. We look forward to hearing from you.

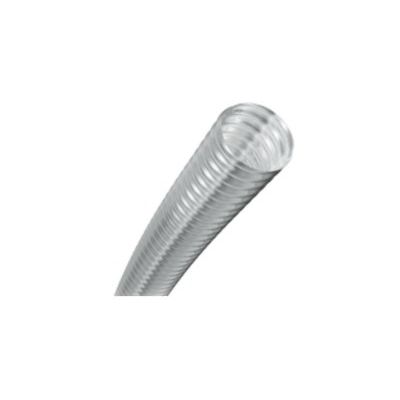

Flexible, single-walled pipe system with a stainless steel inner pipe as a supply line for fuel in gas station construction

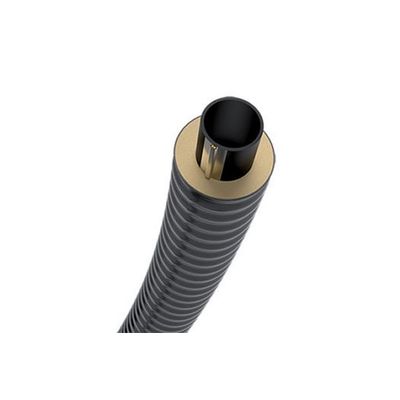

The EIGERFLEX LONGLINE is a flexible, continuous, insulated hot water pipe system with integrated heating tapes for heating circuit lengths up to 1000 m with one power input. Operating temperature: -22 to +68 °F. Operating pressure: PN 16. Dimensions: DN 40–125. Carrier pipe: PE 100. Insulation: Polyurethane (PUR). Application: Cold and waste water pipes that cannot be laid at a depth that is safe from frost..

The COOLMANT is a rigid insulated cooling or cold water pipe system with a PE medium pipe. Operating temperature: -20 °C to +40 °C *. Operating pressure: PN 16. Dimensions: ø 125 - 315 mm. Medium pipe: PE100. Thermal insulation: Polyurethane (PUR).
