BSP-TEX products

The DX Range of Hydraulic Piling hammers are designed for small bearing piles of steel, timber, concrete and many sheet piles. The DX hammer is available with back guides for operating from a piling mast or a slider when operating from an excavator.

The SL hydraulic piling hammers are compact, powerful and versatile. They are designed for driving sheet piles and small bearing piles of concrete, steel or timber. The SL30 hammer has a drop weight of 2500kg, impact energy of 30kN.m, and a maximum blow rate of 84 blows per minute. The SL30 hammer can drive piles to an ultimate load bearing capacity of 2500kN. They are available with legs and inserts for crane suspended use or with backguides for operating from a piling rig, piling mast or leader.

The LX hydraulic hammer range of powerful yet lightweight hammers have been designed to provide greater stability to piling rigs. The LX hammers provide an economical solution for the installation of all types of piles. The four hammers, LX30, LX40, LX50 and LX60 in the range are capable of driving steel, concrete or timber piles in a variety of soil conditions. Drop-weights extend from 2.5t up to 7t while impact energy ranges from 20kNm up to 55kNm.

CX hydraulic piling hammers are designed for driving sheet piles, tube and H-piles, concrete piles, combiwall and wooden piles. The CX range of piling hammers are designed for driving a wide range of bearing or sheet piles. Available with legs and inserts or tube pile guides for use freely suspended, or with back guides for operating from a Hydraulic piling rig or leaders. The hammers are capable of driving Steel or Concrete piles to an ultimate load bearing capacity of up to 8000kN.

CXL hydraulic piling hammers are designed for driving sheet piles, tube and H-piles, concrete piles, combiwall and wooden piles. Available with legs and inserts or tube pile guides for use freely suspended, or with back guides for operating from a hydraulic piling rig or leaders. CXL hammers are capable of driving steel or concrete piles to an ultimate load bearing capacity of up to 11000kN. Features include total control of hammer stroke and blow rate, precise matching of energy to suit the pile driving requirements. In addition, changing the drive cap dolly is quick and easy.

All the CG piling hammers are designed for driving a variety of bearing piles including steel tube, combipiles, H-sections, raked/batter piles and reinforced/prestressed concrete piles and can be operated from piling rig leaders or crane suspended.

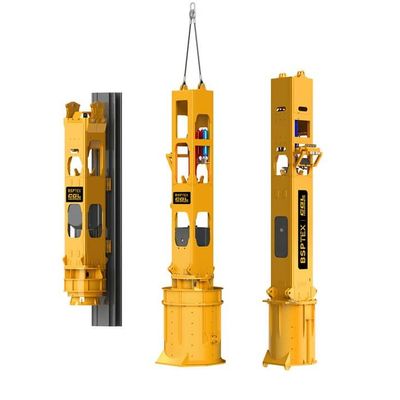

The CGL hammers can be used crane suspended or configured with backguides for leader use. All the CGL piling hammers are designed for driving a variety of bearing piles including steel tubes, combi-piles, H-sections, raked or batter piles and reinforced/prestressed concrete piles. Piles up to 2m in diameter can be driven as standard, and with special attachments, larger diameters can be accommodated.

The JX Piling Rig is mobile, self-erecting and radiocontrolled. The rig is mounted on a JCB base unit, uses a 12.5m single piling mast, and any one of the three BSP-TEX hydraulically accelerated piling hammers from the DX range. The JX Piling Rig is capable of driving steel, wood or concrete piles up to 8m in length.

BSP-TEX Hydropacks are used to power hydraulic pile driving hammers. Diesel power is provided by either Caterpillar or Perkins series industrial engines. All engines are turbocharged and after-cooled, and Hydropacks are exceptionally reliable and easy to maintain. Engine emission status is selected according to location.
