The horizontal ram compactor is ideal for compaction of municipal solid waste and similar; packaging waste (paper boxes, cardboard, cellophane, polystyrene); materials easily reduced in volume (plastic bottles, lightweight plastic boxes, waste from industrial processes).

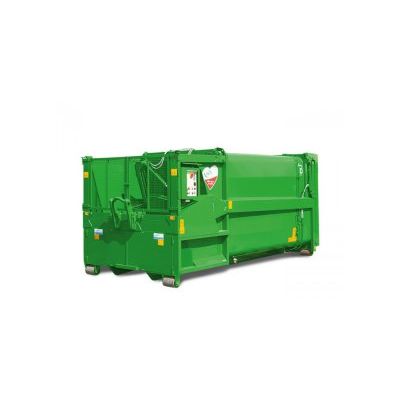

The single blade compactor is ideal for compacting moist municipal solid waste and bulky materials. The bottom of the compression chamber constructed with a single plate creates a chute that enters the box directly. The oil-hydraulic unit is placed under the bottom plate, thus achieving a fully watertight structure. The single blade compactor features a compacting system consisting of a blade sliding on bronze shoes within “Hoesch” guide rails, hinged at the top onto the compactor’s frame to permit the tilting motion. The waste is compacted by the tilting movement of the two guide rails. The blade is moved vertically by oil-hydraulic cylinders. The compacting system assures a thrust up to 50 tonnes.

The screw compactor is ideal for reducing the volume of dry and recyclable waste such as packaging, plastic, paper, cardboard, wood (boxes, pallets). The screw shape, conical and with variable pitch, performs break-up, conveyance and compacting action on the material inside the box. Movement is rotary and continuous. A transducer detects power intake of the electric motor and controls clockwise and anti-clockwise screw rotation through the PLC in the electric panel. Crushing of the material and high thrust generated by the screw assure achieving a high compression ratio compared to conventional compactors, thus obtaining high loads.

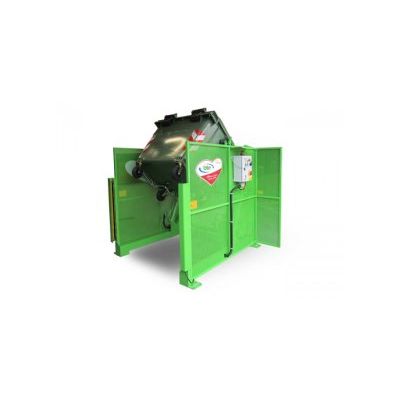

Power unit 3 kW. Control panel. Photoelectric guard. Standard device for four wheeled bins (DIN mount for 660 – 770 - 1000 – 1100 litre) open top or with flat cover.

The BTE stationary presses are the ideal solution for the reduction of bulky materials such as packaging, cartons, paper, plastic bottles, production waste such as trimmings and residues from the die cutting of cardboard and fabric. They are customisable in versions for manual or automatic operation (e.g.: Conveyor belts, bin tilters, conveyors, etc.).

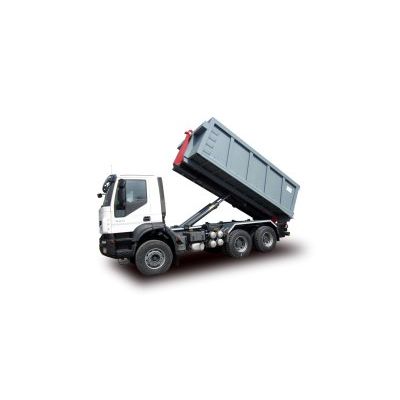

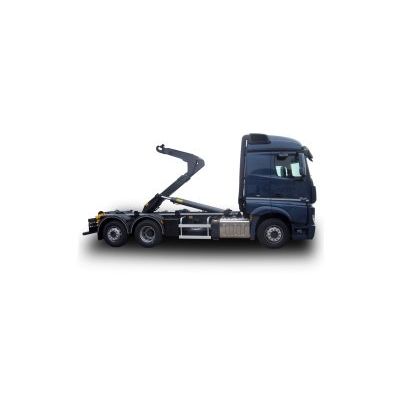

3 axles vehicles (max plated weights 26000 Kg) equipped with hook lift systems.Hook lifts equipment for loading and unloading of interchangeable roll on-off containers and compactors. Our standard models can be completed with supplementary optionals to satisfy any customer’s requirements.

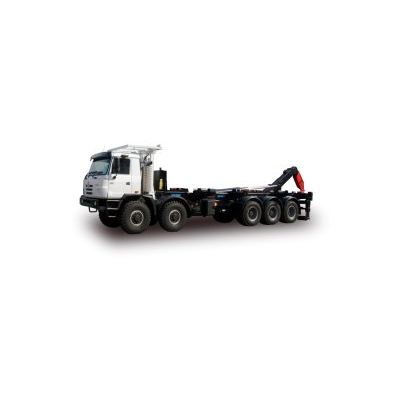

4 axles vehicles (max plated weights 32000 Kg) equipped with hook lift systems.Hook lifts equipment for loading and unloading of interchangeable roll on-off containers and compactors. Our standard models can be completed with supplementary optionals to satisfy any customer’s requirements.

Special Application Mining Hooklift, 40 ton lifting capacity, 9 mt container lenght.Adjustable heigth hook post.Proposrtional joystick control in cabin.Camera controlled operation from the cabin.
