BUD Industries Inc. products

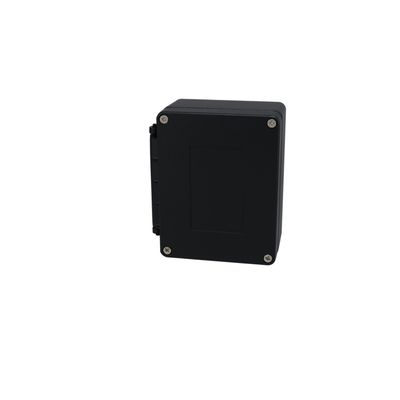

Hinged cover allows for easy access without risk of damage to cover. External mounting brackets allow the box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment. Rugged aluminum alloy die cast box with NEMA4X and IP66 ratings. Available in black powder coat finish. Gasketed covers attach with M4 stainless steel screws. Easily machined and modified to your particular requirements.

Hinged cover allows for easy access without risk of damage to cover. External mounting brackets allow the box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment. Rugged aluminum alloy die cast box with NEMA4X and IP66 ratings. Available in black powder coat finish. Gasketed covers attach with M4 stainless steel screws. Easily machined and modified to your particular requirements.

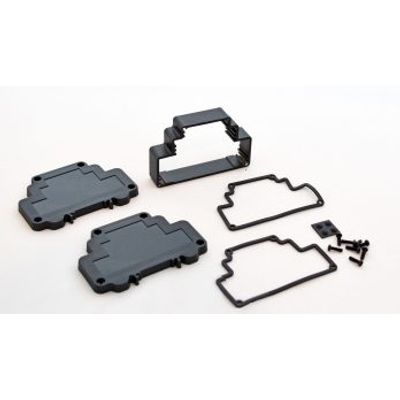

Designed to mount over a DIN rail while offering all the advantages of an aluminum construction. Comes standard with an EPDM gasket (IP66) and a polycarbonate covers UL94-V0. Extruded aluminum enclosure with plastic panels. Can be used independently or mounted on a DIN EN60715 (35 mm) rail. Plastic panels incorporate a tongue and groove sealing design, with a continuous EPDM gasket designed to meet IP66 rating. Body: Aluminum alloy 6063. Plastic end panels: Polycarbonate, flammability rating of UL94-V0. Gasket: EPDM molded (E-4382). Color: Black (RAL9005). Different length of the aluminum enclosure can be special ordered (minimum ordering quantity will be required). Optional clear and infrared polycarbonate plastic covers available. Bud can modify the enclosure with drilled holes and special cutouts.

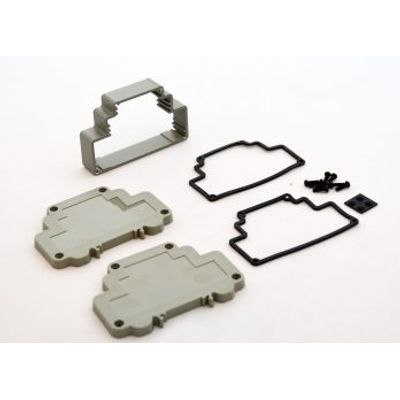

Designed to mount over a DIN rail while offering all the advantages of an aluminum construction. Comes standard with an EPDM gasket (IP66) and a polycarbonate covers UL94-V0. Extruded aluminum enclosure with plastic panels. Can be used independently or mounted on a DIN EN60715 (35 mm) rail. Plastic panels incorporate a tongue and groove sealing design, with a continuous EPDM gasket designed to meet IP66 rating. Body: Aluminum alloy 6063. Plastic end panels: Polycarbonate, flammability rating of UL94-V0. Gasket: EPDM molded (E-4382). Color: Gray (RAL7023). Different length of the aluminum enclosure can be special ordered (minimum ordering quantity will be required). Optional clear and infrared polycarbonate plastic covers available. Bud can modify the enclosure with drilled holes and special cutouts.
