C-Tech Innovation products

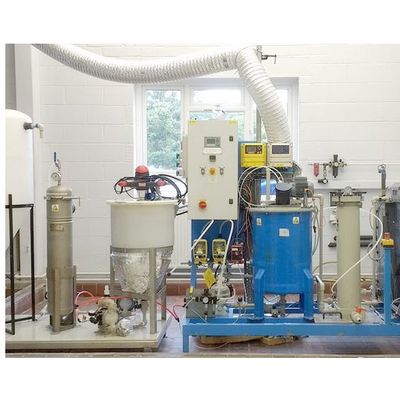

Our range of electrochemical systems for metal removal and recovery are ideally suited for applications where standard approaches are not effective. Our systems provide significant gains in reliability, productivity and reduced operating costs. C-Tech systems have been deployed successfully in industrial applications around the world.

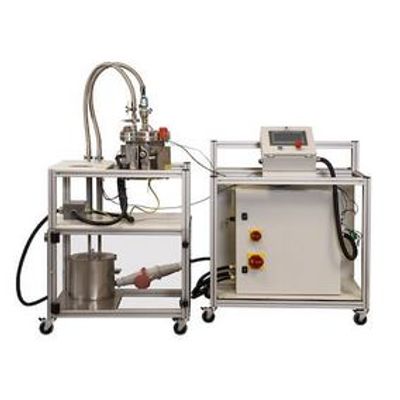

C-Wave PLT is a continuous microwave reactor designed for R&D and pilot scale development work. It can be supplied as a self-contained unit or for integration into other equipment. It is capable of handling flammable solvents and operating at high pressure. A unit is available for trial.

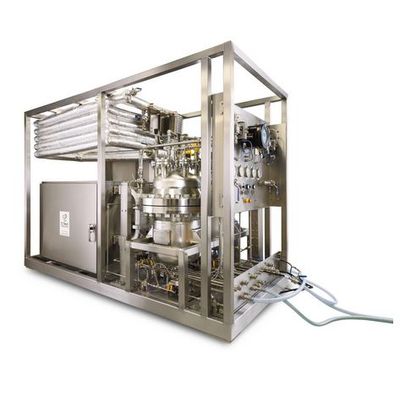

As a world leader in the scale up of continuous flow microwave reactors, C-Tech is proud to offer the C-Wave PRD. A proprietary production continuous flow microwave reactor, it is supplied as a skid mounted self-contained unit, capable of operating up to 250oC and 30 bar pressure.

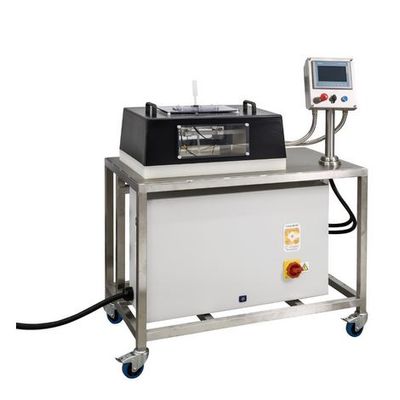

C-Joule LAB 100 is a laboratory scale atmospheric batch Ohmic heater capable of heating a wide range of products. Ohmic heating produces a rapid and uniform temperature rise throughout the product by heating the medium directly and from within.

The C-Flow LAB 1×1 is an easy to use, flexible, hand-assembly laboratory electrochemical cell developed from our experience of creating equipment specifically for R&D purposes. The C-Flow Lab 1×1 has a 10mm x 10mm electrode area and is designed with a working volume of 1 ml of electrolyte from inlet to outlet, ideal for working with exotic or expensive solutions. The C-Flow Lab 1×1 is a general purpose cell and is ideal for use in a R&D or laboratory settings for proof of concept work. The units are used by industrial, research and educational clients globally.

C-Joule LAB 100 is a laboratory scale atmospheric batch Ohmic heater capable of heating a wide range of products. Ohmic heating produces a rapid and uniform temperature rise throughout the product by heating the medium directly and from within.

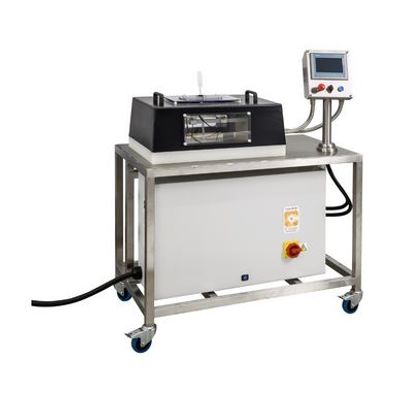

C-Joule LAB 150 is the pressurised version of our C-Joule LAB 100 and operates at temperatures up 150 °C. It is a laboratory scale pressurised batch Ohmic heater capable of heating a wide range of products using a volumetric heating technique that does not involve the use of hot surfaces.
