Cabur S.r.l. products

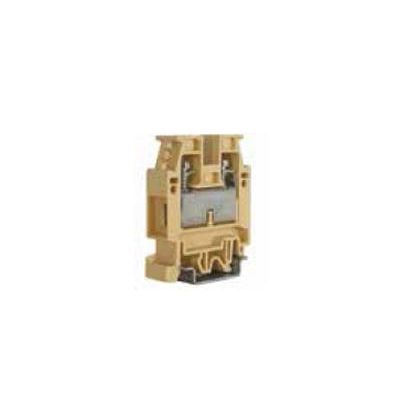

For flexible/rigid conductors from 0.5 to 25 mm2. Nominal current according to CEI EN  609-47-7-1  76 A. Nominal voltage according to CEI 60947-7-1 1.000 V. Height/Width/Thickness (mm) TH/35 7.5mm 57/47/12, TH/35 15mm 65/47/ 12. Quantity per pack 50

Description Rail assembly with 2 holes ø 7.5 mm + 5 holes ø 5.4 mm.

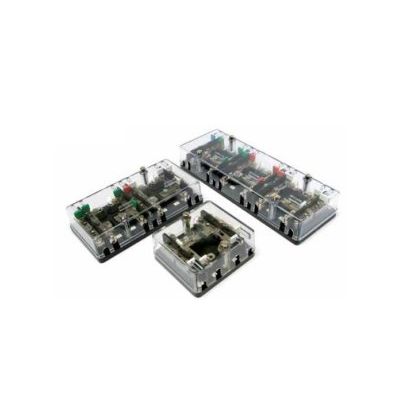

Cabur control rail assemblies are designed to allow electricity providers and Users the possibility of easily checking on the measuring instruments, without interrupting current flow during control or during possible replacement of the instruments. ENEL has adopted a special colour system to identify phases according to the geographic areas where the rail assemblies will be installed. Every rail assembly is composed of an insulating base which holds the terminal blocks, in copper-zinc alloy, of the volt and amp meter circuits, and the devices for disconnection and short circuit operations. The base of the single-phase rail assembly is made of heat-hardened resin (black phenol resin). For the biand three-phase rail assemblies, the insulating base is made of Kelon (Keramic + Nylon).

The product line for industrial marking systems offered by Cabur is able to respond to most of the professional marking requirements in the electrical field. In 2017, the Company expanded its range of products introducing the new SmartPrint and SmartRoll, the printers based on the thermal transfer technology. CaburJet is the inkjet printer, ideal for large print volumes. SmartPrint and SmartRoll are managed by MarKing Pro XT, a software designed to generate alphanumeric codes, import files and logos, create plates, and generate barcode and QRcode.
