Caframo Lab Solutions Limited products

A powerful combination of torque and electronic sophistication. The robust ½ horsepower motor, PC/PLC communications and extensive features make the Caframo Crossover unparalleled in the market. Mixing up to 200 litres (55 gallons) of basic pre-mix, industrial pilot plant volumes, or full production batches, this portable mixer weighs only 12 kg (26.5 lb). The resistive touch screen enables simple feature operation (timers, alarms, rotation direction, resume on power up, start, stop) without removing your gloves!

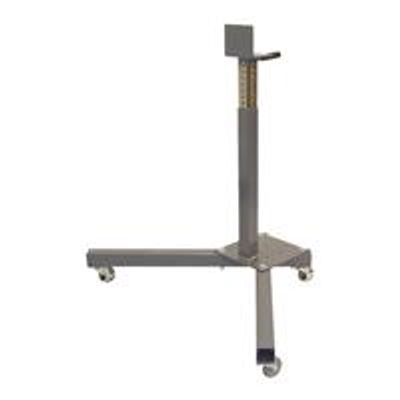

This manual lift, heavy duty stand and base provides a solid mount for the Caframo Crossover when mixing in drums or tanks up to 122 cm (48 in) in diameter.  This stand comes with a removable caster base which allows the stand to be installed permanently to the floor or any surface.  The four swiveling caster base provides smooth travel and easy portability.  When relocation is complete, two casters lock in place.  Height is manually adjusted, in one inch increments secured in place by a clevis pin.  The vertical mounting plate provides a clamping surface for the C-clamp to attach to – easy one person installation.

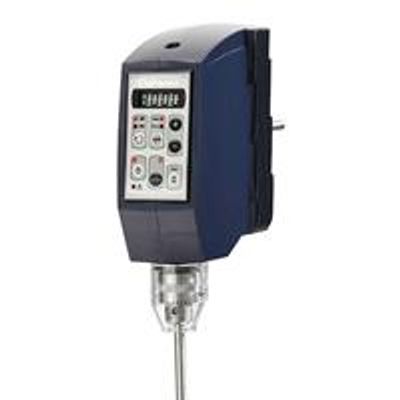

Caframo’s Ultra Torque 1850 lives up to its name, delivering high torque mixing action within the footprint of a bench top overhead stirrer.  This model is a proven performer for cream and gel formulations, paint grinds, premixes, and small scale production batches.  The TENV housing and quality construction are a match in industrial, food, and pharma manufacturing environments.  You are guaranteed to get more power out of your Caframo stirrer.

The perfect combination of higher torque and higher speed, Caframo’s Universal 3030 offers versatility to conquer the widest range of applications by a bench top stirrer.  From larger batches of buffers and media to lotions and slurries, this stirrer will exceed your expectations.  Ideal for workplaces with changing mixing needs as the business evolves, the 3030 will provide the most value for your overhead stirrer investment. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty.

Caframo’s Ultra Speed 6015 produces results in high speed applications, including emulsions, microencapsulations, low viscosity slurries and high shear dispersions of powders.  Digital display and precision control of speed settings make repeatability of process easy.  Safety features shut down the stirrer if there is overheating or torque overload, ensuring a long stirrer life.  Operate with speeds up to 6000 rpm with peace of mind. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty.

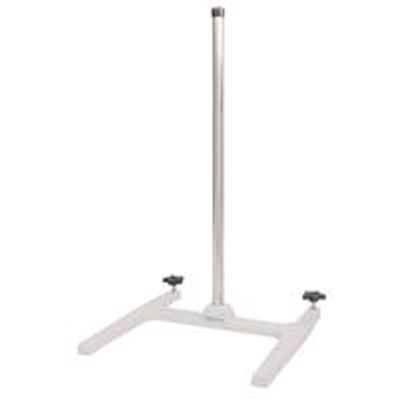

This durable stand provides excellent stability for bench stop stirrers even when agitating viscous materials. The wide base and H configuration allow for a wide range of vessel sizes, while the 711 mm (28 in) stand rod enables strong engagement with stand clamp. Portable and adaptable to address changing work spaces, equipment, and priorities. Additional rods of 965 mm (38 in) and 1219 mm (48 in) lengths are available, all interchangeable with the common base. The cast zinc-aluminum alloy base is coated for protection from corrosion and chemical spills.

Sturdy stand in a smaller bench footprint, for Caframo compact stirrer models BDC2002 and BDC2010. The unique offset design accommodates Caframo clamp so stirrer locates impeller in centre of vessel. The cast zinc-aluminum alloy base is coated for protection from corrosion and chemical spills.

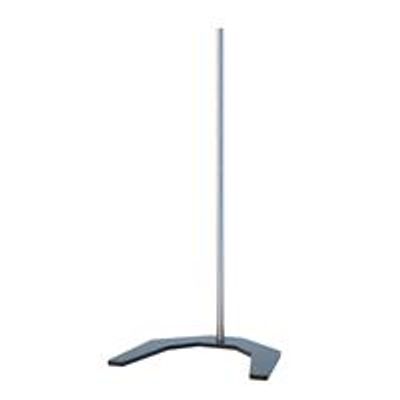

Support stand for Caframo’s BDC250 Petite Stirrer. Conveniently portable and easy to assemble for changing work stations or field work. The mild steel base is coated for protection from corrosion and chemical spills. Included as part of BDC250 stirrer package.

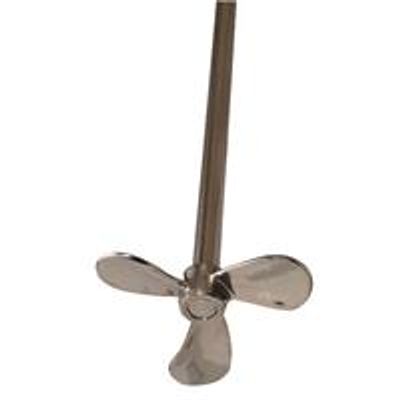

Blade and shaft are conveniently bundled together, able to address a variety of stirring applications. This axial flow impeller is effective for low shear mixing. The 25 mm (1 in) diameter blade fixes to an 8 mm (⁵⁄₁₆ in) diameter shaft with included set screws. Blade and shaft are both 316L stainless steel, with the propeller blade electropolished finish and the shaft with passivated finish.

This popular impeller serves a wide range of stirring applications, pairing the blade and shaft in a convenient package. This axial flow impeller is effective for high speed, low to medium viscosity mixing. The 64 mm (2 ½ in) diameter­­ blade fixes to an 8 mm (⁵⁄₁₆ in) diameter shaft with included set screws. Blade and shaft are electropolished 316L stainless steel. For low shear, high top to bottom pumping capacity with high gas injection, able to vortex 19 L (5 gal) of water at 3600 rpm. This product replaces the Pitched Blade Propeller Model A160.
