Cambria County Association products

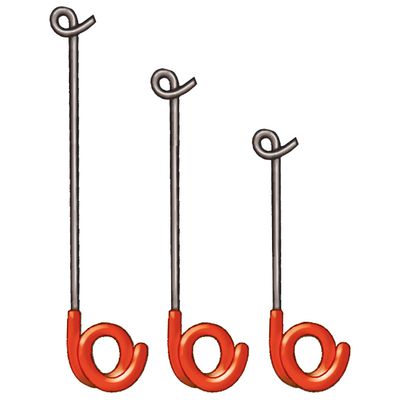

CAB Blasting Wire Hooks are designed to safely isolate blasting or other wiring from the roof, electrical cables or structure.  A 1″ (25mm) diameter 540º bottom loop securely retains wires in carrier.  The 1/2″ (13mm) top spiral loop design prevents dislodging of hanger after installation.

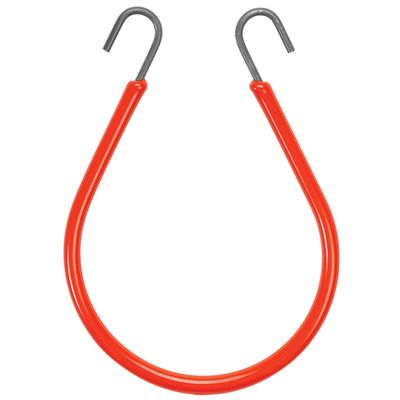

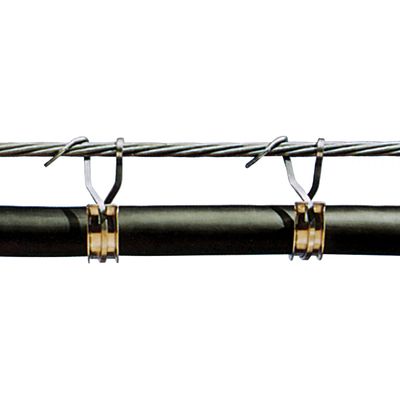

CAB Bosserman Clips are widely respected for their superior ability to safely suspend electrical cables and wiring in a variety of underground applications. CAB Bosserman Clips feature a plastisol coated high tensile spring steel body and locking arm to prevent pull out and slippage. This improved hanger combines all the advantages of steel and plastic for the highest level of performance and safety underground.

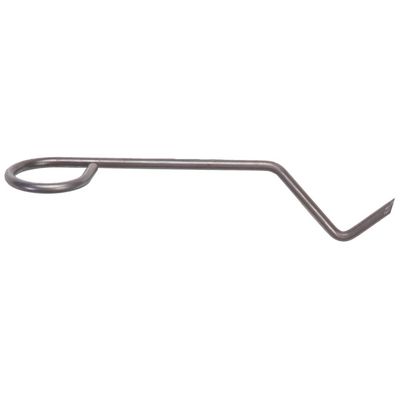

CAB Brattice Hangers are designed to quickly and easily suspend brattice cloth from the mine roof. Sharp offset tip keeps brattice tight to the roof. Made from .187 (4.7mm) wire, 7″ (178mm) long with 1-1/8″ (29mm) or 1-1/2″ (38mm) diameter hole.  For proper installation, hanger must be placed on end of roof bolt between the plate and the roof of the mine.

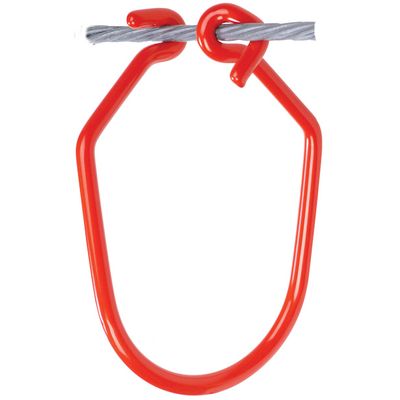

CAB Cable Clips provide versatile, high quality cable support in a wide variety of applications. CAB Cable Clips are offered in many sizes in both round and flat wire designs. Easy to squeeze and latch for quick installation. These strong, versatile hangers may be used to support pipes or cable from messenger wire, plates, wire mesh, or other structures. Made from .156″ (4mm) high carbon spring steel wire. Coated with abrasion resistant, high dielectric grade plastisol for added safety and protection of cables. Totally coated versions provide added insulation and corrosion resistance. Long-style Cable Clips offer extra capacity for larger loads. Custom sizes are available.

Fully insulated steel pull hooks are designed to safely move mine trailing cables. Especially useful in safety programs designed to reduce back injuries. Manufactured from 3/8” (10mm)diameter cold rolled steel with heavy coating of high dielectric grade plastisol for added protection. Note: Cable Pullers are not designed for lifting.

CAB Cable Rings and Saddles deliver safe, strong and durable support for all types of electrical, communications and control wiring. They perform as a high quality mini-cable tray system for a fraction of the cost of cable tray.

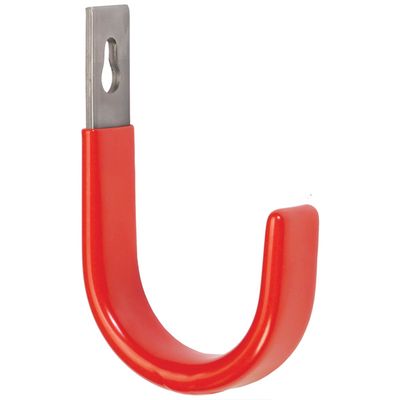

J-Hooks offer safe, strong support for sidewall applications. Keyhole has 1/2” (13mm) opening and 5/16” (8mm) slot. Made in wide variety of  sizes in both plain and hot dipped galvanized steel. Please call for information on sizes and varieties available.

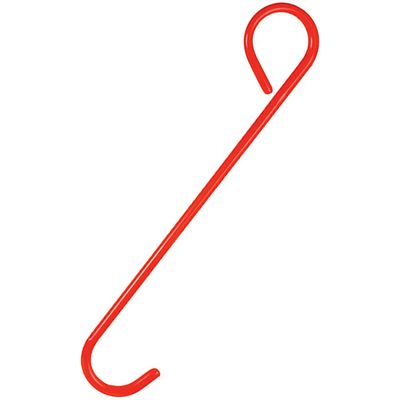

CAB Loop Top J-Hooks are designed with a 1-3/8” (35mm) diameter top loop for versatility in hanging from roof or other structure. Variety of other sizes and custom lengths available. Please call for more information.

CAB Double J-Hooks are a  favorite for hanging multiple cables from the mine roof. 3″ (76mm) diameter hooks with 5/8” (16mm) diameter top loop. CAB 213 and 155 top loop made from .187 (4.7mm) diameter wire; CAB 156 and CAB 4691 from .250″ (6.4mm) wire.

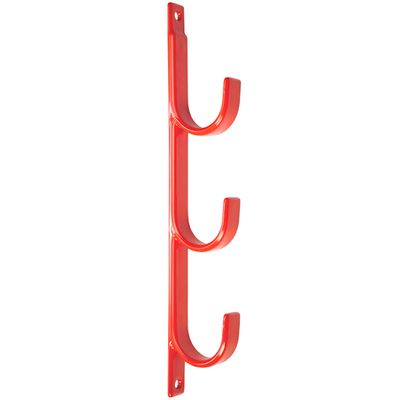

CAB Side Mount J-Hooks are heavy duty supports designed to carry multiple cables. Especially effective in highly corrosive environments. Carriers are 3″ (76mm) diameter. Can be custom made with any number or size carriers required.
