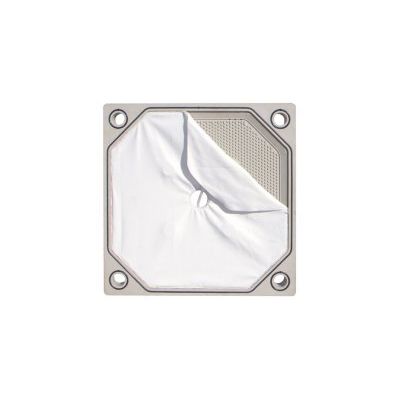

Filter plate is the core part of filter press; different materials, models and qualities affect the whole machine’s filtration performance directly, its feeding hole, filtering point distribution (filtering channel) and water discharging channels have different designs according to different materials, our filter plate adopts TPE elastomer and high intensity PP, which make the filter plate has the flexibility rubber plate, the tenacity and rigidity polypropylene plate that ensuring the air-tightness of the filter plate during the progress of pressing, all technical index of our filter plate strictly complies with EU standard. The maximum membrane inflation pressure of our high pressure PP membrane filter plate can be up to 4.0Mpa, which represents the most advanced level around the world.

Filter Cloth is very important for the filtration performence; in order to achieve better requirements, we have a complate set of German filter cloth production line and technology, the heavy German rapier looms weave the thinnest silk threads into filter cloth of high density and different hole patterns by using 0.3-3.5 tons beating-up force after each weft across warp. under same area the filtration holes of our cloth are 50% more than other filter cloth, which improve the filtration speed greatly, the filter cloth was woven under constant temperature and humidity, which eliminate the fabric burrs caused by static electricity, the most important is that monofilament filter cloth can make the filter cakes fall off automatically, We have a thousand different materials to better meet our customers’ needs.

Model Number: SCP-334. Size (mm): 1210*2420MM,600*1220MM, other size as your request. Weight (g/m2): 1480-1600. Thickness (mm): 3.6-4.0. Flow Rate (p0.03bar s.50ml. 10cm): 30′–40′. Density (g/cm³): 0.41. Bursting Strength Wet (kpa): ≥180. Shape: we can cut and hole as your request. Ash (%): 44. Micron Rating (μm): 0.45.

Model Number:  SCP-111. Size (mm):  1210*2420MM,600*1220MM, other   size as your request. Weight (g/m2):  1100-1200. Thickness (mm):  3.7-4.0. Flow   Rate: (p0.03bar   s.50ml. 10cm), 50”–1’30”. Density (g/cm³):  0.29. Bursting   Strength Wet (kpa):  ≥950. Shape:  we can cut  hole as your   request. Ash (%):<1. Micron Rating (μm):  45-62.

Model Number: SCP-333. Size (mm): 1210*2420MM,600*1220MM, other size as your request. Weight (g/m2): 1350-1450. Thickness (mm): 3.4–4.0. Flow Rate (p0.03bar s.50ml. 10cm): 20′-30′. Density(g/cm³): 0.37–0.4. Bursting Strength Wet (kpa): ≥200. Shape: we can cut and hole as your request. Ash (%): 49. Micron Rating (μm): 0.6-0.8.

Model Number:  SCP-336. Size(mm):  1210*2420MM,600*1220MM, other size as your request. Weight (g/m2):  1450-1600. Thickness (mm):  3.6-3.8. Flow Rate (p0.03bar s.50ml. 10cm):  50′-70′. Density (g/cm³):  0.42. Bursting Strength Wet (kpa):  ≥180. Shape:  we can cut and hole as your request. Ash (%):  47. Micron Rating (μm):  0.2-0.45.

Model Number:  SCK-111. Size(mm):  1210*2420MM,600*1220MM, other   size as your request. Weight(g/m2):  1100-1200. Thickness(mm):  3.7-4.0. Flow   Rate (p0.03bar   s.50ml. 10cm), 50”–1’30”. Density(g/cm³):  0.29. Bursting   Strength Wet (kpa):  ≥950. Shape:  we can cut and hole as your   request. Ash(%):  <1. Micron Rating (μm):  45-62.

Model Number: SCP-112. Size (mm): 1210*2420MM,600*1220MM, other  size as your request. Weight (g/m2): 950-1000. Thickness (mm): 3.4-3.6. Flow  Rate (p0.03bar  s.50ml. 10cm): 50”-1’30”. Density (g/cm³): 0.28. Bursting  Strength Wet(kpa): ≥900. Shape: we can cut and hole as your  request. Ash (%): <1. Micron Rating (μm): 40-50.

Automatic filter press for water treatment

Fully automatic membrane filter press
