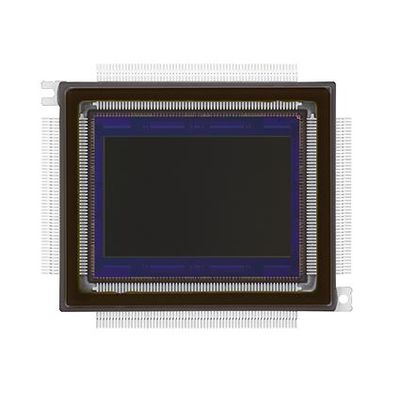

Capturing detail 125 times greater than in full HD resolution, the LI8020SA CMOS sensor from Canon offers remarkably high 250 MP resolution to uncover more detail than ever before. This innovative, APS-H format sensor leverages a square pixel arrangement of 1.5µm x 1.5µm pixels, achieving ultra-high resolution in a compact design for use in a wide range of applications. Discover new possibilities in unparalleled resolutions with the LI8020SA CMOS Sensor from Canon.

By incorporating close to the same number of pixels as photoreceptors in the human eye, the Canon 120MXS CMOS sensor delivers ultra-high 120 MP resolution in a compact design. At the same time, pixel-level innovations allow for faster readout speeds with lower noise ratios at 9.4fps – or higher when reducing the amount of readout lines. Uncover the finest details and find new clarity in industrial vision with the 120MXS CMOS Sensor from Canon. This CMOS sensor is available in monochrome (120MXSM), color (120MXSC), and with a specialized RGB-NIR color filter array (120MXSI).

The LI8020 Evaluation Kit Features: Equipped with APS-H 250M pix CMOS sensor. Ultra-high resolution imaging with 250 million pixels (Frame rate up to 5.0 fps). CoaXPressReady. High-speed data transfer (4 x 6.25 Gbps); 3.0 m maximum cable length (operation result) * It depends on the material of the cable. Shooting size changing function. Vertical decimation function for decimating and outputting vertical pixels. Improved shooting frame rate. Partial extraction function for extracting and outputting one subject area from all pixel areas. Reduces image data that is not subject to image capture and improves frame rate (* Vertical only).

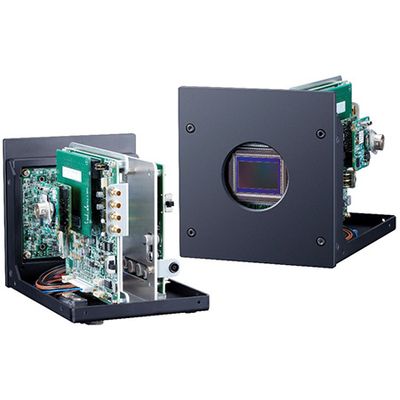

The Canon 120MXS Evaluation Kit allows integrators and end users to assess sensor performance and provides assets for image system designers to help accelerate development time. The Evaluation Kit features a camera with a pre-installed 120MXS 120 MP CMOS sensor with raw data serial output via a USB 3.1 (Gen 1) interface. The evaluation kit has an open architecture design and gives developers the option to embed processing and software with the on-board ARM and FPGA*.

The Canon ML100 provides you with high sensitivity, top-of-the-line image quality, and reduced form factor. However, despite its smaller size, the camera’s functionality remains exceptionally robust. Select either the EF or M58 lens mount. This high-end, industry-focused camera comes standard with a CoaXPress interface.
