Care-Well Engineers products

Care-Well Engineers offers most efficient and economic range of Positive Displacement Rotary Gear Pumps under the brand name "CARE-WELL PUMPS" having special features like simple & compact design, low noise, high efficiency, easy to maintain, reliable and low cost. "CARE-WELL PUMPS" Rotary Gear Pumps are ideal for Chemical, petrochemical, Food, Oil, STEAL, Refining, Paints, Dairy, Sugar & Pharmaceutical Industries etc. The Pumps are useful for handling viscous liquids i.e., all kinds of oils, viscous chemicals & food applications etc.

"Care-Well" gear pump type "CWSS" is a self-priming, bi-directional & positive displacement rotary pump. Model “CWSS” having all Stainless Steel (SS-316) investment casting. These pumps have SS-316 Nitride Gear & Shaft to give Long servicelife & trouble-free operation. Teflon coated DU bush & “GFO” pack Sealing gives zero Leakage. These pumps are easy cleanable, easy maintainable in three-piece construction. The back cover can simply be removed by four Dom-Nut. The right-angle mounting brackets facilities foot mounting of the pump on base plate with electric motor of appropriate ratings.

CARE-WELL ENGINEERS offers “CARE-WELL PUMPS” brand internal gear pump Model “FIG” (Fuel injection Internal Gear Pump, LDO Gear Pump, Burner Firing Gear Pump, Boiler Firing Gear Pump, FIG Pump, HSD Gear Pump, Diesel Filling Gear Pump) which is high precision and fuel pressuring type positive displacement internal gear pump which prepared by graded cast iron. Nitrated Gear& shafted rotor gives better performance with closed tolerance to give long life. Model “FIG” is flange mounted. These pumps are self-priming type produces maximum; vacuum determined by the cavity between the gear teeth. These pumps modified profile teeth cutting to give accurate capacity within the pressure range. These pumps are capable to run liquid up to 500 CST viscosity and up to temperature 200ºc. The sealing is done with mechanical seal to ensure zero leakage.

CARE-WELL ENGINEERS offer “CARE-WELL PUMPS” brand gear pump Model “CWRN” (External Gear Pump - Positive Displacement Pump - Rotary Twin Gear Pump) Which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model “CWRN” having three-piece construction it can be easily cleanable and maintainable. These pumps having a double helical refined gear and hardened grind finished shaft, double helical gear prevent axial load & side thrust which is help to increase life and performance of pump.

Care-Well Engineers offers most efficient and economic range of Positive Displacement Rotary Lobe Pumps under the brand name"CARE-WELL PUMPS" having special features like simple & compact design, low noise, high efficiency, easy to maintain, reliable and low cost. "CARE-WELL PUMPS" Rotary Lobe Gear Pumps are ideal for low viscosity, high viscosity, solids Particles. The Pumps are useful for handling viscous liquids i.e. all kinds of Dairy, Bakery, Beverages, Pharma, Cosmetics, Chocolates, Penut butter etc.Solid stainless steel, ASI 316 quality, pump head, rotors and shafts. Food quality rubber covered and plastic rotors are also available.

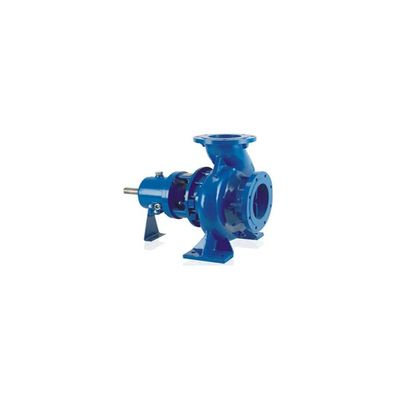

CARE-WELL “CWPCF” Series Centrifugal Chemical Process Pump are Horizontal, Single-stage, Volute casing pumps with dimensions and nominal ratings. The design permits dismantling of the complete bearing unit towards the drive end, without the pump casing having to be disconnected from the piping. If a spacer coupling is used it is also unnecessary to disconnect the motor. These are single stage, single suction, horizontal shaft type. They are made in accordance with DIN 24255. Models are available to operate at 1450 rpm and 2900 rpm.

CARE-WELL PUMPS offers High Pressure Multistage Boiler Pump. These pump consists of a number of ring section diffuser casings bolted suction and delivery casing. Latest casing techniques ensure smoothness of hydraulic passages resulting in high efficiency and reliability under hazardous conditions. The enclosed impellers of the radial flow type are provided with balancing holes to balance the hydraulic axial thrust. The shaft is protected by shaft sleeve from wear in stuffing box area. The stuffing box can be sealed by gland packing or by mechanical seal with minor modification. These pumps are suitable for coupling with electric motors, IC engines or steam turbine either directly or through belt drives.

CARE-WELL PUMPS offers Multistage Boiler FEED Pump. These pump consists of a number of ring section diffuser casings bolted suction and delivery casing. Latest casing techniques ensure smoothness of hydraulic passages resulting in high efficiency and reliability under hazardous conditions. The enclosed impellers of the radial flow type are provided with balancing holes to balance the hydraulic axial thrust. The shaft is protected by shaft sleeve from wear in stuffing box area. The stuffing box can be sealed by gland packing or by mechanical seal with minor modification. These pumps are suitable for coupling with electric motors, IC engines or steam turbine either directly or through belt drives.

CARE-WELL PUMP offers “CWMP” Mud Self Priming centrifugal pump. These series is added with multiple features. The pump casing is to be filled initially with the pumping liquid after its installation. The design of CWMP type pump allows Pumping out certain amount of mud, dirt & suspended solids. These pumps are suitable for handling water & non- corrosive liquids at ambient temperature. Pumps when properly installed and given proper care in operation and maintenance should operate satisfactorily for a long period. CARE-WELL PUMPS Offers Mechanical seal type As well as Gland Packing Options for CWMP series.

CARE-WELL Polypropylene Pumps are well designed for Handling of Corrosive Chemicals like Acids, Alkalis Solvents etc., Polypropylene Pumps are widely used in all Chemical Industries. Polypropylene Pumps are used in Chemical Processing, Transferring of Corrosive Chemicals, Loading and Unloading of road tankers, Effluent Treatment Plants, Re-circulation of Chemicals, Filter press in Dyes Industries, Electro Plating, De-scaling, Water Treatment, Scrubbing of Corrosive Gases. Our Wide range of Pumps & Quality of Pumps are reflected by customer appreciation and repeat orders. Polypropylene Pumps have the capacity and capability to accept and execute customer requirements. These pump can operate at 1440 rpm & 2800 rpm. Availabe in Horizontal As well as in Vertical series.
