Carltex International Inc. products

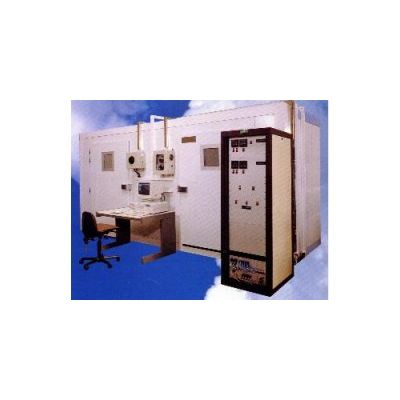

The SERIES 400 system, with SCAN 1000, is an integrated hardware and software package for data acquisition and supervisory control using personal computers. The flexibility, ease-of-use and power of the system has been proven in a range of applications including: Autoclave monitoring and validation. Environmental chamber monitoring and validation. Drug and food storage trials. Heat treatment monitoring. Battery life testing. Engine and automotive component testing. Pilot plant monitoring. Air conditioning and central heating product testing. White goods - domestic and commercial refrigeration product test. White goods - domestic and commercial cookers, stoves and heaters product test. Pump and compressor test. Bearing test. Building management system validation.

The HiTemp150 temperature logger is a rugged, submersible, battery powered, stand alone device which can be used to automatically record temperatures between -40 and 150°C. This all in one compact, portable, easy to use device is able to measure and record up to 32,767 temperature measurements. The HiTemp150 features a 2” rigid external probe with fast response time to ensure accurate temperature readings and is ideal for use in harsh environments. Its real time clock ensures that all the data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The HiTemp150 makes data retrieval quick and easy.

The  HiTemp150FP is a small, rugged, reusable temperature data logger specifically designed for deployment in harsh environments. The HiTemp150FP comes standard with a 24` flexible silicone rubber enclosed cable, 4` penetration style stainless steel probe, and 316 stainless steel body (other cable and probe lengths available through special order). With measurement range of -40°C to +150°C, the HiTemp150FP is perfect for use in autoclaves, medical and pharmaceutical labs, food preparation and processing plants, dishwashers, and other applications involving extreme temperatures.

The SQ1 Steam Quality Test Kit has been designed to comply with EN 285 with a single improvement to the methodology. It should be noted at the outset that EN 285 specifically allows alternative procedures, provided that they have been calibrated against the standard methods. Instead of the non-condensable gas test being as described in the standard, we provide a condenser system which we have found to be safer, more robust, easier to use (less subjective), and more repeatable. The objective is to separate non-condensable gases from steam and the disadvantage of the standard method is the subjective adjustment of steam flow to prevent localized boiling and therefore the collection of non-condensable gases from the water being used to condense the steam. By using a condenser, the steam does not come into contact with the water and eliminates this subjective and variable aspect.
