Carter Environmental Engineers Limited products

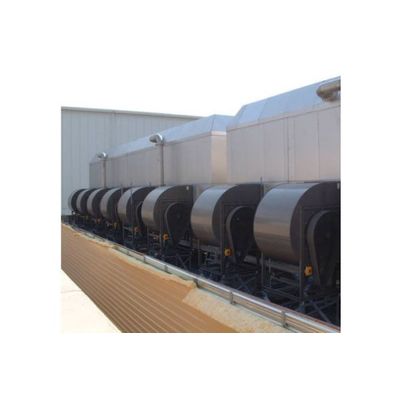

Carter Balmoral cooling tower is of the forced draught counterflow design incorporating belt driven, centrifugal fans located on the side of the tower at low level. The range covers water flow rates from 6m³/hr to 600m³/hr in the form of single or multi cell arrangements.

The Carter Buckingham Cooling Tower, is of the induced draught counterflow design, incorporating direct drive duct axial fans located on the top of the tower. The range covers water flow rates from 6m³/hr to 600m³/hr in the form of single or multi cell arrangements. The Buckingham towers are supplied with the following standard features:

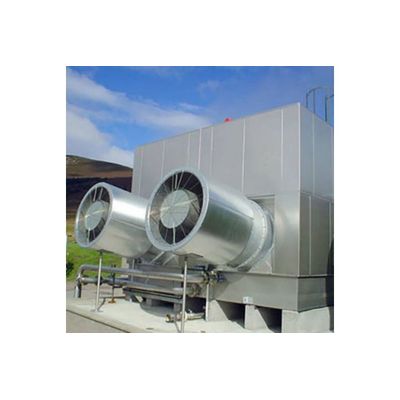

Carter Sandringham cooling tower is of the forced draught counterflow design incorporating direct drive duct axial fanset located on the side of the tower at low level. The range covers water flow rates from 6m³/hr to 600m³/hr in the form of single or multi cell arrangements. The Sandringham towers are supplied with the following standard features:

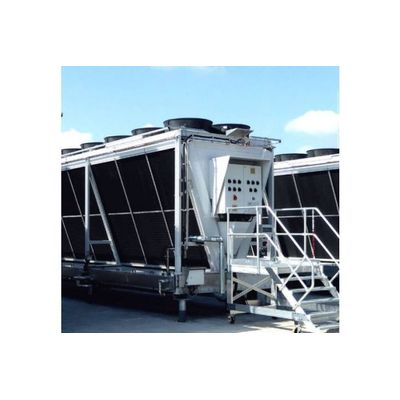

Carter adiabatic coolers do not create an aerosol or wet the surface of the coil. Adiabatic cooling is achieved by mains water distributed over an evaporative cooling media through which the incoming air passes through. The cooled dry air then passes onto the coil for cooling. This method in turn prolongs the coil life by reducing coil fouling and reduces the need for expensive mains water treatment. Units are available in one to four fans as single coolers as standard. Optional extras include attenuation package, stainless steel casing, winter coil heater package, skid mounted cooler and pump sets.

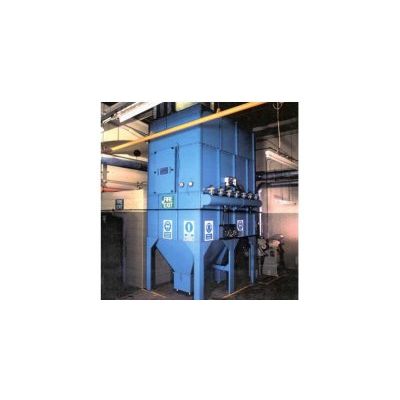

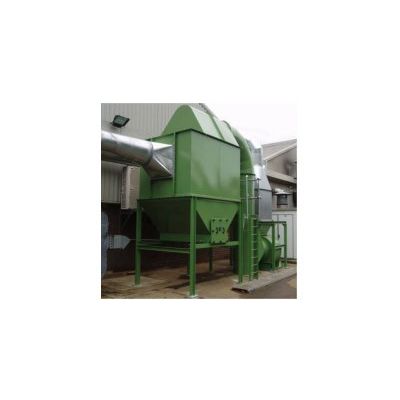

The filters are of modular construction to provide a wide arrangement of filter footprints to suit limited space constraints. The standard range includes Bag, Cartridge and Pleated Filter Bag media design.

The Carter Oil Mist Collector range covers air volumes from 800m³/h - 60,000 m³/h. Carter Oil Mist Collectors provide highly effective mist removal, returning air to the workshop with emission levels of less than 0.3mg/m³, whereas HSE guide levels EH40/2 gives an 8hr TWA exposure limit for oil.

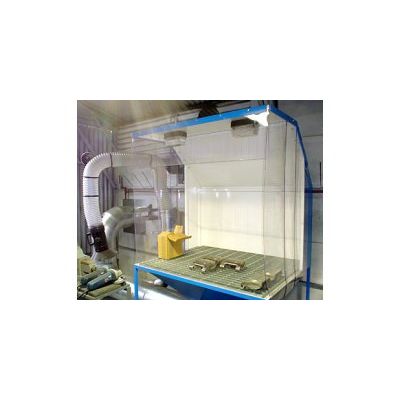

Down-draught benches, fettling booths and walk-in laminar flow booths are available in a large range of sizes and designs. The Carter range of benches and booths provide a solution to each and every dust extraction application.
