Casappa S.p.A. products

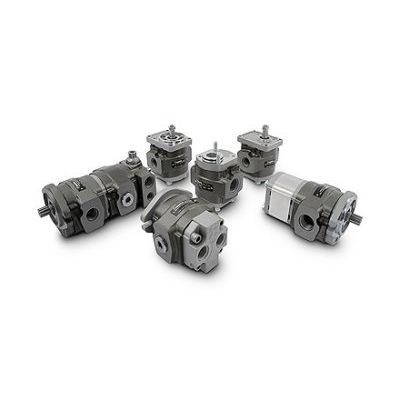

Gear pumps and motors built in three pieces with an extruded body in high resistance aluminium alloy.The wide choice of shafts, flanges and ports, in compliance with all international standards (SAE, DIN and EUROPEAN) allow for their use in an infinite variety of applications. Displacements from 0.07 in³/rev (1,07 cm³/rev) to 5.56 in³/rev (91,10 cm³/rev) available in groups 10, 20 and 30 Max. peak pressure up to 4350 psi (300 bar) Max. speed up to 4000 min-1

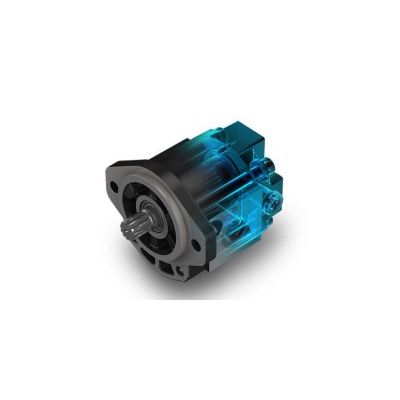

Gear pumps and motors built in three pieces with cast iron body.The new gear pumps and motors `PH` series is an evolution of the `POLARIS` series.`POLARIS PH` has a new body made of cast iron to have higher operating parameters and keep the full POLARIS versatility regarding shafts, flanges, ports and built-in valves.This project is targeted for forklifts, skid steer loaders and all those applications where traditional aluminium pumps are being pushed close to their limits.The possibility to mate the body with the cast iron covers further reduces noise levels, in addition to increasing strength.Displacements from 1.16 in³/rev (19,09 cm³/rev) to 2.01 in³/rev (33,03 cm³/rev) Max. peak pressure up to 4350 psi (300 bar) Max. speed up to 3500 min¹

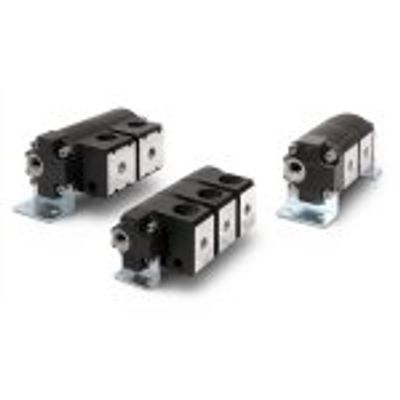

Gear flow dividers made of high resistance aluminium alloy.These components can be used as flow equalizers, flow dividers and pressure intensifiers.Displacements from 0.13 in³/rev (2,14 cm³/rev) to 2.01 in³/rev (33,03 cm³/rev) available in groups 10 and 20 Max. peak pressure up to 4060 psi (280 bar).

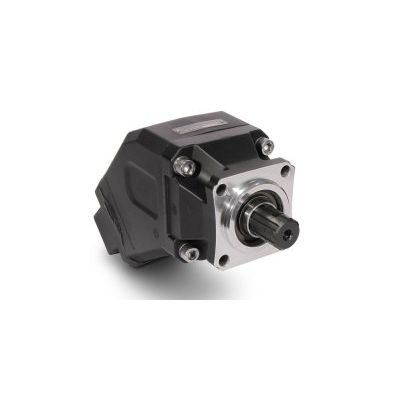

Fixed displacement bent axis piston pumps. STRADA pumps are ideally suited for PTOs applications in vehicles.Displacements from 2.49 in³/rev (40,9 cm³/rev) to 6.71 in³/rev (110 cm³/rev) available in groups 32 and 37.Max. peak pressure up to 5800 psi (400 bar)Max. speed up to 2950 min-1.

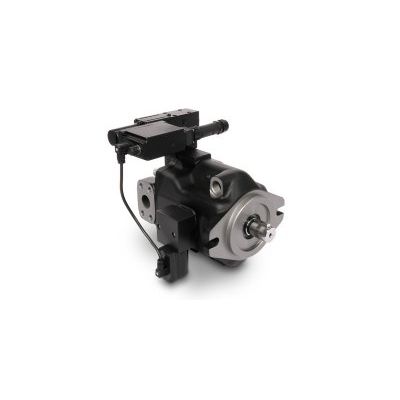

Variable displacement axial piston pumps swash plate design.PLATA pumps are ideally suited for medium and high pressure open circuit applications.Displacements from 1.74 in³/rev (28,49 cm³/rev) to 5.37 in³/rev (87,9 cm³/rev).Max. peak pressure up to 5075 psi (350 bar).Max. speed up to 3000 min-1

Double acting hand pumps providing flow in both directions of lever movement. Displacements from 0.73 in³/cycle (12 cm³/cycle) to 2.75 in³/cycle (45 cm³/cycle). Max. pressure 4568 psi (315 bar). New interchangeable modular design for maximum flexibility. Same pumping group with or without reservoir. Suitable for auxiliary or emergency applications.
