Cast Iron Armature Bulgaria SA products

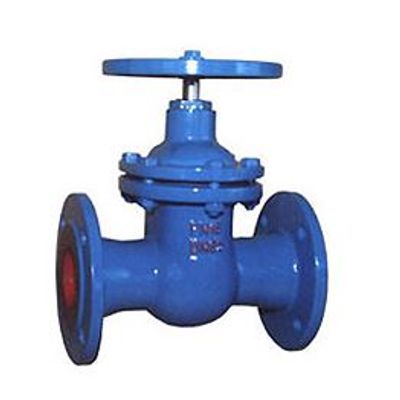

The valves are ? pipeline fixture for letting out, stopping, and fluid stream regulation, which shutting device moves perpendicular towards the sealing rings (the saddle). They are implemented as shut-off devices, mounted on pipelines, through which are transported steam, water, air and other non-aggressive liquids, at a pressure not exceeding PN16 and Tmax 200 °?. The globe valves provide possibility for changing of the gland packing under pressure. In the case of full-open valve the stem provides sealing with the bonnet.

The valves are ? pipeline fixture for letting out, stopping, and fluid stream regulation, whose shutting device moves perpendicular towards the sealing rings (the saddle). They are implemented as shut-off devices in refrigeration installations, through which is transported liquid or gaseous ammonia, at pressure not exceeding PN 16. This type can be used in other cases, where higher density of thesealing surfaces and the gland chamber are required. There is possibility for change of the gland packing under pressure. In case of full open valve the Teflon ring of the stem provides sealing with the bonnet. Operation temperature is from -40°? to 120° ?.

The valve is a pipeline fixture for letting out, stopping and fluid stream regulation, whose closing executive body moves across the fluid direction. The gate valves are mounted on pipelines, through which is transported water or non-aggressive liquids at a pressure not exceeding PN 10 or PN 16 and ? max = 110° C.

The valve is a pipeline fixture for letting out, stopping and fluid stream regulation, which closing executive body moves across the fluid direction. The gate valves are mounted on pipelines, through which is transported water or non-aggressive liquids at a pressure not exceeding PN10 and ? max = 110° C.

The valve is a pipeline fixture for letting out, stopping and fluid stream regulation, which closing executive body moves across the fluid direction. The gate valves are mounted on pipelines, through which is transported water or non-aggressive liquids at a pressure not exceeding PN10 and ? max = 70° C.

The valve is a pipeline fixture for letting out, stopping and fluid stream regulation, whose closing executive body moves across the fluid direction. The gate valves are mounted on pipelines, through which is transported water, steam or non-aggressive fluids at a pressure not exceeding PN16 or PN10 (for DN40 only) and temperature up to ???? 200° C.

The valve is a pipeline fixture for letting out, stopping and fluid stream regulation, which closing executive body moves across the fluid direction. This type of rubber wedge gate valves is used as shut-off device, mounted on pipelines, through which is transported drinking water or non-aggressive fluids under pressure not exceeding PN10 or PN16 and ?max 70°C. The product is certified for contact with drinking water.

The service valves are used as closing devices installed on polyethylene pipelines carrying water and non-aggressive fluids with pressure PN16 and Tmax 70°C. The closing device is EPDM rubber wedge. The product is certified for contact with drinking water. Nominal torque moment at closing-opening is 50 Nm and maximum - 100 Nm. The valves from this series are cost effective and time saving as they do not require any special instrument for installation.

The valve is a pipeline fixture for letting out, stopping and fluid stream regulation, which closing executive body moves across the fluid direction. The valve with rubber wedge is used as closing device for pipelines carrying potable water or non-aggressive fluids under pressure PN10/16 and T??? 70°?. Sealing on closing is accomplished by the wedge rubber in the body, which has smooth transition. The product is certified for contact with drinking water.

The valve with rubber wedge is used as ? closing device for pipelines carrying potable water or non-aggressive fluids under pressure up to PN16 and T??? 70°?. The closing device – the wedge is provided all with rubber EPDM.
