Cat Pumps products

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with a brass manifold, 304 stainless steel valve assemblies, solid ceramic plunger and standard NBR (Buna-N) seals and O-rings. The 1CX is the perfect fit for misting applications that require 0.5 GPM or less. With seals that run thousands of hours before requiring any servicing, the 1CX is small but has the same life expectancy as our industrial products. This ultra-compact, direct-drive single plunger misting-cooling pump includes a pressure regulator for maintaining pressure with multiple nozzles. 1CX Series pumps couple to custom-designed 1/4 or 1/2 HP single-phase 60 Hz motors to fit in small spaces. There is a 50 Hz motor available as well. An optional pulse hose reduces pulsation and lowers the amp draw.

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with 316 stainless steel manifolds, 316 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings. Stainless steel 2SF Series pumps are hollow-shafted and designed to bolt directly to a 56C-face electric motor, providing an easy, compact installation.

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with 316 stainless steel manifolds, 316 stainless steel valve assemblies, solid ceramic plungers, and FPM seals and O-rings with specially blended PTFE high and low-pressure seals. We have designed our TEG pumps to handle Triethylene Glycol (TEG) up to 240°F (116°C). Our electric/engine-driven TEG pump product line has been field-proven in the most rigorous dehydration conditions and will meet Hazardous Air Pollutants (HAP) compliance and lower regulatory cost. The 1725 RPM permits multiple drive options, including direct drive with a bell housing and flexible coupling, clutch or belt drive.

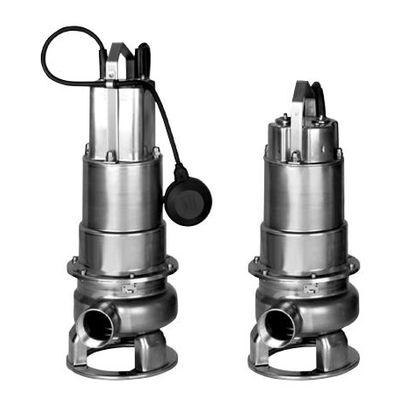

304SSL construction offers corrosion resistance and increases operating life over typical cast iron models. Unique bulge formed components eliminates harsh radius and welds and provides greater efficiency and durability. Lubricated double mechanical seal offers dependable performance with a variety of liquids. Air filled, continuous-duty motors for reliable, long term operation. Single phase motor features permanent split capacitor and thermal protection with automatic reset for added protection and extend motor life. Versatile, reliable operation whether fully or partially submerged. Multiple sizes from 1/2 to 2 hp offers application flexibility. Sealed float switch for automatic operation.

Cat Pumps offers a complete line of pumps that meet the ATEX 2 directive for pumping applications located in potentially explosive atmospheres. Pump compliance with the ATEX directives is common in industries such as petrochemical, chemical, oil & gas, and bio-fuels. Under the appropriate ATEX directive, equipment is designated by group, category and zone. Cat Pumps has been certified as ATEX 2 compliant, which also covers the ATEX 3 requirements.

This triplex (three piston rods) positive displacement, reciprocating piston pump is constructed with chrome-plated brass manifolds, 304 stainless steel valve assemblies, and chrome-plated 304 stainless steel sleeves and cylinders. Multiple piston cup and seal configurations are available with NBR (Buna-N) O-rings. The lower RPM belt drive design provides strong inlet suction and long-lasting pump and seal life.

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with 316 stainless steel block-style manifolds, 316 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings. The "K" indicates the pump is built with a unique flushed inlet manifold that permits an external liquid to provide added cooling for high-temperature fluids and lubrication for low-lubricity liquids like DI (deionized) water. When used with the 990663 Flushing Assembly, the package offers a self-contained fluid source for pumping through the flushed manifold.

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with a brass manifold, 304 stainless steel valve assemblies, solid ceramic plungers, and NBR (Buna-N) O-rings with specially blended PTFE high and low-pressure seals for high-temperature applications. The 1725 RPM permits multiple drive options, including direct drive with a bell housing and flexible coupling, clutch or belt drive.

Cat Pumps offers a wide selection of elastomers and manifold materials to meet a large variety of chemical application needs. Cat Pumps products work best with fluids with a pH level between 5 and 9 and a viscosity less than 500 cP (centipoises). Please contact our technical support team for selection assistance If you are working outside of these ranges.

Technical Specifications. Max Flow: 0 gpm / 0 lpm. Max Pressure: 0. Inlet Port Size: 0. Discharge Port Size: 1 1/2" NPT(F). RPM: 0. Drive Type(s): Direct. Material: 304 Stainless Steel. Industrial Duty, Long Lasting, Dependable Pumps.
