Cavli Inc. products

Cavli C-Series modules are designed for substantial field life and minimal field support, making them ideal for IoT product makers looking to quickly model and launch cellular devices in multiple segments and geographies worldwide. The compact design, network switch over & fall back options and easy global deployment makes C-Series line of modules a favorite among IoT OEMs.

C16QS is an LTE Cat 1.bis module that complies with 3GPP release 14 specifications, specifically designed for IoT and M2M applications. It offers support for optional integrated GNSS, making it well-suited for location tracking applications. Additionally, it provides the option of an integrated eSIM, enabling global connectivity through the Cavli Hubble Device and connectivity management platform.The C16QS module is available in five variants tailored for specific regions: C16QS-EA for EMEA and APAC regions, C16QS-NA for the North American region, C16QS-LA for the Latin American region, C16QS-AN for the Australia and New Zealand regions, C16QS-WW for Global usecase. It maintains pin compatibility with Cavli C42GM and C42QM modules. With its focus on low power consumption, the C16QS module is an excellent choice for IoT applications such as e-mobility, asset tracking, POS devices, telematics, and more.

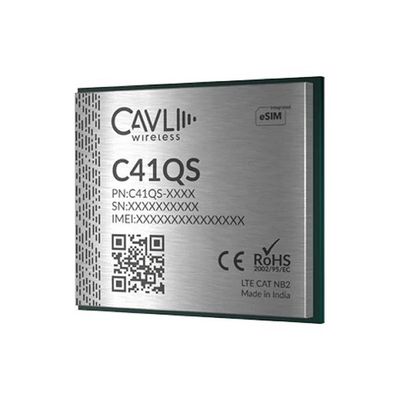

C41QS is an LTE Cat NB2 Module compatible with 3GPP E-UTRA Release 14 standards supporting a wide array of frequency bands making it usable globally while consuming very low power. The module comes in a compact form-factor of 17.7mm x 15.8mm x 2.0mm ideal for size constrained applications. The module supports an optional integrated GNSS, and eSIM enabling Global Connectivity and Device management features powered by Cavli Hubble platform. C41QS is ideal for applications that demand low space, low power consumption and aggressive pricing. It is suited for applications such as smart metering, smart parking, sensor and monitoring applications etc.

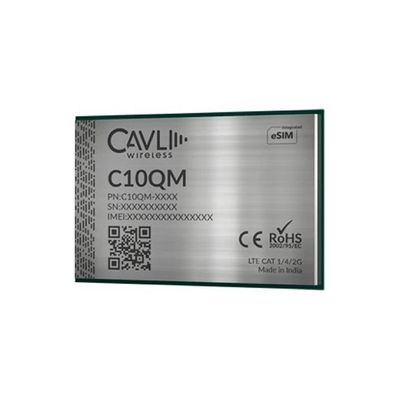

C10QM is a series of LTE Cat 1 module, designed for IoT and M2M applications, that support 3GPP release 10. With its LGA form factor, it offers pin compatibility with the C10GS LTE Cat 1/Cat 4 module, allowing for flexible migration. The C10QM module features integrated GNSS with Qualcomm® IZat™ location technology Gen8C Lite, providing precise and reliable positioning through GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS. It supports VoLTE and SMS over IMS/SG/CS, along with a wide range of Internet protocols and industry-standard interfaces. The module comes in two variants: C10QM-EA for the Europe and Asia market, and C10QM-NA for the North America market. Additionally, with an optional integrated eSIM powered by Cavli Hubble platform, it offers global connectivity, reducing time to market. The C10QM module is well-suited for IoT applications such as asset tracking, e-mobility, data loggers, fleet management, and environmental monitoring.

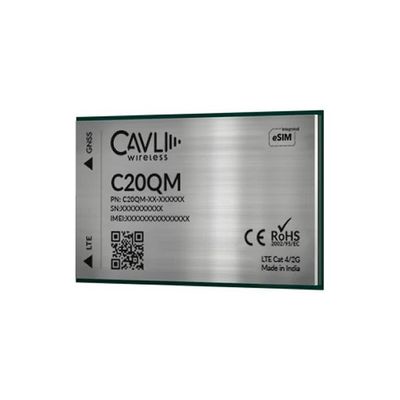

C20QM is a series of LTE Cat 4 modules, designed for IoT and M2M applications, that support 3GPP release 10. With its LGA form factor, it offers pin compatibility with the C10GS LTE Cat 4, C10GS LTE Cat 1/Cat 4 and C10QM modules, allowing for flexible migration. The C20QM module features integrated GNSS with Qualcomm® IZat™ location technology Gen8C Lite, providing precise and reliable positioning through GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS. It supports VoLTE and SMS over IMS/SG/CS, along with a wide range of Internet protocols and industry-standard interfaces. The module comes in two variants: C20QM-EA for the Europe and Asia market, and C20QM-NA for the North America market. Additionally, with an optional integrated eSIM powered by Cavli Hubble platform, it offers global connectivity, reducing time to market. The C20QM module is well-suited for IoT applications such as asset tracking, e-mobility, data loggers, fleet management, and environmental monitoring.
