CBF S.r.l. products
Flow Control Valves

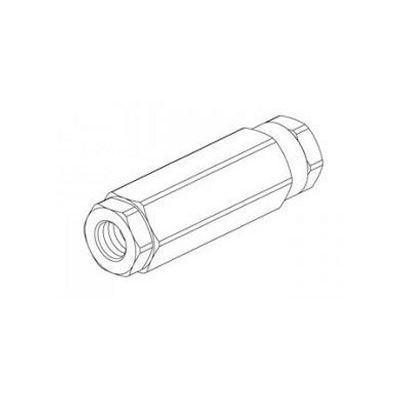

CBF - Model DFR - Flow Dividers
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C. Recommended viscosity 10 ÷ 420 cSt . Working temperature -20 ÷ +90 °C. Absolute filitration 25 μm.
Pressure Control Valves

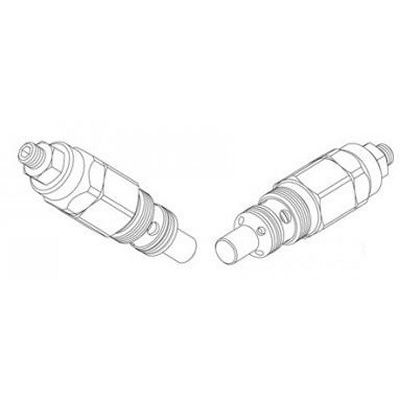

CBF - Model VLPD40-C - Cartridge Type Direct Acting Relief Valve
Maximum flow 40 l/min. Maximum pressure 350 bar. Installation torque 27÷30 Nm.
Check Valves
CBF - Model VBD-E - Bidirectional Check Valve
Maximum flow 30 l/min. Maximum pressure 350 bar. Cracking pressure V1->V2 8 bar. Cracking pressure V2->V1 0.5 bar.
CBF - Model VNR4008-C - Check Valve, Cartridge Type
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C, Recommended viscosity 10 ÷ 420 cSt, Working temperature -20 ÷ +90 °C, Absolute filitration 25 μm,
CBF - Model VSF / VSM - Shuttle Valve
Performance and calibrations are carried out by using hydraulic oil with 30 cSt a 50°C, Reccommended 10 ÷ 420 cSt, Working temperature -20 ÷ +90 °C, Absolute filitration 25 μm.
CBF - Model VS25-08C - Shuttle Valve
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C, Recommended viscosity 10 ÷ 420 cSt, Working temperature -20 ÷ +90 °C, Absolute filitration 25 μm.
Counterbalance Valves
CBF - Model OVC6012-C - Cartridge Type Pilot Assisted Overcentre Valve
Maximum flow: 60 l/min. Maximum pressure: 350 bar.Standard pilot ratio: 4,25:1.Pilot ratio upon request: 3:1 8:1 10:1.Tightening torque: 110÷120 Nm.
CBF - Model OVC60-C - Pilot Assisted Overcentre Valve, Cartridge Type
Pilot assisted overcentre valve, cartridge type; Maximum flow : 60 l/min. Maximum pressure : 350 bar. Standard pilot ratio : 4,25:1. Pilot ratio upon request : 3:1 8:1 10:1. Tightening torque : 110÷120 Nm.
CBF - Model VLP200P - Pilot Operated Relief Valve
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C. Recommended viscosity 10 ÷ 420 cSt. Working temperature -20 ÷ +90 °C. Absolute filitration 25 μm.
Solenoid Valves
CBF - Model EV102 - 2/2 Solenoid Directional Valve
Maximum flow 70 l/min, 18 gpm. Maximum pressure 350 bar, 5075 psi.
