CCI Piping Systems products

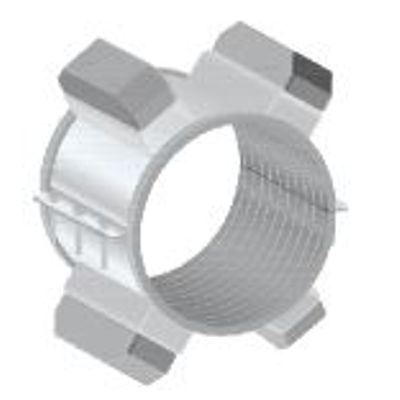

Injection molded from linear low density polyethylene. Provide and economical alternative to metallic casing spacers.

Designed for field installations where the carrier pipe has been installed in a casing. Involves simply wrapping the seal around the carrier pipe and casing; then compressing the adhesive strips together for a seal. Installation is completed when the stainless steel banding is installed and tightened.

Easily installed as the carrier pipe is pulled through the casing. The installation process is completed with the installation of stainless steel banding straps to the carrier and the casing pipe. This end seal has excellent chemical resistance and retains good flexibility.

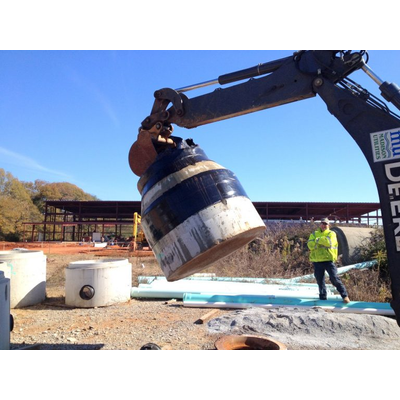

A wrap around heat shrinkable sheet that has been specifically designed for protection of buried and exposed manhole structures.

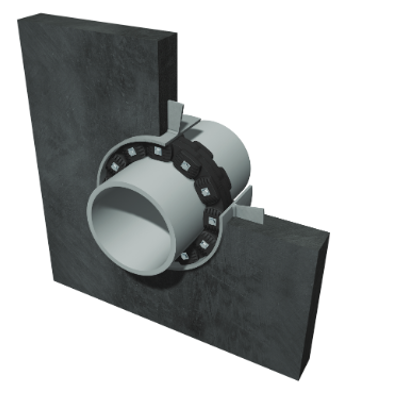

This versatile sealing link system can be utilized to seal the annular space of carrier pipe and casing pipe applications as well as wall penetrations of piping system. Wrap-It Link have excellent electrical insulation properties and may be used for pressure application up to 20 psig.

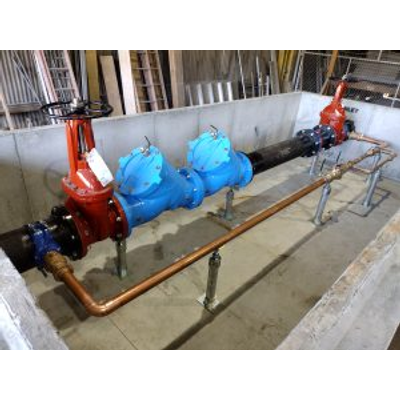

CCI Pipe Supports are designed for horizontal pipelines allowing for vertical adjustment to adequately support the pipe from the base structure. The base stand options will accommodate the users grade requirements. The variety of head styles provide versatility for various project support needs. In addition, CCI Pipe Supports are available in several corrosion resistant finishes.

The ArmorCote u-bolt coating has evolved from decades of proven technology. The cross-linked polyolefin material provides a coating with extremely high compressive strength and tremendous abrasion resistance.

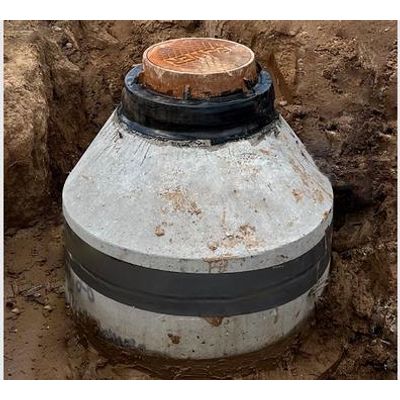

CCI Joint Seal is a cold applied tape engineered to seal external concrete joints providing a water-tight solution for joints on manholes, concrete pipe, square vaults, catch basins and other concrete structures. Joint Seal provides a water-tight solution while protecting the joints from inflow and infiltration.

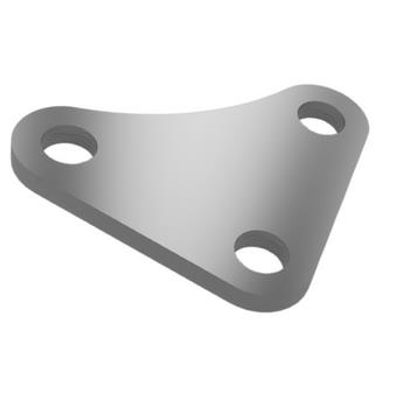

Flange lugs are made to be installed on the rear sides of ANSI Class 125 B16.1 and Class 150 B16.5 flanges to facilitate the spanning of tie rods across an unrestrained piping component. CCI flange lugs are also utilized with rubber expansion joints preventing uncontrolled expansion.
