Cerafiltec Germany GmbH products

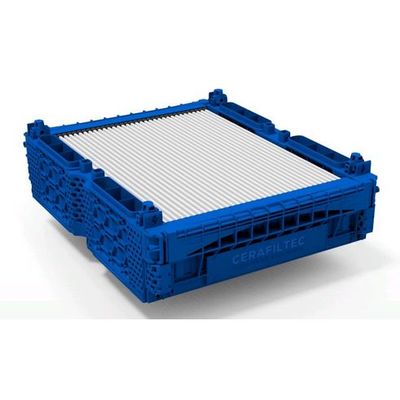

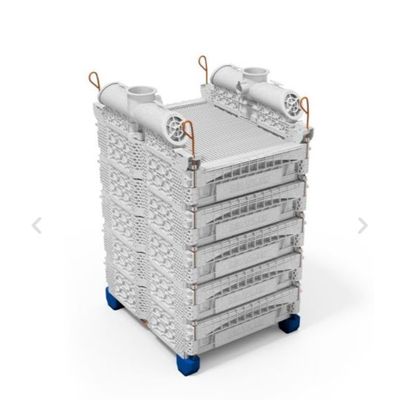

Filtration module with ceramic flat sheet membranes suitable for submerged applications. Multi ceramic plate configuration with exchangeable single ceramic plates. Internal filtered water piping. Module housing fully made of glass fiber reinforced resin – free of any steel parts. Suitable for harsh applications like groundwater, seawater, surface water, MBR, TSE and other challenging industrial waters . High flux operation up to 1,500 LMH

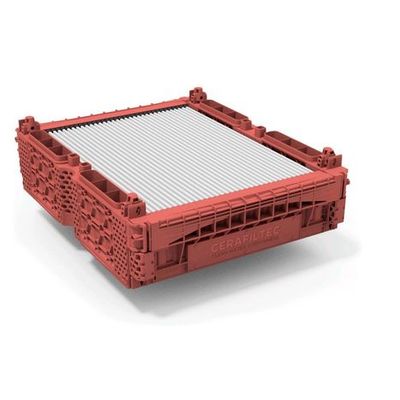

Filtration module with ceramic flat sheet membranes suitable for submerged applications. Multi ceramic plate configuration with exchangeable single ceramic plates. Internal filtered water piping. Module housing fully made of glass fiber reinforced resin – free of any steel parts. Suitable for hot water applications like deep groundwater, produced water, boiler and heat exchanger systems. High flux operation up to 1,500 LMH

The allrounders for sludge thickening applications.Filtration module with ceramic flat sheet membranes designed for sludge thickening processes and other applications with very high TSS concentrations. Multi ceramic plate configuration with exchangeable single ceramic plates. Extra large distance between single plates available in 3 standard configurations. Internal filtered water piping. Module housing fully made of glass fiber reinforced resin – free of any steel parts.

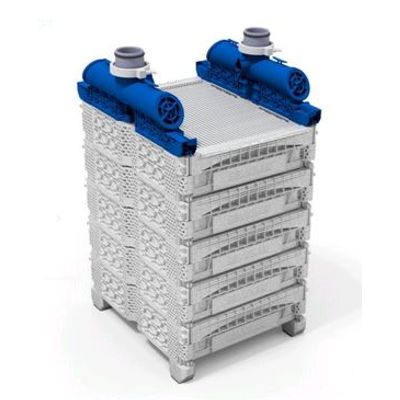

Essential to connect tower to standard header piping. Contains 2 header collectors, 2 plastic tri-clamps, 2 plastic pipe adapters, 4 keys and all necessary gaskets. To be installed on the top module of each tower. Simply to be connected via key lock system. Plastic pipe adapter available in different sizes, metric as well as ASTM standard. Plastic pipe adapter to be glued to standard hose or pipe sizes.

Essential to install tower on the tank bottom. Contains 4 corner feet, lifting rope and 4 keys. To be installed below the bottom (base) module of each tower. Simply to be connected via key lock system. Rope to be threaded through each module and to be connected on lifting device for installation of the tower inside the tank. Once tower is installed rope end to be fixed on header collector

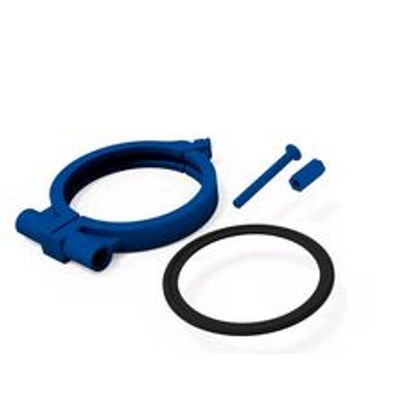

To be changed if visual defects are found or during general maintenance work. Disposable part: To avoid any leakages or product damages it is recommended to change every time maintenance or service work is performed.

Sample filtration for simple study of filterability and achievable filtered water quality.

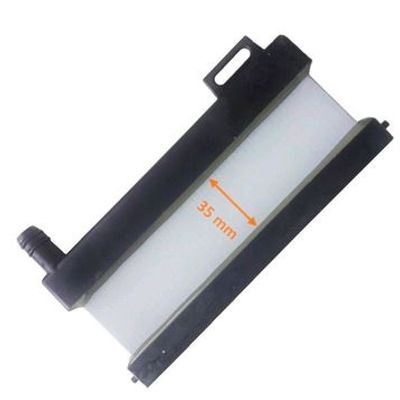

Portable unit for on-site tests. Sample filtration for simple study of filterability and achievable filtered water quality. Use of a small single ceramic flat sheet membrane plate with filter area of 0.01 m² enables to execute tests at very small sample volumes. Single test plate to be submerged into sample water jar (not within scope) or directly into existing treatment process . Simulation of real filtration process: filtration, backwash submerged, backwash on-air, air-scouring during filtration or backwash. Can be operated as batch or continuous process. Data recording of flow and pressure. Suitcase dimension and weight conform to airline baggage check-in standards.

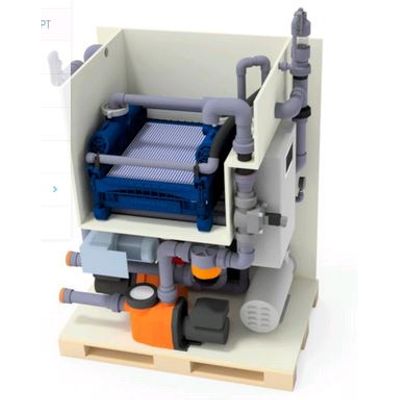

Pilot unit for long duration on-site tests for all water applications with dead-end filtration process. Use of one fully equipped module with 34 ceramic flat sheet membranes, equal to 6.0 m² (Module 6.0 S or Module 6.0 H). Simulation of real filtration process: filtration, backwash submerged, backwash on-air, air-scouring during filtration or backwash, sprinkler, chemical circulation, fast tank drain and re-filling. Backwash tank not included (external installation required). Continuous process operation. Data recording of flow and pressure.

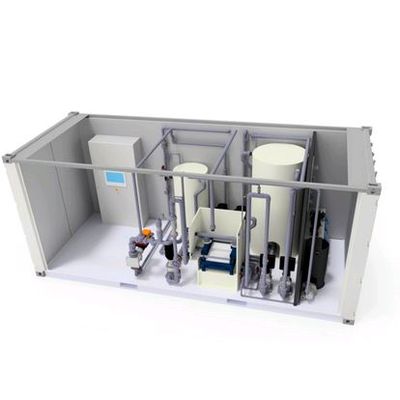

Pilot unit for long duration on-site tests for all water applications with dead-end filtration process. Use of one fully equipped module with 34 ceramic flat sheet membranes, equal to 6.0 m² (Module 6.0 S or Module 6.0 H). Simulation of real filtration process: filtration, backwash submerged, backwash on-air, air-scouring during filtration or backwash, sprinkler, chemical circulation, fast tank drain and re-filling. Backwash tank included. CapClean system included. Continuous process operation. Remote controlled and full data recording (SCADA system included).
