Products and Equipment from CETCO Energy Services

Well Testing SMART Data Package

Our SMART Data Package is a monitoring solution designed for harsh oil and gas environments. We provide an extensive array of field units that can even extend or coexist with your current operation. The wireless field units combine a sensor, rf transmitter and a long life battery, all packaged together and rated for hazardous area use.

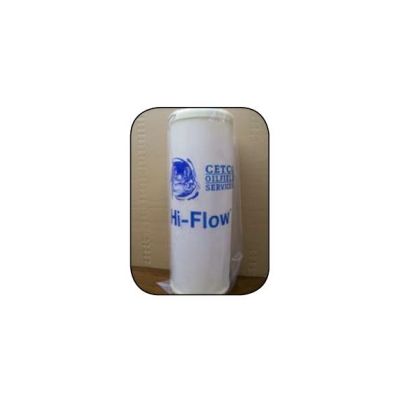

Hi-Flow Patented Oil Removal System

New to the industrial market: CETCO introduces Hi-Flow, a patented process for removing free or partially soluble oils from wastewater. Originally designed for treating high rates of produced water in the oilfield industry, this new smaller version of our Hi-Flow system is now available for applications in the industrial sector. The same physical and chemical characteristics used on the platforms were designed and engineered into a unit that can run 5-15...

Bentonite Clay-Based Flocculants

For over 30 years, our bentonite clay-based, dry, chemical flocculants have cleaned industrial wastewater in one simple step. Our cost-effective waste minimization process uses single reactant chemicals and is safe, simple, and easy to use for the removal of emulsified oils, heavy metals and suspended solids from wastewater.

Liquid Coagulants and Flocculants

CETCO Oilfield Services offers a wide range of liquid coagulants and flocculants that provide an economical yet highly efficient option in treating high volume waste streams. Our innovative liquid format of these products reduces operator involvement by allowing for easy automation of the entire treatment process. We developed these easy to apply line of products especially for the removal of emulsified oils, suspended solids, insoluble BOD/COD, and...

Organophillic Clay Media

With an extremely high surface area, our organophillic clays, PM-100 and PM-199, have the ability to adsorb up to 50% of their weight in oil and grease, making them extremely cost-effective media as opposed to activated carbon. These organically modified clays have a great affinity for oil and grease and other low-soluble and high-molecular weight organics. In addition to PM-100, CETCO Oilfield Services Company offers GAC (Granular Activated Carbon) and...

120 BBL Open Top Tank with Gas Buster

Sloped Bottom to Facilitate Cleaning. Manifold Allows Isolation or Mixing in any Compartment. Equalizer Valves in Compartments. Stainless Steel Laser Cut BBL Markers.

120 BBL Sand Trap

Features: Sloped Bottom to Facilitate Cleaning. Suction Manifolds Allow Fluid Removal from Any or All Compartments. Safety Walkway and Handrail.

2-9/16” 15M Dual Choke Gate Valve Manifold Skid Mounted

Two Tool Boxes with the Following Equipment: Two Gauges 0 - 15,000 lbs. Two Gauges 0 - 20,000 lbs. Four 9/16” Auto-Clave Valves with. Male x Male Adapters. Two Positive Bonnets with Snap Rings with. 9/16” Auto Clave. Eight Bonnet Seals. Four 2” Adjustable Stems. Four 1” Adjustable Stems. Four 2” Adjustable Seats. Four 1” Adjustable Seats. Two 2”x1” Adapaters for Seats. 8-Snap Rings. Two 2”x1” Indicators. Two Wrenches for 1” and 2” Seats. Four Packing...

Dual Choke Manifolds

Equipment Specifications: 3” Dual Choke Plug Valve Manifold. Full-Opening and 15M Working Pressure.

60 BBL Open Top Tank

Sloped Bottom to Facilitate Cleaning. Manifold Allows Isolation or Mixing in any Compartment. Equalizer Valve in Compartments. Stainless Steel Laser Cut BBL Markers.

Dual Pod Filter Units Skid Mounted

Maximum Flow Rate 285 GPM. 3” Male Camlock on Outlet & Female Camlock on Inlet. Each Pod Takes Nineteen 30” Cartridges.

Nitrogen Pump Truck

Our mobile 180K unit can hold 3,000 gallons of liquid nitrogen, providing 10,000 psi working pressure, up 180,000 scfm per hour with flameless heat recovery. That's power we can bring right to your worksite.

High Rate Nitrogen Unit

Keeping up with the pace of technology is an NSC priority. This Compact Skid Unit is rated for 6,000 scfm at 10,000 psi and is capable of producing nitrogen gas at temperatures up to 200Â¾F. This means we can produce relatively high temperature in hazardous areas without a direct-fired source of heat.

Model 360K - Nitrogen Unit

Nitrogen Specialty specializes in providing nitrogen applications for the oil, gas, pipeline, shipping, petrochemical and refinery industries. Keeping up with the pace of technology is one of our top priorities. Our new High Rate Unit is rated 340 SCF at 10,000 PSI, and is capable of producing nitrogen gas at temperatures up to 200°F. This means we can produce nitrogen gas at relatively high temperatures in hazardous areas without a direct-fired...

Model 60K - Nitrogen Unit

Our smallest Skid Unit, this 60K is rated for 1,000 scfm at 10,000 psi and can produce nitrogen gas up to 200Â¾F. This gives a safe and reliable nitrogen source in hazardous areas without a direct-fired source of heat. This superb unit delivers nitrogen right where you need it with ease and dependability.

NPU1500 Nitrogen Membrane Unit

Equipped with a Control System which Monitors the Purity and Flow Pressure, and Automatically Adjusts the NP. Fully Containerized with No Disassembly. Oilfield Skid Mounted, with Lifting Rack Installed. 480 vac/3 phase 60 amps.

Land-Based Coiled Tubing Equipment

Whether the task entails drilling out composite plugs and frac sand, routine maintenance, remediation, jetting, or specialty applications, our Reeled Tubing Division has the Performance Experts and equipment to get the job done. We offer safe and efficient coiled tubing services along with state of the art coiled tubing equipment. We have the capabilities to handle even the most challenging jobs–jobs including horizontal clean outs and wells with surface...

Offshore Coiled Tubing Equipment

We have shown our commitment to quality by fielding the most advanced, state-ofthe- art equipment available. Manufactured by Hydra-Rig, Texas Oil Tools, Stewart & Stevenson, and Vanoil, our coiled tubing units and support equipment utilize proven designs that enable our personnel to work with confidence knowing that they can count on their equipment when they need it the most. We are currently running Hydra-Rig HR560 and HR680 injectors as well as Vanoil...

Hi-Flow Process

A simple and robust system that treats high rates of free oil in water, allowing the operator to discharge fluid back into the environment while maintaining compliance requirements.

CrudeSorb - Adsorption Media

This adsorption media is based on resin, polymer, and clay technologies. CrudeSorb® is extremely efficient at removing oil, grease, and soluble organics from water systems.

CrudeSorb MR - Mercury And Arsenic Adsorption Media

This media is based on organoclay technology like CrubeSorb but has been heavily modified to enhance mercury and arsenic adsorption through both physical removal and chemical bonding.

NEMOH - Nomadic Environmental Media

The NEMOH vessel is used for processing and retaining fluid in a subsea environment. It is remotely operated and can operate at depths exceeding 6,000 ft.

Bulk Oil and Chemical Treatment

CETCO Oilfield Services can remove bulk oil through gravity and flotation technologies.

CETCO MONARCH - Model CPI & SCPI - Oil Water Separators

Operation of the CETCO MONARCH CPI Separator is simple and efficient. Liquid flow is introduced into the CETCO MONARCH CPI separator via gravity or at a specific pressure. The CETCO MONARCH CPI Separator distributes flow and creates the necessary laminar flow for proper oil & water separation. The CETCO MONARCH CPI Separator and its internal CETCO MONARCH CPI Pack provides the necessary surface area to successfully separate oil from water...
