Chalmers & Kubeck products

The B320 Series bevel gear operators are rugged, fully waterproofed, and can be used for a variety of multi-turn applications, including gate valves, globe valves, and sluice gates. Ten models are available, offering torque ranges up to 12,000 ft-lbs (16,280 Nm), and thrust capacities up to 425,000 lbs (1,885 kN).

Provides quarter-turn valve and damper operation in a compact, lightweight, easy-to-mount unit. Ranges up to 1,200 ft-lbs (1,600 Nm) torque. The LY series is offered in three packages.

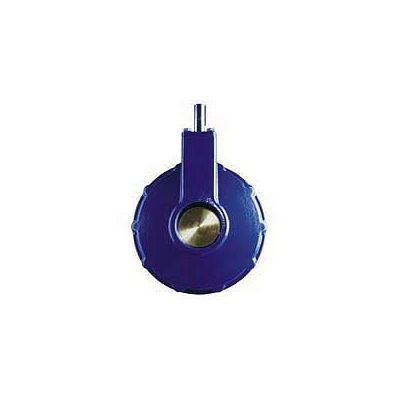

The HBC unit is a worm gear drive that may be used for any valve or device requiring 90-degree movement, especially designed for butterfly, plug, and ball valves. Eight models span the range.

The WTR Series Worm Gearboxes are designed to operate butterfly, ball and plug valves, or other devices requiring 90 degree operation. With close to 20 different models to choose from, its easy to find a unit that meets your needs. Output torque ranges up to 899,00 ft-lbs (120,668 Nm). Chalmers & Kubeck provides prompt delivery from one of the most complete valve actuator inventories. Custom control packages utilizing the latest technologies are our specialty. Valve adaptation and commissioning is only part of the services available. Talk to us about your networking and system integration requirements. Chalmers & Kubeck, Inc. also has the largest inventory of OEM replacement parts available anywhere to support the Limitorque WTR product. Strategically located, our knowledgeable, factory trained technicians, are available 24/7 to provide prompt repair service in both our shops or at the customer’s plant site.

Visit our website -https://www.candk.com/

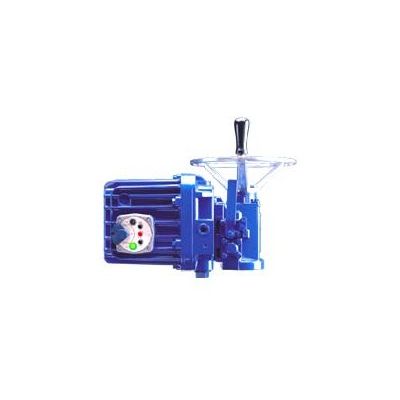

The most durable electric actuator around. With over 30 years proven service life, these heavy-duty units may never need to be replaced. Units range from 60,000 ft-lbs (81,00 Nm) torque or 500,000 lbs (2,200 kN) thrust. SB version available for applications where thermal expansion of rising valve stem may pose jammed valve risk. Chalmers & Kubeck has the largest inventory of OEM replacement parts available anywhere to support the SMB product. Strategically located, our knowledgeable, factory trained technicians, are available 24/7 to provide prompt repair service in both our shops or at the customer’s plant site.

Broad ranging modular design supporting all controls, options, and modular stocking programs with distributors. Serves applications ranging up to 60,000 ft-lbs (81,000 Nm) torque or 500,000 lbs (2,220 kN) thrust. Eight models span the range.
