Changzhou Optima Industry Co., Ltd. products
OPTIMA - Cable recycling system

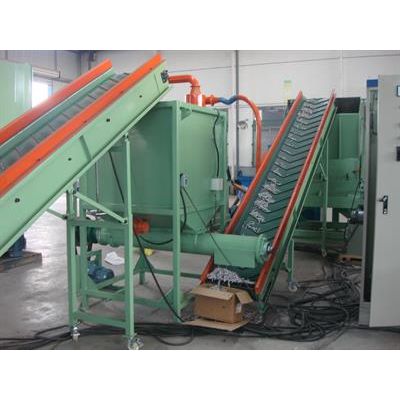

TD1000 split type copper wire crusher machine adopts advanced design, rational structure, electrical controlled by PLC and reliable operation. This machine includes double-shaft shredder, belt conveyor, 2nd crusher, helical elevator, 2 sets of vibrating and choosing separators, 2 sets of gatherers, hydraulic system and electrical control system. After be crushed, it can make sheath and core separated and gathered at different areas of the screen mesh’s surface. With airflow function and screen box straight shock excitation, the sheath and core be separated, and get copper particles, plastic pellets and mixture from different ports. Dust goes to dust gatherer through air flue. The vibrating screen controlled by transducer that can adjust frequency according to different conditions, meanwhile the air value controlled by adjusted valve. All these actions are be controlled by PLC, and the touch screen will show all parameters. This type of machine is easy to operation and maintenance, andOPTM - Cable stripping machine
Application scope: Rubber＆plastic sheathing cables which size from Φ10mm—Φ120mm Function: The outer sheath and inner conductor will be stripped by blade when waste cables cross through the middle guide wheel. The blades can be adjusted freely. Advantage: The top blade can be adjusted freely in operation. The running speed will be changed by 4 gears control. Machine Features: Double blades can split the wire from both sides; sheath and core are separated automatically.OPTM - Plastic crusher

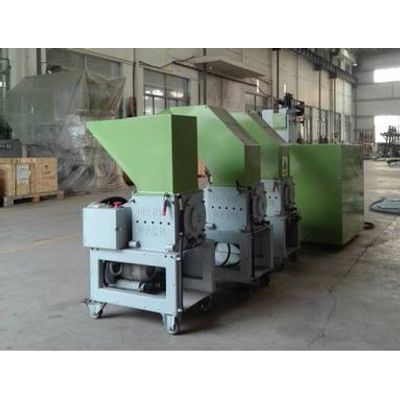

OPG800, OPGB1000 and OPGB1200 type of crushers especially developed for recrushing PP, PE, and PVC, etc, PET bottles, Plastic film and hollow container of refrigerator, television and bumper. Bearing is designed outside with 5 sets rotating blades. The function of crushing with water can enhance crushing efficiency and avoid overheating of the main body. The hydraulic oil bump with limited switch has been used when opening the machine and screen. The control part is out of power after oil cylinder stopped working when machine opened, which in order to check and replace new screen, also protect worker’s safety.OPTM - Plastic shredder
This serial of equipments with compact structure, feeding material cambered, save production space, working journey and feeding box are bigger than other shredders. It can be used to shredded harden plastic, rubber, fiber, sheet, timber, electrical element and cable which structure is solid. For example, sprue, head material, PET bottle, strawboard, circuitry board, wooden, plastic bucket and so on. Client can choose the machine according to the size of material or production capacity. Client should explain situation to factory that you want to crush engineering plastics, for example nylon, ABS and PC.Cable Wire Recycling Machine
Optima - Hydraulic Cable Shear Cutter Machine
Hydraulic cable shear cutter is used to cut big cable 180mm into short length. To ensure a smooth operation of your recycling plant, a lot of different recycling machinery is needed before, after, or in between the main machines. Here your will find several reliable recycling machines suitable for intermediate storage, feeding, cleaning, cutting, and more.
Optima - 120mm Cable Stripping Machine
The cable stripping machine is used to peel the plastic sheath from the copper conductor by its blades,diameter range from 10mm to 120mm, good for big cables.
Waste Tire Recycling Machine
Optima - Mobile Portable Tire Shredder
Moible and portable shredder to anywhere you need. The best solution to reduce shipping costs that can be put on a truck, check out the details and talk to us about your next project!
Optima - Mobile Tire Shredder
This TDF plant is different from mobile tire shredder TDF, this is designed for shredding waste tire into 50mm~150mm rubber blocks, shredder works with trommel screen, this works with disc classifier,so the capacity is increased a lot,the max. capacity up to 7 tons per hour. The function of disc classifier,to separate over size rubber chips from required size rubber chips. The blade adopts design of bigger smaller knives,it can cut more than 6000 tons of car tires or 4000 tons of truck tires. We have detailed drawing and video to tell you how to replace the blades if they are worn out. We purchase famous brands of motors and gearboxes to ensure the safety and long time life of the shredder.
Granulator Machine
Optima - Small Plastic Granulator/Crusher
This Economic Small Plastic Granulator is specially used for recycling of material head, leftover material, scraped injection molding and PET bottles. It can improve work efficiency matching with crusher.
Optima - Slow Speed Granulator
Slow Speed Granulator Steel structure body, cast steel blade rest and the material of the blade is Cr12MoV. The blade adopts stepped distribution which can improve the cutting force and enhance working efficiency. Movable screen and dismounting convenience are easy for cleaning and changing.
