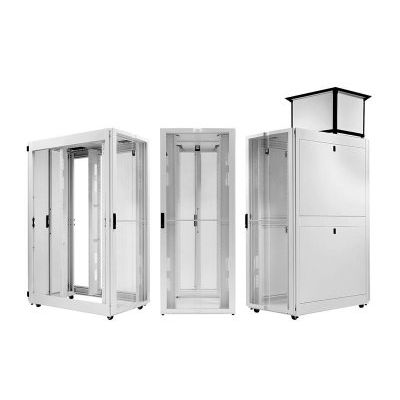

Available in a select set of industry-standard sizes, GF-Series GlobalFrame features two specific configurations that meet most application requirements. Standard GlobalFrame cabinets with perforated front and rear doors support front-to-rear airflow for hot aisle/cold aisle or aisle containment applications. High-density cabinets with perforated front and solid rear doors and a top-mount Vertical Exhaust Duct, guide hot exhaust air away from the cabinet to support a closed return application. Both configurations cover the basics with adjustable-depth Z-shaped mounting rails that help block bypass airflow around equipment, cable openings in the top panels that are large enough for high-amperage PDU power plugs, casters to easily position the cabinet and locking doors and side panels to secure equipment.

To meet these unique requirements, the N-Series TeraFrame Gen 3 Cabinet System has a unique frame design with dual front-to-rear supports, which creates a central space for rack-mount equipment with extra spaces along both sides of equipment for managing cables. Combine the N-Series TeraFrame® Gen 3 Cabinet System with accessories and use together with F-Series TeraFrame® Gen 3 Cabinet System, GF-Series GlobalFrame® Gen 2 Cabinet System and CPI Aisle Containment to create a solution that fits your requirements.

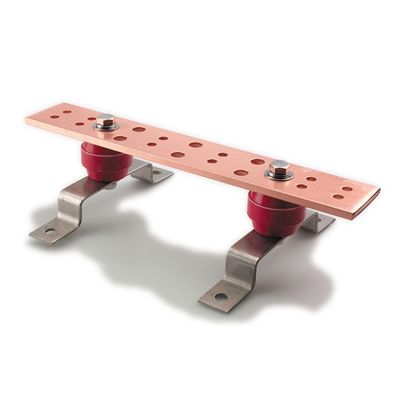

The CPI 13622 series Telecommunications Grounding Busbar (TGB) provides a central ground attachment point or telecommunications systems, computers and other equipment located in the data room. The CPI 40153 series Telecommunications Main Grounding Busbar (TMGB) provides a central ground point for telecommunications bonding backbones, equipment and the building`s ground electrode system. All CPI Grounding Busbars are UL Listed.

CPI`s Two Mounting Hole Ground Terminal Block provides a convenient way to attach ground wires to racks or cabinets and meets BICSI and ANSI/EIA/TIA two-hole mounting recommendations. Constructed of extruded, high-strength aluminum and accepts conductors ranging from #14 AWG through 2/0. Includes two #3/8-24 x 7/8"L stainless steel screws.

NEMA Type 4, for indoor or outdoor use, protects against dirt, rain, sleet, snow, splash and hose down with liquids. Stainless steel enclosures provide Type 4X protection ratings with an increased level of corrosion resistance.

NEMA Type 12 enclosure is for indoor use; protects against dirt and dripping and light splash of noncorrosive liquid.

NEMA Type 4 enclosure is for outdoor use and protects against dirt, rain, sleet, snow, splash and hose down with noncorrosive liquid.

Our most popular cable runway is designed for value conscious customers. The Universal Cable Runway offers the industry standard features you’ve come to expect. With the runway supported every 5’ (1.5 m), maximum load with minimal deflection is 132 lb/ft (59.9 kg).

Use the Standard Rack with vertical and horizontal cable managers to support interconnect and network equipment in telecommunication rooms, equipment rooms and data centers.
